Shanghai Color Digital Supplier Co., Ltd.
Professional Digital Textile Printing Equipment & Relevant Materials General Supplier
 |
| Place of Origin: | China |
| Brand Name: | SAER |
| Certification: | CE Certification |
| Model Number: | CSR2200(R) |
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Non-fumigation wooden box |
| Delivery Time: | withion 7 work days after get the payment |
| Payment Terms: | Western Union, T/T |
| Supply Ability: | 100 per month |
| Ink Type: | CMYK+WWWW/CMYK+FMFY+WW/CMYK+OR BL+WW | Condition: | New |
|---|---|---|---|
| Print Thickness: | 0-25MM | Automatic Grade: | Automatic |
| Plate Type: | Flatbed Printer, Digital Printing, Textile Printer, Screen Printer | Dimensions(l*w*h): | 2065*1705*1240mm |
| Usage: | Cloths Printing, Garment Printing, | Warranty: | One Year |
| Print Head: | With 8 Ricoh GH2220 Head | Tray Size: | 380*480mm 600*1200mm |
| High Light: | t shirt screen printing machine,direct to garment printer |
||

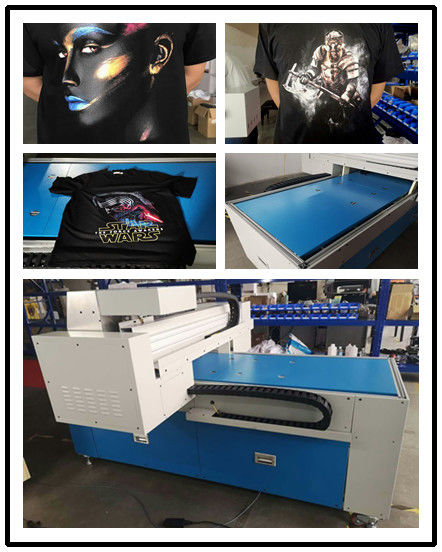

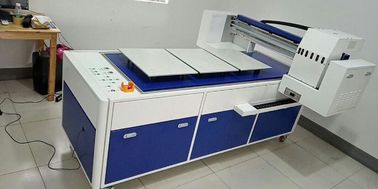

Product name: Hot sell direct to garment printer,factory supply lower DTG printer
Products Features:
a. Without edition, printer fast, low cost, a print, instant, low-power, pollution-free production technology, to break the limitation of traditional production of color and printing, can print any type.
b.The Y-axis adopts rack and rail transmission system, and the printing precision is higher and more stable.
c. The printing procedure is very simple and you only need to prepare a computer. An operator can perform the printing operation completely independently, saving manpower and material resources, and the method is simple and timely.The experience of the operating personnel is not high, as long as you understand simple image processing software.
d. the kind of quickness of playing board, you can see the effect in 10 minutes.
e. very suitable for color rich and gradient picture printing.
Parameters:
| Items | Technical Parameters | ||
| Model | CSR2200(R) | ||
| Print head | Print head | Ricoh GH2220 head | |
| QTY | 8 pieces | ||
| Ink | Color | CMYK+WWWW/CMYK+FMFY+WW/CMYK+OR BL+WW | |
| Ink type | Import pigment ink, good fastness,bright color | ||
| Ink supply | Negative pressure supply ink | ||
| Speed | Production models | A3 size 4pass | Dark color fabric 1min.14s |
| Light color fabric 58s | |||
| precision | A3 size 6pass | Dark color fabric 1min.52s | |
| Light color fabric 1min.27s | |||
| Tray | Standard configuration | Optional configuration | |
| Tray size | 380*480mm | 600*1200mm | |
| Tray Numbers | 3 | 1 | |
| Interface | USB | ||
| Computer system | CPU>2GHz, 64 bit CPU, RAM>8G, Windows7,Windows10 | ||
| Working environment | temperature:20℃-30℃, humidity:55％-70％ | ||
| Power supply | 210-230VAC 50/60 HZ 16A | ||
| Software | Rip software | ||
| Machine Dimension | 2065*1705*1240mm | ||
| Machine Weight | 260kg |
||
Questions:
1. Do you offer free printing samples?
Yes, we can print some samples to reference as customer's requirements.
2. If I have some technical problem, how can you help us to solve it?
Detailed description, photos or video will help our technician analyze the problem and give solution accordingly,will send an overseas engineer service to you.
3. Once there is something need to replace, what can I do?
We supply all the spare parts for the printer. If any part is broken, we will fix it or send you new parts after users send back the broken ones. We suggest that users order spare parts package for long time maintenance and fast replacement.
4. Can we send our technician to your factory for training?
Yes, you are warmly welcome to visit us for free training.
5. We want to become exclusive distributor of your machines?
We look forward to your close cooperation. After you order first machine and be capable of offering after service, then we can start to negotiate about distribution relationship. Thank you.
6. Can I customize the appearance color of the machine?
Yes, we can. we can support lots of special design model according to your request
7. How can assemble and install the machine myself?
Our packaging contains a complete set of installation tutorials, text and video manuals to help you master the machine.
Printing Samples:
Excellent After-sale Services:
1. Free exchange of new components
Our quality is guaranteed 100%, the spare parts can be replaced within one year free of charge includes the airfreight by express, except for the print head and some consumable parts.
2. Free online consultation
The technician will keep online. No matter what kind of technical questions that you may have, you would get a satisfactory answer from our professional technician easily.
3. Free on site installation and training
If you are able to help us with getting the visa and also would like to bear the costs involved like flight tickets, food, etc, we can send our technician to your office, and to give you a free installation and training for as long as you know how to operate it
