Large Format Calender Heat Press Machine 420mm Drum Diameter Oil Heating

Large Format Calender Heat Press Machine 420mm Drum Diameter Oil Heating

Large Format Calender Heat Press Machine 420mm Drum Diameter Oil Heating

Product Details:

Place of Origin: Shanghai,China
Brand Name: SARE
Certification: CE certification
Model Number: SRT420-3200

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: Negotiation
Packaging Details: Non Fumigation Wooden Box
Delivery Time: 7-12 working days
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 50 sets /Month
Contact Now
Detailed Product Description
Color&Page: Multicolor Type: Heat Press Machine
Applicable Industrial: Garment Shops,Printing Shops Power Supply: VAC 50~60 Hz ,380V
Drum Diameter: 420mm Temperature Control: 0-399
Machine Size: 2500mm*3900mm Speed: 80M/H (Manual Adjust )
Heating Type: Oil Heating Weight: 1800kg
High Light:

sublimation heat press machine

,

fabric calender machine

High quality large format calandra sublimation printing machine heat press machine



Brand Name  SARE
Model  SRT420-3200
Drum Diameter  420mm
Power Supply VAC 50~60 Hz ,3 Phase , 380V
Other Power Supply  Custom voltage by your special order
Rated Output 38KW
Speed 80M/H (Manual adjust )
Machine Size  2500mm*3900mm (L*W)
Weight  1800KG
Feeding Method  Top feeding or Under feeding
Drum  Oil 100%
Temperature Range 0-399
Other Size  Available
Warranty  One year



Product parameters :



1, Power:VAC 50~60Hz,3 Phase,380V,Power:38KW

2, Temperature adjust area:0~399(Automatic constant temperature control)

3, Speed adjust area:80M/H (Manual adjust)

4, Stainless steel heating system

5, Temperature Rise time:1 Hour,Heater Element :12 pcs

6, Machine Size:2500mm*3900mm(L*W)

7, Weight:1800kg

8, Feeding fabric: Top on the machine or Under the machine , you can select one model.



Features:



1. High-end composite steel roller with Teflon surface coated,Uniform drun temperature and lower energy consumption:



2. Equipped with adjustable pneumatic pressure system, adjust the pressure according to different transfer materials, the transfer speed is faster, the color is more vivid.



3. Self-devloped equipment control system,using high-end electrical components, high-precision parts, equioment transfer more stable.



4. The blanket is seperated autonmatically and the high-precision silicone pressure balance bar is used to adjust the pressure between the blanket and the roller to effectively reduce the tension of the blanket and extend the service life of the blanket.



5. The equipment operation is more convenient , labor saving, oil drum heating, 100% full heating oil.



Machine details :

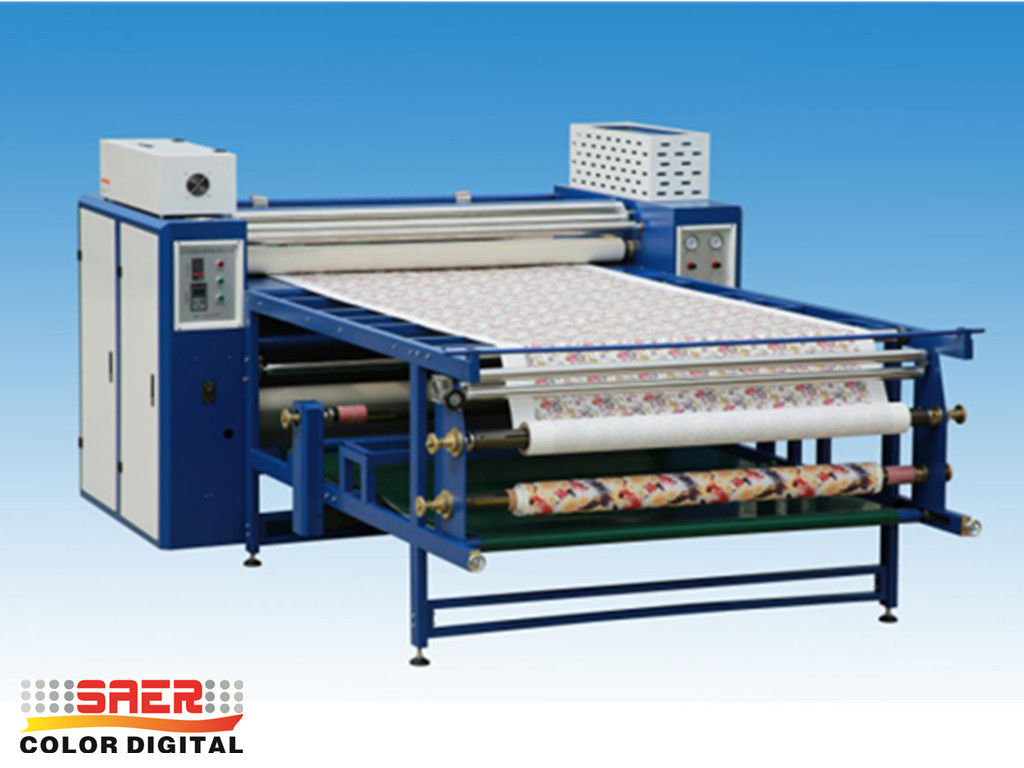

Large Format Calender Heat Press Machine 420mm Drum Diameter Oil Heating 0



Appliciton:
It is suitable for sublimation transfer large banners , flags,T-shirt,non-woven fabrics, apparel fabrics, towels, blankets,

mouse pads and other products in the piece, especially the continuous transfer of the cloth.Capable of continuous printing speed,

to meet the requirements of large volume printing the customer.

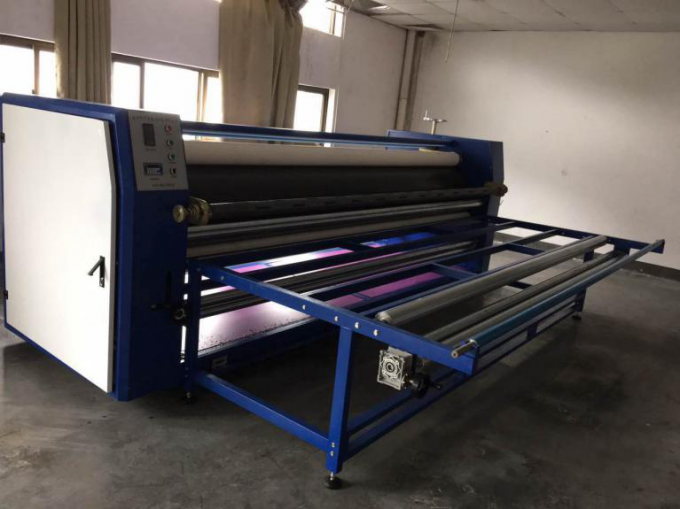

Large Format Calender Heat Press Machine 420mm Drum Diameter Oil Heating 1



Warranty & Services:

(1) One year of warranty time.
(2) About the after-sales service:
A. If the printer has problem, the client can take a picture or video to the technician.
B. The technician will teach the client to fix and operate the printer through the internet.
C.We will ask the client to send back the board which is wrong to check it.
D.The technician is full of experience, and the sales also keep in touch with the client.
