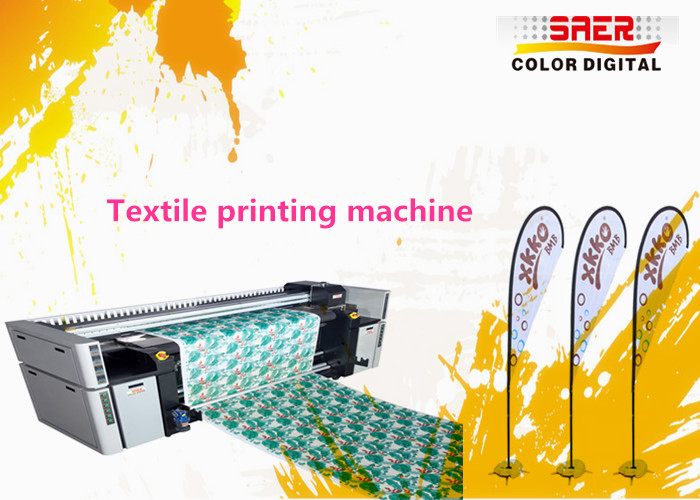

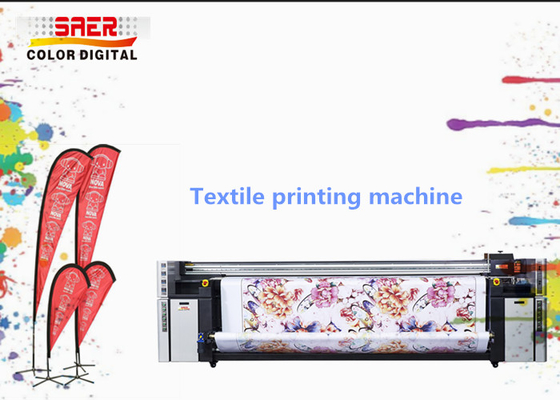

Large Format Digital Flag Printing System / Textile Material Printer 1400dpi

Large Format Digital Flag Printing System / Textile Material Printer 1400dpi

    • Large Format Digital Flag Printing System / Textile Material Printer 1400dpi
    • Large Format Digital Flag Printing System / Textile Material Printer 1400dpi
  • Large Format Digital Flag Printing System / Textile Material Printer 1400dpi

    Product Details:

    Place of Origin: China
    Brand Name: SAER
    Certification: CE
    Model Number: CSR2200

    Payment & Shipping Terms:

    Minimum Order Quantity: One set
    Packaging Details: Non fumigation wooden package
    Delivery Time: Within 5 Working days after the payment arrived
    Payment Terms: T/T
    Supply Ability: 1000 sets / month
    Contact Now
    Detailed Product Description
    Product Name: Digital Textile Printing System Suitable Fabric Type: Knitted Or Woven Cotton,linen,silk,wool,chemical Fiber,nylon.oxford Etc
    Media Processing: Roll To Roll + Auto Feeding + Auto Roll Up Print Head: Epson High DIP Print Head
    Ink Supply Mode: Continuous Ink Supply Application: Indoor & Outdoor
    Condition: New Max Resolution: 1400dpi
    Color Mode: CMYK Max Materials Width: 2m
    Highlight:

    Digital Flag Textile Printing System

    ,

    CMYK Digital Flag Printing System

    ,

    Large Format Digital Textile Printer 1400dpi

    Product name: Large format digital flag printing system/Textile material printer



    Quick Detail:



    Combined with 2m printing system and filter fan, sublimation printing type, printed material can use indoor and outdoor, can stand sunshine and no fade, also can be washed.



    Description:



    • Saer Textile Inkjet Printer: with high resolution, outdoor and indoor applied, designed especially for printing of textile, sublimation banner cloth etc.
    • This unit is double 4 color type outdoor and indoor printer, Adopts the Epson piezo technology, 4 heads, each head has long using life.
    • Using HIWIN mute guide rail. germany IGUS silent drag chain, make your printing environment more quiter.
    • Strong Media Feed-in system, for smooth printing on heavy materials, such as textile, sublimation banner cloth and so on.
    • X axis and Y axis are using AC serve motors

    Machine working speed :









    Printing resolution and speed



    Resolution(dpi) speed
    360*1800dpi(3 pass) 80m2/h

    720*1220dpi(4 pass) 65m2/h

    720*1800dpi(6 pass) 45m2/h







    Applications:



    Home Decoration:Print on polyester fabric to make windows curtain and Table cloth,sheets and so on also can make Wall Stickers.
    Outside Using :Advertising materials to make flag,pop up banner,tear drops banners,and so on.



    Specifications:



    1. Constant temperature heating box rapidly heating, good leakproofness ensure the temperature constant

    2. Green smoke extraction filtration system filter and sublimation smoke efficiently, keep the environment clean

    3. open ink-supply system Compatible with many brands of sublimation ink, easily to control the printing cost.



    Product Model CSR 2200
    Printhead Piezo technology, four Epson print heads
    Ink Environmental Sublimation ink, Pigment Ink optional
    Color Dual KCMY
    Printing Media Soft roll to roll
    Fabric Type Knitted or woven cotton,linen,silk,wool,chemical fiber,nylon.oxford etc
    Medium Transfer Continous Transport Automatic Fabric Feeding & Taking-up
    Nozzles (400nozzles x 8 lines ) x4heads
    Printer head higher 15mm / 6mm ( Adjustable )
    Ink supply model Continuous ink supply
    Ink Volume 2000ML Volume ink,automatic ink detector
    Max materials width 2000mm (can custom)
    Printing width Maximum 2m (can custom)
    Printing Speed Production Mode 65㎡/hour
    Image Data Format TIFF,JPEG
    Rip Software ONYX
    Roll diameter 3 Inch
    Maximum weight for roll material 100kg
    Interface USB 2.0
    RAM 128M
    Printer power AC220-240V / AC220-240 Adaptive 50/60Hz
    Sublimation machine AC220-240V. 16A. 50/60Hz
    Power consumption Direct dye sublimation heater 3500w
    Printer 5500w
    Temperature 20-32°C(68 – 89.6 ℉)
    Humidity 40-60% RH







    Competitive Advantage:



    1. Stable and continuous printing, using strong mechanical to ensure printing high resolution and stabilitIty
    2.Adopt professional feeding system and fit to textile without tension. Stable feed
    resolution and stability material, make sure printing process
    3. No need platemaking and fit to flag and scroll
    4. Using constant temperature coloration box, fast temperature rising. Good tightness to guarantee the even temperature



    Product Service :



    1. With one year warranty and lifelong technical support.

    2. Offer Video and operation manual, and the professional technical staff online guidance.

    3. Guarantee prompt warranty service for main parts repairmen and replacement by international courier



    How To Order:

    Inquriy-------Quotation-------Order-------Production-------Quality Control-------Packing-------Shipping-------Delivery
