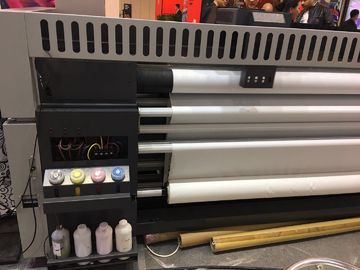

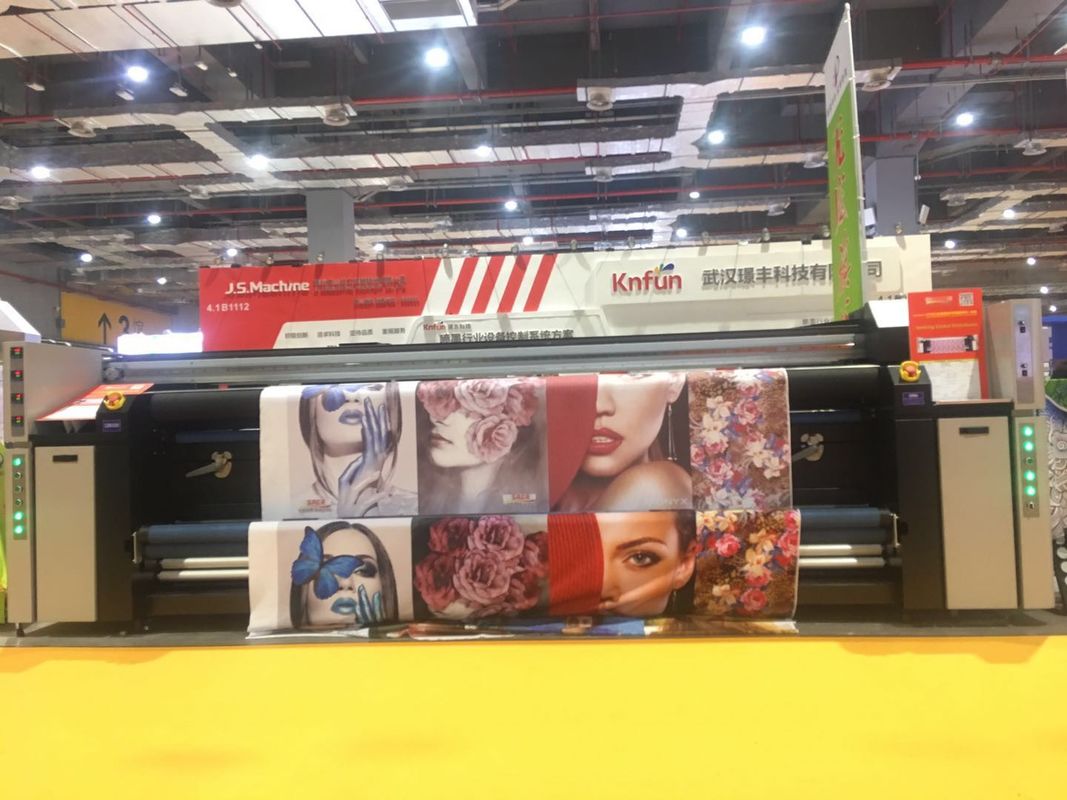

Large Format Inkjet Textile Printing Machine High Resolution With Automatic Feeding System

Large Format Inkjet Textile Printing Machine High Resolution With Automatic Feeding System

    • Large Format Inkjet Textile Printing Machine High Resolution With Automatic Feeding System
    • Large Format Inkjet Textile Printing Machine High Resolution With Automatic Feeding System
  • Large Format Inkjet Textile Printing Machine High Resolution With Automatic Feeding System

    Product Details:

    Place of Origin: Shanghai, China
    Brand Name: SAER
    Certification: CE Certification
    Model Number: CSR3200

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 set
    Packaging Details: Non-fumigation wooden box
    Delivery Time: 10 work days
    Payment Terms: T/T, Western Union
    Supply Ability: 50 sets per month
    Contact Now
    Detailed Product Description
    Media Type: All Kinds Of Fabric Printing Solution: 1440dpi
    Automatic Grade: Automatic Voltage: 110V/220V
    Ink Type: Textile Ink, Sublimation/Reactive/Pigment/Dispersive/Dye Ink, Sublimation Ink, Pigment Ink, Water-based/sublimation Rip Software: Maintop/Photoprint/Wasatch, FocusRIP 8.2.0, Compatible Software, Wasatch / Custom



    Large Format Inkjet Textile Printing Machine High Resolution With Automatic Feeding System



    Product name: Large Size High Resolution Flag Printing Machine With Automatic Take - Up And Feeding System



    Quick Details: Our CSR3200 includes one printer, one heater (printer and heater are whole one set), one filter





    Automatic feeding and collecting structure:


    1, Intelligent infrared heater and fan drying system;
    2, The machine through different quality tests is stable and competent enough for mass production requirement.
    3, No Pinch roller, let the fabric no wrinkle and print smoothly

    4, Keep the fabric good air permeability after sublimation

    5, Printing groove designed specially for fabric printing to collect waste ink and keep

    fabric clean.

    6, Patented ink tanks keep ink supply constantly.





    Specifications:



                                                    Product Parameter
    Model type CSR3200
    Print head 3 pieces Epson 4720
    Ink Sublimation ink, pigment ink
    Number of nozzles (400 nozzles*8lines)*3head
    Color Dual CMYK
    Print head high 1.5mm/6mm (adjustable)
    Ink supply mode Continuous ink supply
    Max materials width 2300mm
    Max printing width 2200mm

    Printing resolution and speed



    Resolution(dpi) speed
    360*1800dpi(3 pass) 65m2/h

    720*1220dpi(4 pass) 45m2/h

    720*1800dpi(6 pass) 35m2/h
    Roll outer diameter 3 inch
    Maximum weight for roll material 100kg
    Interface USB2.0
    RAM 128M
    Printer Power AC100-120V/AC220-240V(adjustive) 50/60HZ
    Power Heater 3.5kw
    Printer 100w
    Temperature 30-32℃
    Humidity 40-60%(Non-condensing)









    Description:



    1.Three pieces Epson 4720 Print heads, faster speed, longer head life time. Feather printing function available, print heads correction and counterpoint are more easy.

    2. Using HIWIN mute guide rail. Germany IGUS silent drag chain make your printing environment more quit

    3.X axis and Y axis are using AC servo motors.

    4. Intelligent print head cleaning service, supply safe and convenient print head cleaning and protection function.

    5. Equipped with the feeding motor Positive and Negative transfer function, taking and feeding constant tension transmission system.

    6. The unique print platform design to make the cloth always smooth in the process of printing.

    7. Unique filtering lampblack system, make the picture very clean.

    8. Taking up and feeding roller are inflatable roller.

    9. Taking up and feeding fabric are smoothly





    Service:



    1) Customized Service:We Can Provide Customized Production and Packing for You!



    2) Print Service:



    We Also Provide FREE Printing Samples for You!



    3) Training Service:

    We Provide FREE Training for Our Clients! Even can Send Engineer to Oversea Local Customer!



    4) Guarantee Service:

    We Provide Lifetime Warranty for All MT Industry Machine Models!



    5) Solution Service:

    The Most Important We Have Digital Printing Solution Ability

    We Have Provided Many Digital Inkjet Printing Solutions for Over 30 Clients Per Year! Some of Them are Very Famous Printing Company





    Applications:



    Interior Home Decoration: Print on polyester fabric to make windows curtain and Tablecloth, sheets and so on.

    Outside: Advertising materials to make flag, banner, act fast show and so on.
