Large Format Plotter Machine Dye Sublimation Texas Flag Fabric

Large Format Plotter Machine Dye Sublimation Texas Flag Fabric

Large Format  Plotter Machine Dye Sublimation Texas Flag Fabric

Product Details:

Place of Origin: Shanghai,China
Brand Name: SAER
Certification: CE Certification
Model Number: CSR 3200

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set
Price: Negotiation
Packaging Details: Non fumigation wooden package(Package size 4460*1160*1730mm)
Delivery Time: 10 working days after receive your payment
Payment Terms: T/T, Western Union
Supply Ability: 100 sets / month
Contact Now
Detailed Product Description
Product Name: Digital Textile Printing Machine Application: Indoor & Outdoor
Max Resolution: 1440 DPI Color Mode: Dual CMYK
Voltage: 380V Gross Power: 5.5KW
Print Head Type: Two Epson DX7 Print Head Plate Type: Roll To Roll
Rip Software: Maintop 5.3 Rip Software Or Neostampa 8 Optional Compatible OS: Win XP & Win 7
Printing Width: 3200mm Ink: Sublimation,Reactive And Pigment Ink
High Light:

large format plotter

,

fabric printer machine

Large Format Dye Sublimation Texas Flag Fabric Plotter Machine



Specifications



Model

CSR3200

Print head

Piezo technology,Epson DX7 printer head*2

Ink

Sublimation Ink,Reactive Ink,Pigment Ink

Color Mode

Dual CMYK

Nozzles

(180 nozzles*8 lines)*2 head

Print Head Height

1.5mm/6mm(adjustable)

Ink Supply Mode

Continuous Ink Supply

Max Material Width

3300mm

Max Printing Width

3200mm

Printing Media

Coated polyster fabric,cotton,Silk and Wool Fabric

Roll Owter Diameter

3 Inch

Max Weight For Roll Material

100KG

Interface

USB 2.0

RAM

128M

Printer Power

380V

Power

Direct Dye Sublimation Heater 3500W
Printer                       2000W

Environment

temperature    20-32 degree

Weight

1120KG

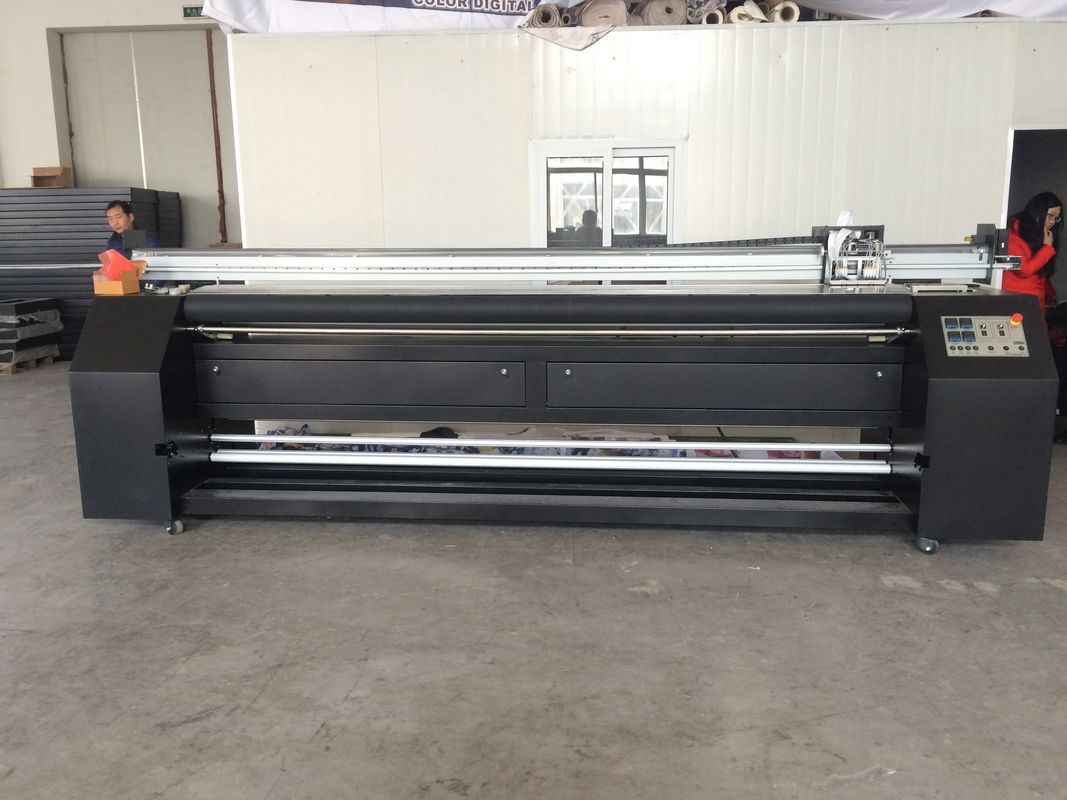

Machine Details

Large Format  Plotter Machine Dye Sublimation Texas Flag Fabric 0



Large Format  Plotter Machine Dye Sublimation Texas Flag Fabric 1
Printing Resolution And Speed:

Resolution(DPI)          Speed
720*360dpi(2 pass)      40m²/h
360*1080dpi(3 pass)     32m²/h
720*720dpi(4 pass)      22m²/h
720*1080dpi(6 pass)     18m²/h
720*1440dpi(8 pass)     12m²/h

Advantages:


  •  Directly print on polyster,Cotton fabric,no need any transfer paper.
  • The printed fabic after sublimation heater process can directly make banner flag etc,no fade.
  • The machine has an easy learing curre,you will be able to use iy perfectly within 3 days.


Description:

1. Double Epson DX7 Print heads,faster speed,longer head life time.Feather printing funcation available,print heads correction and counterpoint are more easy.
2. Using HIWIN mute guide rail.Germany IGUS silent drag chain make your printing environment more quiter
3. X axis and Y axis are using AC servo motors.
4. Intelligent print head cleaning service,supplys safe and convenient print head cleaning and protection function.
5. Equipped with the feeding motor Positive and Negative transfer function,taking and feeding constant tension transmission syst.
6. The unique print platform design to make the cloth always smooth in the process of printing.
7. Unique filtering lampblack system,make the picture very clean.
8. Taking up and feeding roller are inflatable roller.
9. Taking up and feeding fabric are smoothly
10. Low cost and no need any transfer paper.

Applications:

Interior Home Decoration:Print on polyster fabric to make windows curtain and Tablecloth,sheets and so on.
Outside:Advertising materials to make flag,banner,act fast show and so on.

Printing Samples:

Large Format  Plotter Machine Dye Sublimation Texas Flag Fabric 2


After Sales Service:

1. With one year warranty and lifelong technical support.
2. Offer Video and operation manul,and the professional technical staff online guidance.
3. Guarantee prompt warranty service for main parts repairment and replacement by international courier
