Large Format Textile Calender Machine Roll To Roll Sublimation Machine CE Certification

Large Format Textile Calender Machine Roll To Roll Sublimation Machine CE Certification

    • Large Format Textile Calender Machine Roll To Roll Sublimation Machine CE Certification
    • Large Format Textile Calender Machine Roll To Roll Sublimation Machine CE Certification
  • Large Format Textile Calender Machine Roll To Roll Sublimation Machine CE Certification

    Product Details:

    Place of Origin: Shanghai ,China(Mainland)
    Brand Name: SAER
    Certification: CE
    Model Number: SRT600-1600

    Payment & Shipping Terms:

    Minimum Order Quantity: 1set
    Price: negotiable
    Packaging Details: Packing With Wooden Cases
    Delivery Time: 15 working days after get your payment
    Payment Terms: T/T
    Supply Ability: 100sets per month
    Contact Now
    Detailed Product Description
    Heating: Oil Heating Suitable For: Cloths Printer
    Color: Varies For Choose Temperature Range: 0-399 Degree
    Function: Multiple-surface Sublimation Voltage: 220/380/420 Three-phase
    Roll Diameter: 600mm
    High Light:

    sublimation heat press machine

    ,

    fabric calender machine

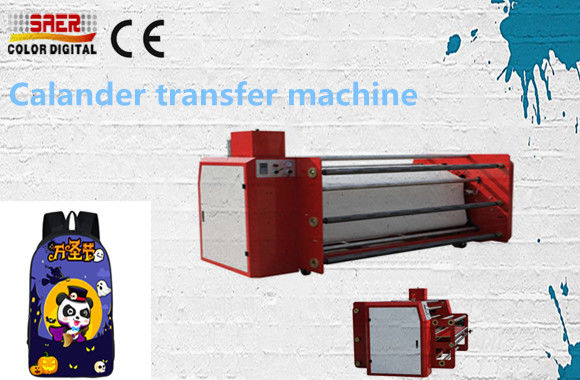

    Product name :   Large format roll cloth fabric drum heating press calander roll to roll sublimation machine







    Machine Parameter:





    Model SRT600-1600
    Working Vatage(V) Ac 50~60Hz, three-phase four-wire, 380V
    Current 55A
    Power 36kw
    Temperature Range(℃) 0—399
    Speed range 150meters per hour
    Heating Time around one hour
    Transfer width 1600mm
    Number of heating tubes 24 pieces
    Package Size 2600mm*1300mm*1500mm
    Weight 1800kg








    Product Description:


    1. Heating hose heats oil reaching 200℃ within 45 min, temp different ±1℃
    2. Special seamless steel tubes structure the heating drum, high temperature resistance, aging resistance
    3. Special designed for tube to avoid the heating drum oil leaking.
    4. Good sealing to keep the conduct oil not oxidized, thus avoid poor flowing ability and temperature difference on different parts of heating drum.
    5. Convenient to add heat conduction oil, high security performance with anti-explosion through automatic turn off.
    6. Adopt simultaneous shaft adjustment and pressure balancing shaft to keep the pressure on the blanket is consistent with that on the heating roller, Completely solved the problem of cooling the blanket while turning off the machine or while power off.
    7. Frequency conversion governor which freely adjust speed.
    8. Releasing-laying system as a while part in machine, deliver the paper or fabric exactly parallel without deviation.
    9. Section aluminum structured the machine body, easy assembly and disassembly, ensure the machine precision





    Applications:


    1)This machine can be sublimation transfer paper by thermal transfer on cotton, hemp, chemical fiber fabrics, economical and practical.
    2)For large banners, flags, non-woven fabrics, apparel fabrics, towels, blankets, mouse pads and other products for sublimation transfer, especially the piece continuous transfer fabric.











    Large Format Textile Calender Machine Roll To Roll Sublimation Machine CE Certification 0

    Large Format Textile Calender Machine Roll To Roll Sublimation Machine CE Certification 1


    Our Pakage and delivery:



    Large Format Textile Calender Machine Roll To Roll Sublimation Machine CE Certification 2Large Format Textile Calender Machine Roll To Roll Sublimation Machine CE Certification 3
