Large Format Textile Printing Machine With High DPI Print Head

Verified Supplier

China

Detailed Product Description
Product Name: Digital Textile Printing System Suitable Fabric Type: Knitted Or Woven Cotton,linen,silk,wool,chemical Fiber,nylon.oxford Etc
Media Processing: Roll To Roll + Auto Feeding + Auto Roll Up Print Head: Epson High DIP Print Head
Ink Supply Mode: Continuous Ink Supply Application: Indoor & Outdoor
Condition: New Max Resolution: 1400dpi
Color Mode: CMYK Max Materials Width: 2m
High Light:

DPI Head Textile Printing Machine

,

Large Format Textile Printing Machine AC220V

,

Dual KCMY Sublimation Printing Machine

Product name: Large format textile printing machine with high DPI print head



Quick Detail:



Combined with 2m printing system and filter fan, sublimation printing type, printed material can use indoor and outdoor, can stand sunshine and no fade, also can be washed.



Description:



  • Saer Textile Inkjet Printer: with high resolution, outdoor and indoor applied, designed especially for printing of textile, sublimation banner cloth etc.
  • This unit is double 4 color type outdoor and indoor printer, Adopts the Epson piezo technology, 4 heads, each head has long using life.
  • Using HIWIN mute guide rail. germany IGUS silent drag chain, make your printing environment more quiter.
  • Strong Media Feed-in system, for smooth printing on heavy materials, such as textile, sublimation banner cloth and so on.
  • X axis and Y axis are using AC serve motors

Machine working speed :









Printing resolution and speed



Resolution(dpi) speed
360*1800dpi(3 pass) 80m2/h

720*1220dpi(4 pass) 65m2/h

720*1800dpi(6 pass) 45m2/h







Applications:



Home Decoration:Print on polyester fabric to make windows curtain and Table cloth,sheets and so on also can make Wall Stickers.
Outside Using :Advertising materials to make flag,pop up banner,tear drops banners,and so on.



Specifications:



1. Constant temperature heating box rapidly heating, good leakproofness ensure the temperature constant

2. Green smoke extraction filtration system filter and sublimation smoke efficiently, keep the environment clean

3. open ink-supply system Compatible with many brands of sublimation ink, easily to control the printing cost.



Product Model CSR 2200
Printhead Piezo technology, four Epson print heads
Ink Environmental Sublimation ink, Pigment Ink optional
Color Dual KCMY
Printing Media Soft roll to roll
Fabric Type Knitted or woven cotton,linen,silk,wool,chemical fiber,nylon.oxford etc
Medium Transfer Continous Transport Automatic Fabric Feeding & Taking-up
Nozzles (400nozzles x 8 lines ) x4heads
Printer head higher 15mm / 6mm ( Adjustable )
Ink supply model Continuous ink supply
Ink Volume 2000ML Volume ink,automatic ink detector
Max materials width 2000mm (can custom)
Printing width Maximum 2m (can custom)
Printing Speed Production Mode 65㎡/hour
Image Data Format TIFF,JPEG
Rip Software ONYX
Roll diameter 3 Inch
Maximum weight for roll material 100kg
Interface USB 2.0
RAM 128M
Printer power AC220-240V / AC220-240 Adaptive 50/60Hz
Sublimation machine AC220-240V. 16A. 50/60Hz
Power consumption Direct dye sublimation heater 3500w
Printer 5500w
Temperature 20-32°C(68 – 89.6 ℉)
Humidity 40-60% RH







Competitive Advantage:



1. Stable and continuous printing, using strong mechanical to ensure printing high resolution and stabilitIty
2.Adopt professional feeding system and fit to textile without tension. Stable feed
resolution and stability material, make sure printing process
3. No need platemaking and fit to flag and scroll
4. Using constant temperature coloration box, fast temperature rising. Good tightness to guarantee the even temperature



Product Service :



1. With one year warranty and lifelong technical support.

2. Offer Video and operation manual, and the professional technical staff online guidance.

3. Guarantee prompt warranty service for main parts repairmen and replacement by international courier



How To Order:

Inquriy-------Quotation-------Order-------Production-------Quality Control-------Packing-------Shipping-------Delivery

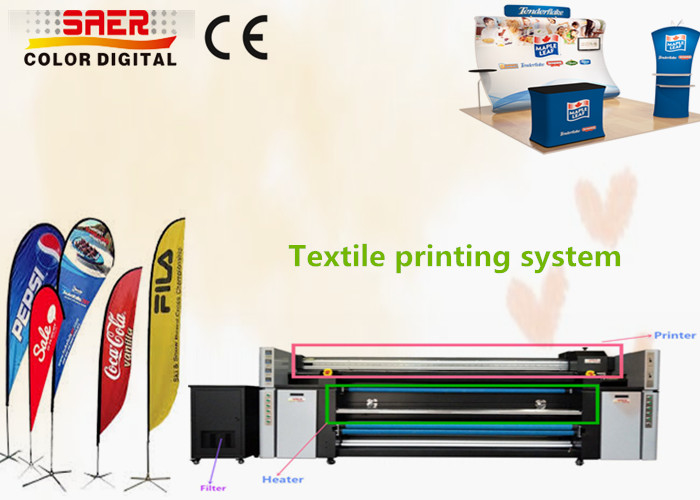

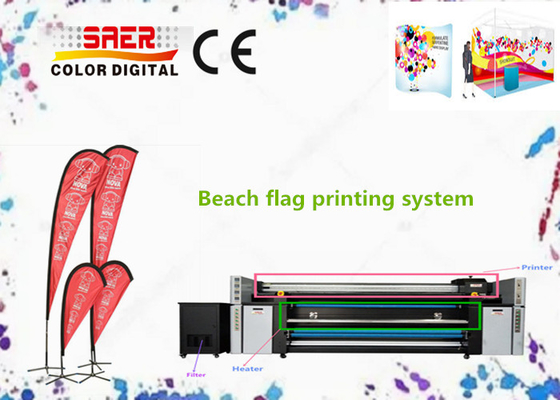

Large Format Textile Printing Machine With High DPI Print Head 0 Large Format Textile Printing Machine With High DPI Print Head 1
