Mirror Fabric Sublimation Printing Machine For Flag Making 1800 DPI Max Resolution

Mirror Fabric Sublimation Printing Machine For Flag Making 1800 DPI Max Resolution

    • Mirror Fabric Sublimation Printing Machine For Flag Making 1800 DPI Max Resolution
    • Mirror Fabric Sublimation Printing Machine For Flag Making 1800 DPI Max Resolution
  • Mirror Fabric Sublimation Printing Machine For Flag Making 1800 DPI Max Resolution

    Product Details:

    Place of Origin: Shanghai Of China
    Brand Name: SAER
    Certification: CE
    Model Number: CSR 3200

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 Set
    Price: Negotiation
    Packaging Details: Non fumigation wooden package(Package Size 4460*1160*1730mm)
    Delivery Time: 10 working days after receive your payment
    Payment Terms: T/T, Western Union
    Supply Ability: 100 sets / month
    Contact Now
    Detailed Product Description
    Product Name: Direct Fabric Printing Machine Max Resolution: 1800 DPI
    Color Mode: Dual CMYK Voltage: 380V
    Gross Power: 5.5KW Print Head Type: Three Epson 4720 Print Head
    Plate Type: Roll To Roll Printing Machine Rip Software: Maintop 5.3 Rip Software Or Neostampa 8 Optional
    Compatible OS: Win XP & Win 7 Ink: Sublimation,Reactive And Pigment Ink



    3.2M Mirror Fabric Pop Up Printer For Flag Making Indoor & Outdoor with three Epson 4720 heads





    Specifications:



    Model

    CSR3200

    Print head

    Piezo technology,Epson 4720 printer head*3

    Ink

    Sublimation Ink

    Color Mode

    Dual CMYK

    Nozzles

    (180 nozzles*8 lines)*2 head

    Print Head Height

    1.5mm/6mm(adjustable)

    Ink Supply Mode

    Continuous Ink Supply

    Max Material Width

    3300mm

    Max Printing Width

    3200mm

    Printing Media

    Coated polyster fabric

    Roll Owter Diameter

    3 Inch

    Max Weight For Roll Material

    100KG

    Interface

    USB 3.0

    RAM

    128M

    Printer Power

    380V

    Power

    Direct Dye Sublimation Heater 3500W

    Printer                       2000W

    Environment

    temperature    20-32 degree

    Weight

    1120KG



    Printing Resolution And Speed:



    Resolution(DPI)          Speed



    360*1800dpi(3 pass)     65m²/h

    720*1200dpi(4 pass)      45m²/h

    720*1800dpi(6 pass)     35m²/h





    Description:



    1. Three Epson 4720 Print heads,faster speed,longer head life time.Feather printing funcation available,print heads correction and counterpoint are more easy.

    2. Using HIWIN mute guide rail.Germany IGUS silent drag chain make your printing environment more quiter

    3. X axis and Y axis are using AC servo motors.

    4. Intelligent print head cleaning service,supplys safe and convenient print head cleaning and protection function.

    5. Equipped with the feeding motor Positive and Negative transfer function,taking and feeding constant tension transmission syst.

    6. The unique print platform design to make the cloth always smooth in the process of printing.

    7. Unique filtering lampblack system,make the picture very clean.

    8. Taking up and feeding roller are inflatable roller.

    9. Taking up and feeding fabric are smoothly

    10. Low cost and no need any transfer paper.



    Detail Pictures:

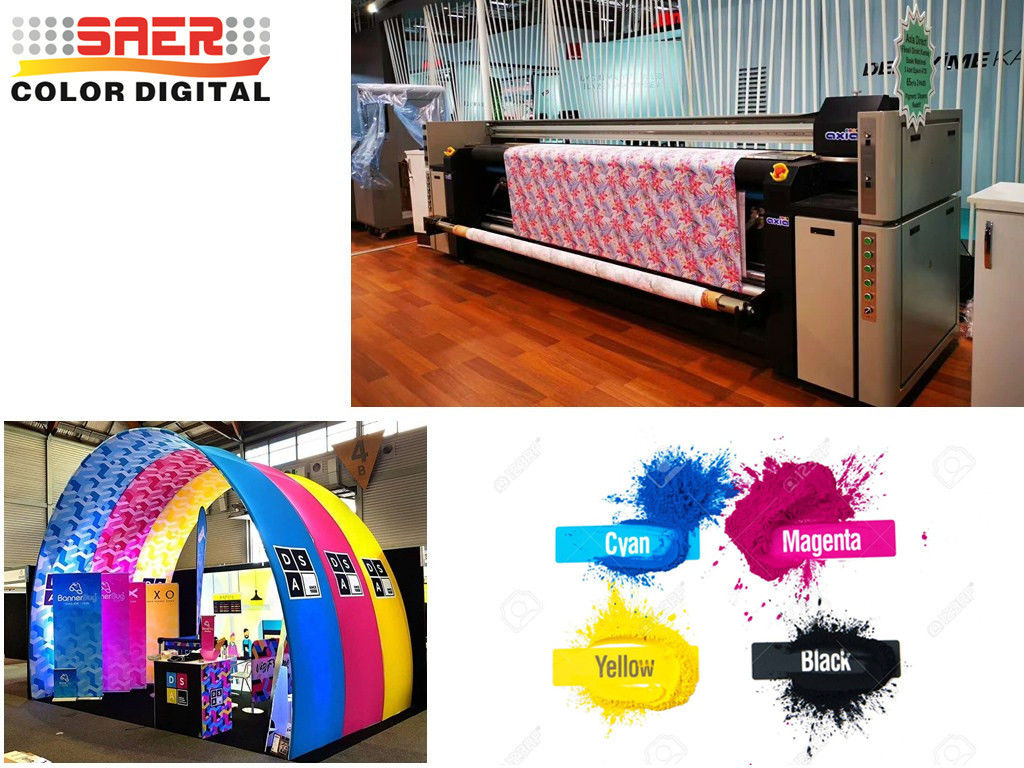

    Mirror Fabric Sublimation Printing Machine For Flag Making 1800 DPI Max Resolution

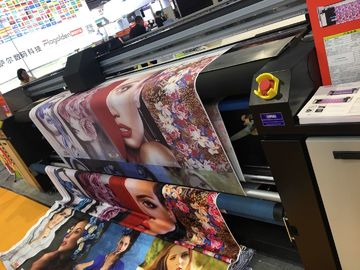

    Mirror Fabric Sublimation Printing Machine For Flag Making 1800 DPI Max Resolution



    Applications:



    Interior Home Decoration:Print on polyster fabric to make windows curtain and Tablecloth,sheets and so on.

    Outside:Advertising materials to make flag,banner,act fast show and so on.



    Printing Samples:



    Mirror Fabric Sublimation Printing Machine For Flag Making 1800 DPI Max Resolution



    After Sales Service:



    1.  With one year warranty and lifelong technical support.

    2.  Offer Video and operation manul,and the professional technical staff online guidance.

    3.  Guarantee prompt warranty service for main parts repairment and replacement by international courier
