Mutoh Vj 1604 Sublimation Printer For Flag Curtain and Table Fabric Printing

Mutoh Vj 1604 Sublimation Printer For Flag Curtain and Table Fabric Printing

    • Mutoh Vj 1604 Sublimation Printer For Flag Curtain and Table Fabric Printing
    • Mutoh Vj 1604 Sublimation Printer For Flag Curtain and Table Fabric Printing
    • Mutoh Vj 1604 Sublimation Printer For Flag Curtain and Table Fabric Printing
  • Mutoh Vj 1604 Sublimation Printer For Flag Curtain and Table Fabric Printing

    Product Details:

    Place of Origin: Japan
    Brand Name: Mimaki
    Model Number: TS34-1800A

    Payment & Shipping Terms:

    Minimum Order Quantity: One Set
    Price: USD 27500 SET (This Price with SR1800 Heater)
    Packaging Details: Wood Case
    Delivery Time: Within 5 workingdays
    Payment Terms: T/T, Western Union, MoneyGram
    Supply Ability: 100 Set Per Month
    Contact Now
    Detailed Product Description
    Application: Printing Flag Print Material: Sublimation Polyester
    Printhead: Two PCS Epson DX5 Power: 4160W


    Digital 100% Polyester Direct Sublimation Textile  Printer With Dual Cmyk Color 1440 Nozzles



    Product Feature

    1. Adopt Epson DX7 Printhead,Piezo technology with High precision,
    2. With Dual CMYK color
    3. 1440 DPI nozzle
    4. Max fabric width 1.9m
    5. Use RasterLinkPro 5 rip software
    6. Perfect work with SR1800 sublimation heater
    7. work way roll to roll.
    8. Direct Printing

    Product Techincal Data


    NameCompletely Sublimation System
    ModelCSR-1600

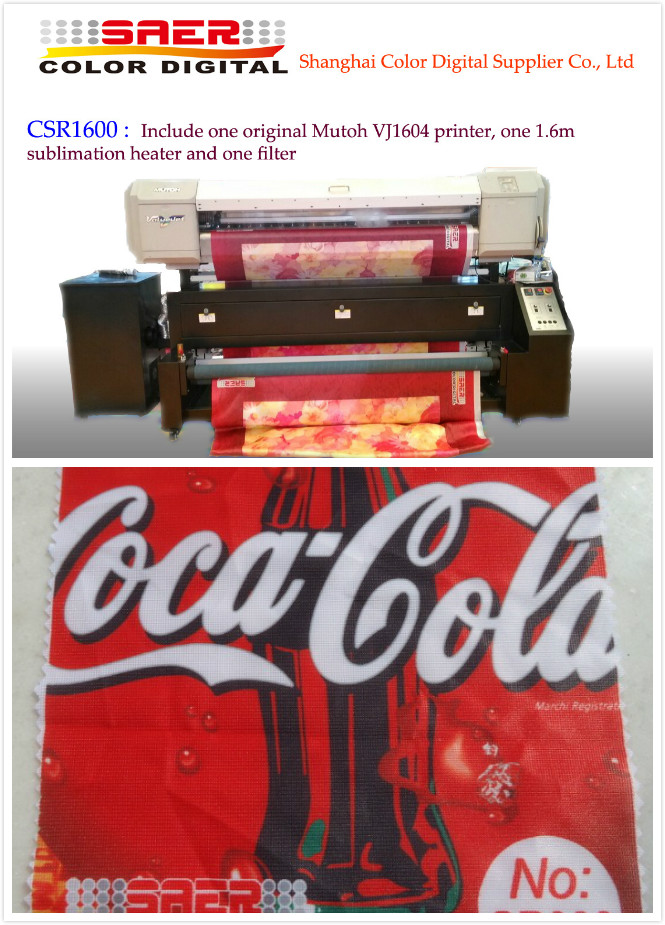

    IntroduceOne SR1600 Heat Transfer Machine , One MUTOH VJ1604 Printer , One Filter
    ProfileCompletely Sublimation machine , can produce Flags directly.
    details
    MODELCSR-1600
    Maximum media width1,625mm
    Printing MethodPIEZO Inkjet
    Print Color4 color (Cyan, Magenta, Yellow, Black)
    Printhead Height Controll1.5mm/2.5mm low /High
    Maximum Resolution1440dpi
    Printing SpeedResolutionSpeed
    540×720/3Pass21 m2/h
    540×720/6Pass10.5 m2/h
    720×720/4Pass15.5 m2/h
    720×720/8Pass7.7 m2/h
    1440×720(8Pass)5.9 m2/h
    1440×1440(16Pass)3.0 m2/h
    Media SizeMaximum Media Thickness: 1.0mm(0.039in.)

    Media diameter

    2” or 3”

    Maximum weight for roll media

    40kg

    Ink Feeding SystemCartridge (220ml per Color)
    Printing Precision Level±0.3% or 0.3mm
    Head CleaningAutomatic and/or Manual
    InterfaceEthernet 10Base-T
    OperationalPower on - Temperature: 16~24°C / Humidity: 40~65%
    Power off - Temperature: 10~30°C / Humidity: 20~60%
    Power ResourcesDirect dye sublimation heater: AC 220 V, 1 phase + N+ PE, 16A, 50/60 Hz
    Printer: AC 220V, 2A, 50/60Hz
    Weight560KG
    External Shape101x287x185 CM
    62*56*110CM
    Ink type

    Disperse dye ink (Sublimation ink)

    Media type

    Polyester





    Product Advantage

    1. Direct printing image into fabric .
    2. Use dye sublimation ink . no smell, no pollute.

    Mutoh Vj 1604 Sublimation Printer For Flag Curtain and Table Fabric Printing

    SR1600 Technical Data


    Power

    3.8KW

    Working Width

    1600MM

    Blackbody Tube Working Model

    Far Infrared

    Heat Tuble Dimension

    1700MM

    Working Temperture

    100 to 250 °C

    Tension

    0 to 1.2Kg

    Working Voltage
    Take Up working Method
    Take Up media diameter(roll to roll)

    220~240V 50HZ
    Directly out or Roll to Roll.
    300mm

    Weight

    330Kg

    Certification

    CE Certificated

    Package

    High intensity standard carton package Non Fumigation

    Available Printer

    Mimaki, Roland , Mutoh and any Piazo Printer


    SR 1600 Heater Picture
    Mutoh Vj 1604 Sublimation Printer For Flag Curtain and Table Fabric Printing
    Mutoh Vj 1604 Sublimation Printer For Flag Curtain and Table Fabric Printing

    Application Field:

    Textile,flag,poster,banner, tablecloth,wall pictures,interior decoration, indoor and outdoor printing etc

    Product Service

    This machine has one year warranty . We are support oversea service.and all of life techincal support.
