Shanghai Color Digital Supplier Co., Ltd.
Professional Digital Textile Printing Equipment & Relevant Materials General Supplier
 |
| Place of Origin: | Shanghai City Of China |
| Brand Name: | SAER |
| Certification: | CE Passed |
| Model Number: | CSR 2200 |
| Minimum Order Quantity: | 1 Set |
|---|---|
| Price: | Negotiation |
| Packaging Details: | None fumigation wooden package (Package size: 3350*1070*1550mm) |
| Delivery Time: | 10 working days after the payment |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100 Sets Per Month |
| Product Name: | Digital Textile Printing Machine | Max Resolution: | 1440dpi |
|---|---|---|---|
| Print Head: | Epson DX7 | Number Of Head: | 2 Pieces |
| Ink Supply Model: | Continuous Ink Supply | Max Materials Width: | 2300mm |
| Rip Software: | Maintop 5.3 Rip Software Or Onyx Optional | Ink: | Sublimation,Reactive And Pigment Ink |
| Material: | Polyster,Cotton,Wool And Silk Etc | Color Management: | Superior ICC Profile |
| Printing Interface: | Connect With Computer | ||
| High Light: | sublimation printing machine,cmyk printing machine |
||

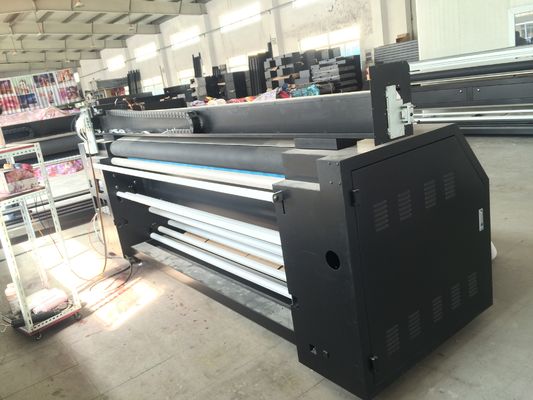

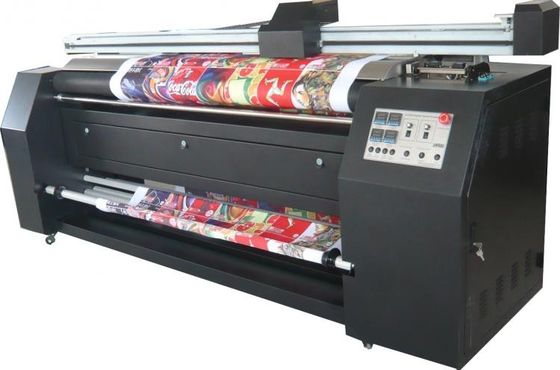

Roll To Roll Digital Textile Printing / Dye Sublimation Printer For Linen Fabric
Product Description:
CSR 2200 Digital Textile Printing Machine,combined with 2.2m all-in-one printer and filter fan,sublimation printing type,printed material can use indoor and outdoor,can stand sunshine and no fade.
Specifications:
1. Low cost
2. High productivity
3. Dye Sublimation system
4. Directly print on textile
5. Good after sales service
| Brand | SAER |
|
Model |
CSR 2200 |
|
Printer head |
Piezo technology, Epson DX7 head |
|
Color mode |
Double four color(C,M,Y,K) |
|
Nozzles |
(180 nozzles x 8 lines ) x2 heads |
|
Printer head higher |
15mm / 6mm ( Adjustable ) |
|
Ink supply model |
Continuous ink supply |
|
Max materials width |
2300mm |
|
Max printing width |
2200mm |
|
Roll diameter |
3 Inch |
|
Maximum weight for roll material |
100kg |
|
Interface |
USB 2.0 |
|
RAM |
1.2M |
|
Print Power |
AC220-240V./AC220-240Adaptive 50/60Hz |
|
Power consumption |
Direct dye sublimation heater 3500W |
|
Printer 5500w |
|
|
Temperature |
20-32°C |
|
Humidity |
40-60% Non-condensing |
| Available Media | Polyster,cotton,silk,linen fabric |
|
Weight |
Net Weight : 764kg Gross Weight : 886kg |
Printing Resolution And Speed:
| Resolution | speed |
| 720 x 360dpi (2pass) | 40m²/h |
| 360 x 1080dpi(3pass) | 32m²/h |
| 720 x 720dpi(4pass) | 22m²/h |
| 720 x 1080dpi(6pass) | 18 m²/h |
| 720 x 1440dpi(8pass) |
12 m²/h |
Available Ink and Material:
a. Sublimation Ink:
mainly used in polyester fabric.
b. Reactive Ink:
For cotton,linen and silk etc.
c. Pigment Ink:
For all kinds of textile fabrics.
Advantages:
Application:
Home Decoration:Print on polyester fabric to make windows curtain and Table cloth,sheets and so on also can make Wall Stickers.
Outside Using :Advertising materials to make flag,pop up banner,tear drops banners,and so on.
Features:
1. Suitable for small lot, Personality, Diversity Printing, Without Limit Of Quantity.
2. The printed image color is bright and vivid with nice color gamut after heating
3. Rapid speed and various printer to choose
4. It is simple and leave out heat transfer process, one person can operates with high efficency and short time.
5. Low cost and no need of any kind transfer paper, liner breaking the highest costs performance
After Sales Service:
1. One year warranty
2. Provide 24 hours online service.
when you first time operate the machine,our engineer will be online to guide you how to operate machine.
When your machine gets any problem, our engineer will help you to solve it through remote control.
3. If necessary,we can send you new spare part.
Machine Details:
Control Pannel
