Roll To Roll Epson Sublimation Printer Digital Printing Machine With Print Head

Roll To Roll Epson Sublimation Printer Digital Printing Machine With Print Head

Roll To Roll Epson Sublimation Printer Digital Printing Machine With Print Head

Product Details:

Place of Origin: Shanghai Of China
Brand Name: SAER
Certification: CE Passed
Model Number: CSR2200/CSR 3200

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set
Packaging Details: Non fumigation wooden package(Package size 4460*1160*1730mm)
Delivery Time: 7 working days after get your payment
Payment Terms: T/T, Western Union
Supply Ability: 100 Sets / Month
Contact Now
Detailed Product Description
Product Name: Epson Head Banner Flag Printer Application: Indoor Decoration & Outdoor Advertising
Color Mode: Dual CMYK Print Head Type: 3 4720Epson Print Head
Plate Type: Roll To Roll Rip Software: Maintop Rip Software Or Onyx Optional
Working Type: Connect With The Computer Ink Type: Sublimation / Reactive / Pigment

Banners Flags Epson 4720 Head Printer Digital Printing Machine with Print Head




Combine With:

  • All-in-one Directly Textile Printing System
  • Filter Fan

Descriptions:



1. Can make flags, high-definition colourful banners cloth printing,personal pattern and so on.

It can make small quantity, personal, many varieties printing,no quantity limit. Spray printing picture gorgeous and realistic, can feel colour levels strongly. Fabric will be colorful, good at penetration, no color difference through our machine.

2. Width optional: you can choose 2.2 meter, 3.2 meter. we also sell 1.8M 1.6M oven.

3. Enlarge picture design: can choose enlarge picture funtion, smooth and no wrinkles in continuous printing.

4. function to print: can print on flags.

5. High-precision printing: use original 4720 epson generation print heads, pictures are more exquisite.

6. when heavy machine continuously work, mechanical is still stable, anti-wrinkle, adjustable speed.



Product Model CSR 2200
Printhead Piezo technology, Three Epson 4720 printer heads
Ink Environmental Sublimation ink, Pigment Ink optional
Color Dual KCMY
Printing Media Soft roll to roll
Fabric Type Knitted or woven cotton,linen,silk,wool,chemical fiber,nylon.oxford,cotton etc
Medium Transfer Continous Transport Automatic Fabric Feeding & Taking-up
Nozzles (180 nozzles x 8 lines ) x3 heads
Printer head higher 15mm / 6mm ( Adjustable )
Ink supply model Continuous ink supply
Ink Volume 2000ML Volume ink,automatic ink detector
Max materials width 2200mm
Printing width Maximum 210 cm
Printing Speed Production Mode 45㎡/hour
Image Data Format TIFF,JPEG
Rip Software ONYX
Roll diameter 3 Inch
Maximum weight for roll material 100kg
Interface USB 3.0
RAM 128M
Printer power AC210-230V / AC220-240 Adaptive 50/60Hz
Sublimation machine AC220-240V. 16A. 50/60Hz
Power consumption Direct dye sublimation heater 3500w
Printer 1000w
Temperature 20-32°C(68 – 89.6 ℉)
Humidity 40-60% RH









Printing Resolution And Speed:




3 pass 360x1800DPI 65m²/h
4 pass 720X1200DPI 45m²/h
6 pass 720x1800DPI 35m²/h



Advantages:

1. Constant temperature control:temperature adjustable

2. Low Consumption,high efficiency.

3. Print and heat together,make the picture drying fast and more gorgeous,save the labor cost effectively,reduce the print rejection rate.

4. The finished product can be directly obtained by one set of equipment.

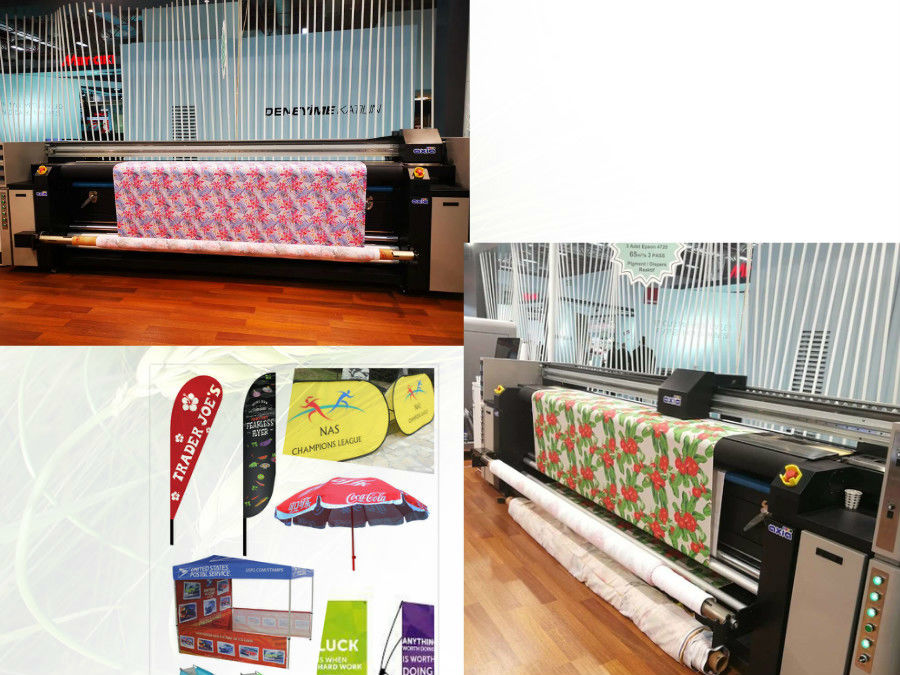

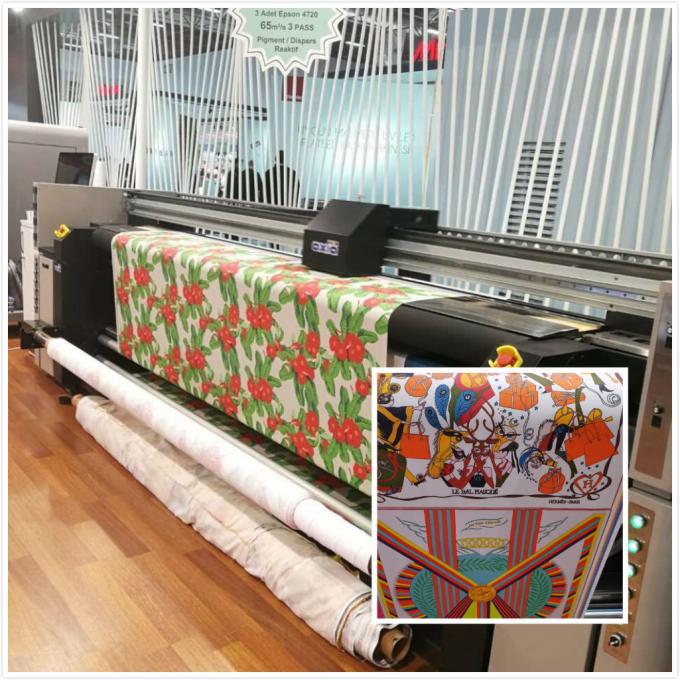

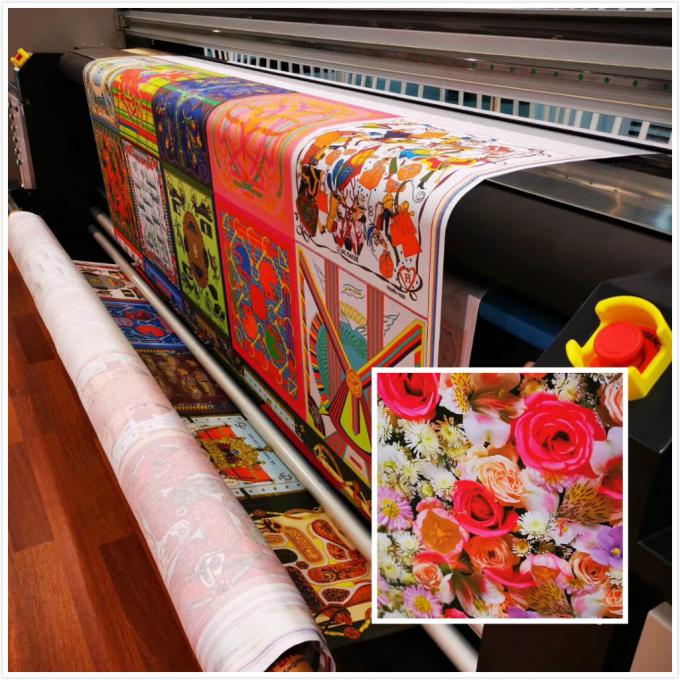

Printer Details:

Roll To Roll Epson Sublimation Printer Digital Printing Machine With Print Head
Roll To Roll Epson Sublimation Printer Digital Printing Machine With Print Head
Roll To Roll Epson Sublimation Printer Digital Printing Machine With Print Head


Roll To Roll Epson Sublimation Printer Digital Printing Machine With Print Head



Available Ink and Material:



1) Sublimation Ink (water based): mainly used in polyester fabric.

Completed fabric can use to make all kinds of flags,banner shows and for home decoration

2) Reactive Ink:For cotton,linen and silk etc.

After printing and heating,the materials can use to make clothes and scarf.

3) Pigment Ink:For all kinds of textile fabrics.

Roll To Roll Epson Sublimation Printer Digital Printing Machine With Print Head
Roll To Roll Epson Sublimation Printer Digital Printing Machine With Print Head



Description:

  • Printing and heating together,save space and time,easy operate
  • Machine has professional ICC Curve color management
  • No need any kind of interval paper.
  • Brand-new printing concert,unnecessarily handmade plate making
  • Computer control output directly
  • improved printhead board(with Epson Chip)and capping station,extend the printer lifespan and printing speed
  • Auto capping,cleaning function,feeding system equipped





Applications:

Our sublimation machine is CE certificated. And our sublimation  printer has been used most field such as flag printing, banner poster printing, textile digital printing, carpet digital printing, windows curtain digital printing and interior decoration printing ,indoor and outdoor printing etc.






How To Order:



Inquriy-------Quotation-------Order-------Production-------Quality Control-------Packing-------Shipping-------Delivery





After Sales Service:

1. With one year warranty and lifelong technical support.
2. Offer Video and operation manul,and the professional technical staff online guidance.
3. Guarantee prompt warranty service for main parts repairment and replacement by international courier
