Roll To Roll Heat Print Machine With Filter Fan 1.8m Working Width 220 - 240V

Roll To Roll Heat Print Machine With Filter Fan 1.8m Working Width 220 - 240V

    • Roll To Roll Heat Print Machine With Filter Fan 1.8m Working Width 220 - 240V
    • Roll To Roll Heat Print Machine With Filter Fan 1.8m Working Width 220 - 240V
  • Roll To Roll Heat Print Machine With Filter Fan 1.8m Working Width 220 - 240V

    Product Details:

    Place of Origin: Shanghai of China
    Brand Name: SAER
    Certification: CE Certification
    Model Number: SR 1800

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 set
    Price: Negotiation
    Packaging Details: Non fumigation wooden pakage(Package size:4350mm*1310mm*1230mm)
    Delivery Time: whithin 7 working days after get the payment
    Payment Terms: T/T, Western Union
    Supply Ability: 100 sets per month
    Contact Now
    Detailed Product Description
    Plate Type: Textile Color Fixing Machine Automatic Grade: Automatic
    Condition: New Color & Page: Multicolor(Dual KCMY)
    Working Width: 1.8m Working Type: Roll To Roll
    Power: 220-240V.16A.50/60HZ United Printers: Mutoh,Mimaki And Roland Etc
    High Light:

    heat print machine

    ,

    dye sublimation equipment

    ,

    dye sublimation machines

    Digital Fabric Printer Heater With Filter Fan To Make The Quick Dry Of Fabric


    Products Features:


    a. Can unit any piezo printers,like Mutoh,Mimaki and Roland

    b. Use far infrared blackbody tube radiation electro thermal heating,tube can work at least 10000 hours.
    c. Excellent heat insulation,can save more power.
    d. Easy to change the fabric roll without the interruption of the machine working.
    e . Intelligent PID Temperature Control
    f. Fabric feeding and Taking up Are synchronous
    g . Perfect oil & water collect solution in oven..
    h. Quick Tail Gas Treatment
    i. Convenient to Maintain


    Advantage:

    1. Exhaust without any smell, good environment need.
    2. Normal temperture for exhaust , no dangerouse for hot air out.
    3. High Efficiency cold system to make sure the exhaust temperture less then 25 Degree.
    4. Drawer-type device in a timely manner to facilitate the replacement of activated carbon to ensure that the emission of harmful gases.
    5. Easy to Set up and Operate
    6. Easy to open the caver to clean inside of oven
    7. Easy to change the active carbon from the filter
    8. Perfect heat insulation,can touch our machine without danger of scald

    Adopting the most advanced thermal energy technology low power consumption,saves electricity and conserve energy costs.


    Specifications:



    Product Name

    Direct Dye Sublimation machine

    Model

    SR 1800

    Blackbody Tube Working Model

    Far Infrared

    Mainly Use

    dry fabric ,appear and fix the printed color

    Power

    6.5kw(include filter fan)

    Maximum Width

    1800mm

    Heat Tube Dimension

    2000mm

    Working Temperature Control

    Room temperature ~250°C

    Temperature Control Method

    PID

    Tension Control

    3kg(optional counterweight to control tension)

    Maximum Speed

    0~2800mm/min

    Filter Fan Speed

    0~300m³/h

    Filter Fan Power

    400W

    Working Voltage

    220v 50hz

    Net Weight

    625kg(not include filter)

    Gross Weight

    1025kg(Include filter and package)

    Operating mode

    Instrument control, manual, automatic opera


    Application:

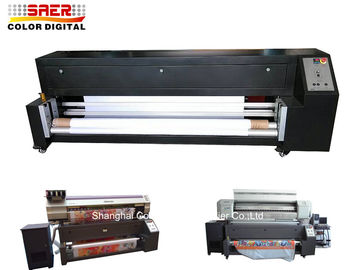

    Working together with piezo printers like Mutoh,Mimaki and Roland and filter fan to print and heat printed fabric,the completed fabric has been used most fields such as flag printing, banner poster printing, textile digital printing, carpet digital printing, windows curtain digital printing and interior decoration printing ,indoor and outdoor printing etc.



    Machine Details:

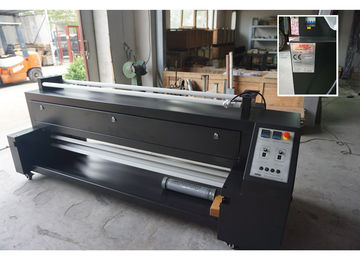

    Roll To Roll Heat Print Machine With Filter Fan 1.8m Working Width 220 - 240V 0
     Far infrared blackbody tube radiation electro thermal heating tube


     After Sales Service:

    1. With one year warranty time and lifelong technical support.
    2. Offer Video and operation manul,and the professional technical staff online guidance.
    3. Guarantee prompt warranty service for main parts repairment and replacement by international courier
