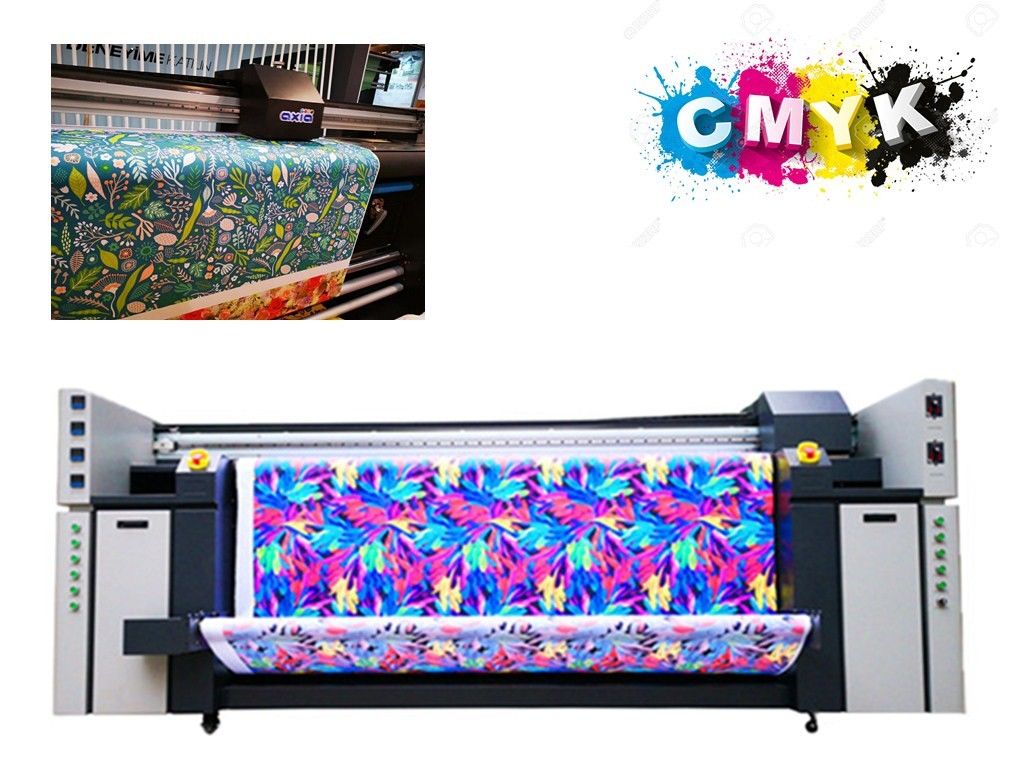

SAER Fabric Printing System / Automatic Roll To Roll Fabric Printer With High DPI

SAER Fabric Printing System / Automatic Roll To Roll Fabric Printer With High DPI

SAER Fabric Printing System / Automatic Roll To Roll Fabric Printer With High DPI

Product Details:

Place of Origin: China
Brand Name: SAER
Certification: CE Certification
Model Number: CSR 2200

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set
Price: Negotiation
Packaging Details: None fumigation wooden package
Delivery Time: 10 working days after the payment
Payment Terms: T/T
Supply Ability: 100 Sets Per Month
Contact Now
Detailed Product Description
Ink Supply Model: Continous Ink Supply Rip Software: Onyx
Ink Type: Dual CMYK Dye Sublimation Ink,pigment Ink,reactive Ink Media Type: Polyester,Cotton,Wool,Linen And Silk Textile Material Etc
Color Management: Superior ICC Profile Printing Interface: Computer Control The Output Directly
Media Handle: Automatic Feeder,automatic Take Up Media Processing: Roll To Roll + Auto Feeding + Auto Roll Up
Media Heating: Pre-heating & Post Color Fixation Minimum Resolution: 360dpi
Include: All-in-one Printing System And Filter
High Light:

DPI Roll To Roll Fabric Printer

,

SAER Fabric Printing System

,

Automatic Roll To Roll Fabric Printer

Product name:  SAER fabric printing system/Roll to roll fabric printer with high DPI


Contents



Combined with 2m all-in-one Digital Textile printing system and filter fan, sublimation printing type, printed material can use indoor and outdoor, can stand sunshine and no fade, also can be washed.


Product Features:



  • Saer Sublimation Textile Printer:with high resolution,outdoor and indoor applied,designed especially for printing of textile,sublimation Flag banner cloth etc.
  • This unit is double 4 color type printer,Adopts the Epson piezo technology, each head has 400 nozzles in 8 lines,long using life.
  • Using HIWIN mute guide rail.germany IGUS silent drag chain,make your printing environment more quiter.
  • Strong Media Feed-in system,for smooth printing on heavy materials,such as textile,sublimation banner,cloth and so on.
  • X axis and Y axis are using AC serve motors


Technical Details:



Brand Name SAER

Model

CSR 2200

Printer head technology

Piezo technology

Print Head Epson

Color mode

Double four color(C,M,Y,K)

Nozzles

(400 nozzles x 8 lines ) x3 heads

Printer head higher

1.5mm / 6mm ( Adjustable )

Ink supply model

Continuous ink supply

Maximum materials width

2200mm

Maximum printing width

2000mm (can custom machine size )

Roll diameter

3 Inch

Maximum weight for roll material

100kg

Interface

USB 2.0

RAM

128M

Print Power

AC100-120V./AC220-240V(Adaptive)   50/60Hz

Power consumption

Direct dye sublimation heater 3500W

Printer                               100w

Temperature

20-32°C

Humidity

40-60% Non-condensing

Available Media Polyester,cotton,silk,linen,textile material
Media Handle Automatic feeder,automatic take up
File Format

TIFF,JPEG,PDFand other common image formats

Control software Chinese version and English Version

Weight

Net Weigh: 833kg                  Gross Weight : 1019kg

Rip Software Onyx
Working Process Windows 10 / Windows 7







 Printing Resolution And Speed:











Printing resolution and speed



Resolution(dpi) speed
360*1800dpi(3 pass) 65m2/h

720*1220dpi(4 pass) 45m2/h

720*1800dpi(6 pass) 35m2/h







Ink and Material it can use

a. Sublimation Ink for Coated polyester fabric.
b. Reactive Ink for cotton,silk,linen etc
c. Pigment Ink for all kinds of textile fabrics.





After Sales Service:

1. One year warranty time.
2. Provide 24 hours online service.
  when you the first time operate the machine,our engineer will be online to guide you how to operate.
  When your machine gets any problem, our engineer will help you to solve it through remote control.
3. If necessary,we can send you new spare part.




Application:

Home Decoration:Print on polyester fabric to make windows curtain and Table cover,bed sheets and so on also can make Wall Stickers.
Outside Using :Advertising materials to make flag,pop up banner,tear drops banners,and so on.




Machine Details:

 SAER Fabric Printing System / Automatic Roll To Roll Fabric Printer With High DPI 0



CSR2200 Fabric priting system Epson 4720.pdf
