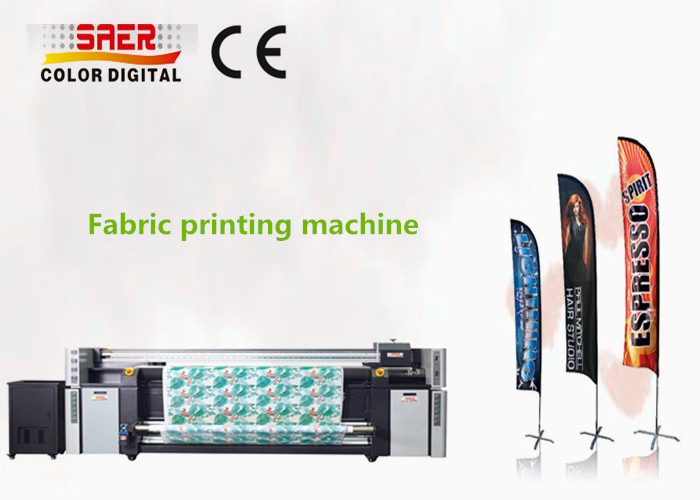

SAER Textile Printing And Drying System With Epson High DPI Head

SAER Textile Printing And Drying System With Epson High DPI Head

SAER Textile Printing And Drying System With Epson High DPI Head

Product Details:

Place of Origin: Shanghai Of China
Brand Name: SAER
Certification: CE
Model Number: CSR 3200

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: Negotiation
Packaging Details: Non Fumigation Wooden Package(4460*1160*1730mm)
Delivery Time: 10 working days after receive your payment
Payment Terms: T/T or Western Union
Supply Ability: 20 sets / month
Contact Now
Detailed Product Description
Product Name: Fabric Printing Machine Software: ONYX Software
Color Mode: Dual CMYK Voltage: 380V
Print Head: Epson High DIP Head *4 Rip Software: Indoor & Outdoor Advertising Field
Compatible OS: Windows 7& Windows 10 Include: One 3.2m All-in-one Printing System And One Filter
Ink: Sublimation ,Pigment Ink Material: Polyster,Cotton,Silk And Wool Fabric
High Light:

380V Textile Printing And Drying System

,

High DPI Head Textile Printing System

,

Dual CMYK Fabric Plotter Machine




Product name:  SAER Textile printing and dryting system with Epson High DPI head





Machine working speed:













Printing resolution and speed



Resolution(dpi) speed
360*1800dpi(3 pass) 85m2/h

720*1220dpi(4 pass) 65m2/h

720*1800dpi(6 pass) 45m2/h






Product Features:



1. Direct Print image into fabric

2. This machine with print and heat in one machine Save price and save place.

3. It is adopt EPSON printhead with high precision.

4. This machine max print width 3.2m





Machine Specifications:



Model CSR3200
Print head Piezo technology, Epson print head
Ink Sublimation Ink,Reactive ink and Pigment Ink
Color Mode Dual CMYK
Nozzles (180 nozzles*8 lines)*3 heads
Print Head Height 1.5mm/6mm(adjustable)
Ink Supply Mode Continuous Ink Supply
Max Material Width 3300mm



Max Printing Width 3200mm
Roll Owter Diameter 3 Inch
Max Weight For Roll Material 100KG
Interface USB3.0
RAM 128M
Printer Power 380V
Power Direct Dye Sublimation Heater 3500W
Printer 2000W
Environment temperature 20-32 degree
Weight 1120KG













Applications:

Interior Home Decoration: Print on polyester fabric to make windows curtain and Tablecloth, sheets and so on.
Outside: Advertising materials to make flag,roll up banner, act fast show and so on.




Competitive Advantage:



• Lower investment cost,3.2 meters width machine more usability
• One time molding mechanism design, reflect the stability and reliable of textile printer

• High speed
• Automatic high precision feeding system, make sure that the exact stationary into the cloth long figure carefree
• Using the sublimation ink, compatible with the advertising industry in backlit mode. more environmental, more beautiful effect.







Automatic feeding and collecting structure:




1,Intelligent infrared heater and fan drying system;
2,The machine through different quality tests is stable and competent enough for mass production requirement.
3,No Pinch roller, let the fabric no wrinkle and print smoothly

4,Keep the fabric good air permeability after sublimation

5,Printing groove designed specially for fabric printing to collect waste ink and keep

fabric clean.

6,Patented ink tanks keep ink supply constantly.









ONYX Rip Software:


1. Onyx rip sofware easy to complete the Photos / vector data,replacement of RGB / CMYK,and can easily to achieve color change.

2.Colorful color replacement function can easily reproduce the required color.




Our Support:



(1) 12-month warranty

(2) Free techinical traning

(3) On-site service

(4) Sample free

(5) Lifetime maintenace


After
Sales Service:



1. With one year warranty and lifelong technical support.

2. Offer Video and operation manual, and the professional technical staff online guidance.

3. Guarantee prompt warranty service for main parts repairment and replacement by international courier







FAQ:



1) How can I place order?
A: Contact us about your order details,we will prepare the PI .

2) How can I pay you?
A: uaually we accept T/T , Western Union,Money Gram.

3) How about the after-sale service?
A: Machine guarantee 12 month, printheads are no guarantee. We supply the on line technology even machine out of guarantee.

4) If I buy the machine, can you supply the ink, material, etc also?
A: Yes sure, please use the Original ink, it's better for the printer maintance, we can supply the relate material also.

5) I want to open a new business, can you give me some ideas?
A: Yes, we can, please tell me what products you want to make, and your request, we can offer you some projects.



Usage:



SAER Textile Printing And Drying System With Epson High DPI Head 0
