SAER Wall Paper / Table Cloth Printing System With Epson Heads

SAER Wall Paper / Table Cloth Printing System With Epson Heads

Large Image :  SAER Wall Paper / Table Cloth Printing System With Epson Heads

Verified Supplier

Shanghai of China

Verified Supplier

Shanghai of China

Detailed Product Description
Machine Working Size: 3.2m Color & Page: Multicolor(Dual CMYK)
Working Type: Roll To Roll Printing Material: Polyester, Cotton
Printhead: 4 Pcs Epson High Precision Head Resolution: 1800DPI
Ink Type: Sublimation Ink Product Name: Textile Sublimation Printer,fabric Printing Machine
High Light:

Wallpaper Digital Textile Printer

,

Epson Heads Table Cloth Printing System

,

Digital Textile Printing Machine 1800DPI

Product nameSAER Wall paper /Table cloth Printing System With Epson Heads



Machine working speed:











Printing resolution and speed



Resolution(dpi) speed
360*1080dpi(3 pass) 80m2/h

720*1200dpi(4 pass) 65m2/h

720*1800dpi(6 pass) 45m2/h



Digital Textile Printer Application:

Our  machine is CE certificated. What's more , our sublimation printer has been used most field such as flag printing, banner poster printing, textile digital printing, carpet digital printing, windows curtain digital printing and interior decoration printing ,indoor and outdoor printing etc.





Advantage:


·Far Infrared Blackbody Tube Radiation
1· Electro thermal Heating
2· Intelligent PID Temperature Control
3· Digital Tension Control
4· Feeding and Taking up Are synchronous
5· Vacuum Fan Delivery Is Controllable

6· Quick Tail Gas Treatment
7· Convenient to Maintain
8· Easy to Set up and Operate

9. Easy to load the media in and out oven during your machine working





Machine specification:



Product parameter
Model CSR3200
Print head Piezo technology, Epson print head
Ink Sublimation ink,pigment ink and reactive ink
Color model Dual CKMY
Nozzles (400 nozzles x 8 lines ) x4heads
Printer head higher 15mm / 6mm ( Adjustable )
Ink supply model Continuous ink supply
Max materials width 3300mm
Max printing width 3200mm (can custom the size )
Roll diameter 3 Inch
Maximum weight for roll material 100kg
Interface USB 3.0
RAM128 128M
Printer power AC220-240V./AC220-240Adaptive 50/60Hz
Sublimation machine AC220-240V. 16A. 50/60Hz
Power consumption Direct dye sublimation heater 3500W
Printer 5500w
Temperature 20-32°C
Humidity 40-60% Non-condensing
Weight Net Weight : 800kg Gross Weight : 920kg

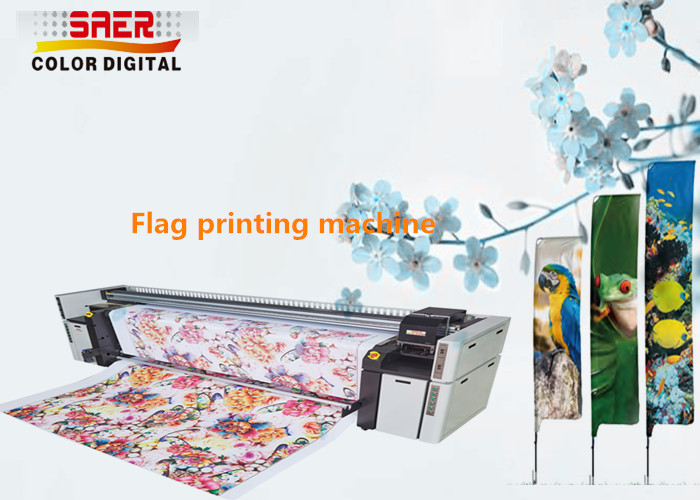

SAER Wall Paper / Table Cloth Printing System With Epson Heads 0



Machine Details Pictures:

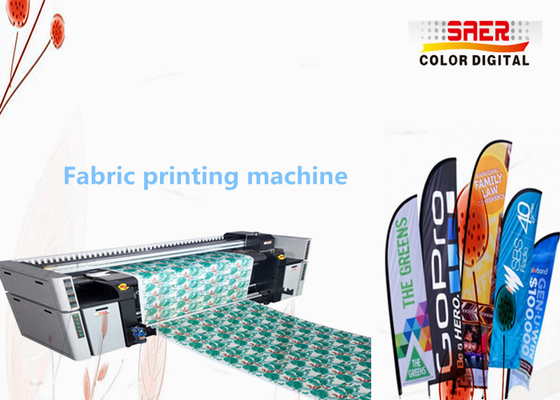

SAER Wall Paper / Table Cloth Printing System With Epson Heads 1

SAER Wall Paper / Table Cloth Printing System With Epson Heads 2

SAER Wall Paper / Table Cloth Printing System With Epson Heads 3



After Sales Service:

1. With one year warranty and lifelong technical support.
2. Offer Video and operation manul,and the professional technical staff online guidance.
3. Guarantee prompt warranty service for main parts repairment and replacement by international courier





Usage:



SAER Wall Paper / Table Cloth Printing System With Epson Heads 4
