Sublimation Flag Printing Machine / Digital Printing Machine With Three 4720 Print Heads

Sublimation Flag Printing Machine / Digital Printing Machine With Three 4720 Print Heads

    • Sublimation Flag Printing Machine / Digital Printing Machine With Three 4720 Print Heads
    • Sublimation Flag Printing Machine / Digital Printing Machine With Three 4720 Print Heads
  • Sublimation Flag Printing Machine / Digital Printing Machine With Three 4720 Print Heads

    Product Details:

    Place of Origin: Shanghai of China
    Brand Name: SAER
    Certification: CE Certification
    Model Number: CSR3200

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 set
    Price: 22,800USD
    Packaging Details: Non fumigation wooden package
    Delivery Time: 10 days after get the payment
    Payment Terms: T/T, Western Union
    Supply Ability: 50 sets per month
    Contact Now
    Detailed Product Description
    Compatible OS: Windows XP & Windows 7 Application: Indoor And Outdoor
    Type: Inkjet Printer Max Materials Width: 3300mm
    Max Printing Width: 3200mm . After-sales Service Provided: Engineers Available To Service Machinery Overseas

    Product name: SAER Sublimation Flag Printing Machine / SAER Digital Printing Machine





    Specification:



    Product parameter

    Model

    CSR3200

    Print head

    Piezo technology, Epson 4720 print head

    Ink

    Sublimation ink

    Color model

    Dual KCMY

    Nozzles

    ( 180 nozzles x 8lines ) x3 head

    Printer head higher

    15mm/6mm ( adjustable )

    Ink supply model

    Continuous ink supply

    Max materials width

    3300mm

    Max printing width

    3200mm







    Printing resolution and speed

    Resolution                       speed

    360 x 1800dpi                     65m2/h

    720 x 1200dpi                     45m2/h

    720 x 1800dpi                     35m2/h

    Roll owter diameter

    3 Inch

    Maximum weight for roll material

    100kg

    Interface

    USB 3.0

    RAM

    128M

    Printer power

    AC220-240V./AC220-240Adaptive   50/60Hz

    Sublimation machine

    AC220-240V. 16A. 50/60Hz

    Power consumption

    Direct dye sublimation heater              3500w

    Printer                               100w

    Temperature

    20-32°C

    Humidity

    40-60% Non-condensing

    Weigh

       890kg













    Description:





    1.Double Epson DX7 Print heads, faster speed, longer head life time. Feather printing funcation available, print heads correction and counterpoint are more easy.

    2. Using HIWIN mute guide rail. Germany IGUS silent drag chain make your printing environment more quit

    3.X axis and Y axis are using AC servo motors.

    4.Intelligent print head cleaning service, supplys safe and convenient print head cleaning and protection function.

    5.Equipped with the feeding motor Positive and Negative transfer function, taking and feeding constant tension transmission syst.

    6. The unique print platform design to make the cloth always smooth in the process of printing.

    7. Unique filtering lampblack system, make the picture very clean.

    8. Taking up and feeding roller are inflatable roller.

    9. Taking up and feeding fabric are smoothly

    10. Low cost and no need any transfer paper.

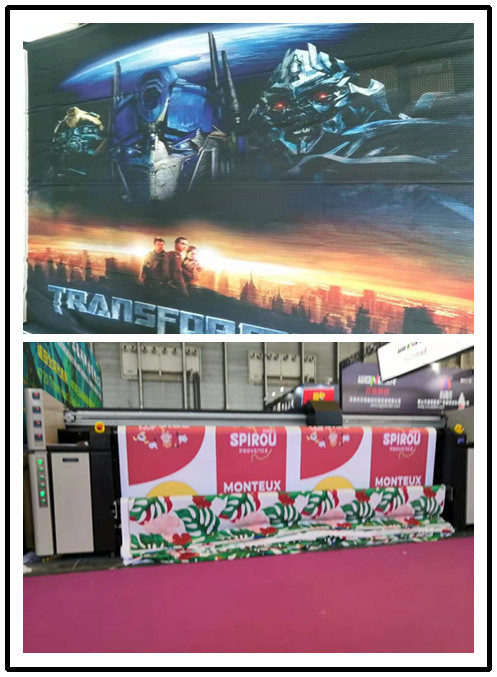

    Printed samples :



    Sublimation Flag Printing Machine / Digital Printing Machine With Three 4720 Print Heads



    Sublimation Flag Printing Machine / Digital Printing Machine With Three 4720 Print Heads





    Applications:



    Interior Home Decoration: Print on polyester fabric to make windows curtain and Tablecloth, sheets and so on.

    Outside: Advertising materials to make flag, banner, act fast show and so on.





    After Sales Service:

    1. With one year warranty and lifelong technical support.
    2. Offer Video and operation manual, and the professional technical staff online guidance.
    3. Guarantee prompt warranty service for main parts repairmen and replacement by international courier
