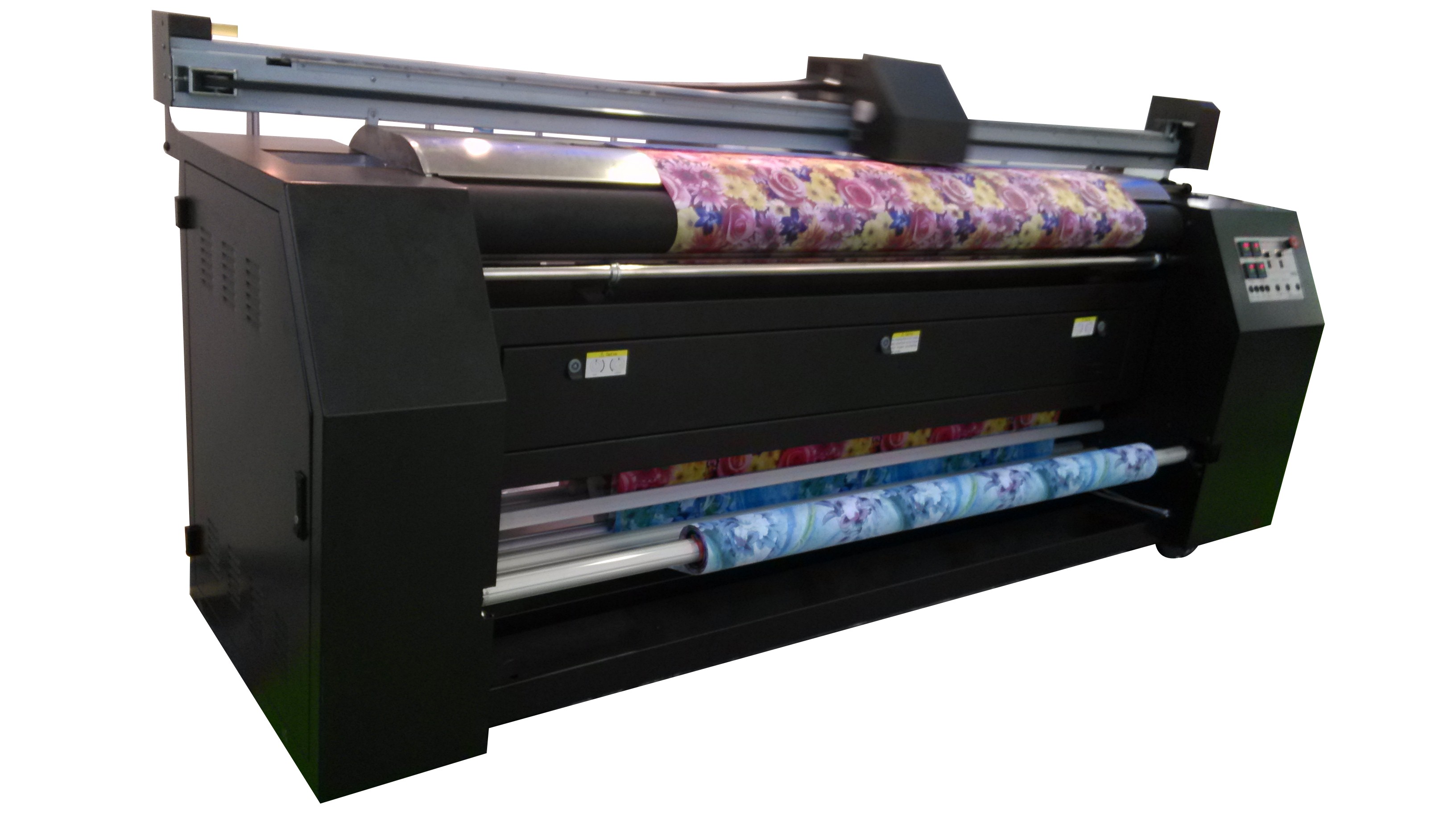

Textile Directly Sublimation Printing Machine With Water Based / Dispersion Ink

Textile Directly Sublimation Printing Machine With Water Based / Dispersion Ink

    • small.img.alt
    • small.img.alt
  • large.img.alt

    Product Details:

    Place of Origin: Shanghai of China(Mainland)
    Brand Name: SAER
    Certification: CE
    Model Number: CSR 2200

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 Set
    Price: Negotiation
    Packaging Details: None fumigation wooden package(Package size: 3350*1070*1550mm)
    Delivery Time: 7 working days after get your payment
    Payment Terms: T/T, Western Union
    Supply Ability: 100 Sets Per Month
    Contact Now
    Detailed Product Description
    Product Name: Direct Roll To Roll Textile Printer Max Print Width: 2200mm
    Resolution: 360-1440dpi Working Type: Roll To Roll
    Print Head Amount: 2 Pieces Color Mode: Dual CMYK
    Ink Supply Model: Continuous Ink Supply Max Printing Width: 2300mm
    Rip Software: Maintop 5.3 Rip Software Or Onyx Optinoal Ink: Dye Sublimation Ink / Dispersive Ink
    Material: Polyester,Cotton,Wool And Silk Textile Material Automatic Grade: Automatic
    Print Head: EPSON DX7
    High Light:

    cloth printing machine


    inkjet printer

    Directly Roll To Roll Textile Material Printer With Waterbased / Dispersive Ink
    Quick Details:
    2.2m All-in-one Directly Roll To Roll Fabric / Textile Printer With Filter Fan,Print and heat together at the same time,directly print on fabric material and then use high temperature to dry the printed ink.
    1. Low cost:About 2 degree electricity cost per hour with non-stop running.
    2. High productivity:40m2 / hour of the speed.
    3. Dye Sublimation system:print onto fabric with sublimation ink.
    4. Directly print on textile:no need any transfer paper.
    5. Good after sales service:1 year maintenance period.


    CSR 2200


    Print head

    Piezo technology, Epson DX7 print head


    Dye sublimation ink / dispersive ink

    Color model

    Double 4 Color(CMYK)

    Print Head

    (180 nozzles x 8 lines ) x2 pieces of head

    Printer head higher

    15mm / 6mm ( Adjustable )

    Ink supply model

    Continuous ink supply

    Max materials width


    Max printing width


    Maximum weight for roll material



    USB 2.0



    Printer power

    AC220-240V./AC220-240Adaptive   50/60Hz

    Sublimation machine

    AC220-240V. 16A. 50/60Hz

    Power consumption

    Direct dye sublimation heater 3500W

    Printer                               5500w




    40-60% Non-condensing


    Net Weight : 764kg                  Gross Weight : 886kg

    Print Speed:

    Printing resolution and speed

    Resolution speed
    720x360dpi (2pass) 40m²/h
    360x1080dpi(3pass) 32m²/h
    720x720dpi(4pass) 22m²/h
    720x1080dpi(6pass) 18 m²/h

    720x1440dpi(8pass) 12 m²/h

    1. Guide Rail
    Adopt HIWIN mute guide rail with two slide blocks,effenciently increase rigidity and torsion resistance,higher precision and mute silence on printing.
    2. AC Servo motors
    X axis and Y axis are using AC servo motors,for precision and stable motion control.
    3. Integrated Anti-collision sensor
    In each side of printhead carriage to prevent the printhead from unexpected damage,the sensors automatically detect the printing plate or any force on the way prevents any possible strike to the print heads.
    4. Standard duel print heads
    Maximize the performance of the productivity and high print quallity.
    5. Bulk ink supply system
    Just case your mind from worrying about filling ink again and again.
    6. Print and heat together.
    Equipped with air filter for direct print to fabric and color fixation,convenient and easy operating.
    7. Compatible ink.
    Compatible with reactive ink,sublimation ink and pigment ink,suitable for broad fabric printing.
    8. Feeding & Take-up system
    Specifically made tensioning media feeding & take-up system for broad fabrics and accurate feeding.

    • Interior Home Decoration:Print on polyster fabric to make windows curtain and Tablecloth,sheets and so on.
    • Outside:Advertising materials to make all kinds of flags,adverting flags and so on.
    • Cloth:Print on cotton fabric with pigment ink to make clothes.

    Products Printer Can Make:

    Textile Directly Sublimation Printing Machine With Water Based / Dispersion Ink 0Textile Directly Sublimation Printing Machine With Water Based / Dispersion Ink 1
    Textile Directly Sublimation Printing Machine With Water Based / Dispersion Ink 2Textile Directly Sublimation Printing Machine With Water Based / Dispersion Ink 3

    Rip Software:
    1. Easy to complete the Photos / vector data,replacement of RGB / CMYK,and can easily to achieve color change.
    2.Colorful color replacement function can easily reproduce the required color.

    Warranty & Services

    (1) One year of warranty time.
    (2) About the after-sales service:
    A. If the printer has problem, the client can take a picture or video to the technician.
    B. The technician will teach the client to fix and operate the printer through the internet.
    C.We will ask the client to send back the board which is wrong to check it.
    D.The technician is full of experience, and the sales also keep in touch with the client.
    Machine Details:
    Textile Directly Sublimation Printing Machine With Water Based / Dispersion Ink 4
