Shanghai Color Digital Supplier Co., Ltd.
Professional Digital Textile Printing Equipment & Relevant Materials General Supplier
Place of Origin: | Shanghai of China(Mainland) |
Brand Name: | SAER |
Certification: | CE |
Model Number: | CSR 2200 |
Minimum Order Quantity: | 1 Set |
---|---|
Price: | Negotiation |
Packaging Details: | None fumigation wooden package(Package size: 3350*1070*1550mm) |
Delivery Time: | 7 working days after get your payment |
Payment Terms: | T/T, Western Union |
Supply Ability: | 100 Sets Per Month |
Product Name: | Direct Roll To Roll Textile Printer | Max Print Width: | 2200mm |
---|---|---|---|
Resolution: | 360-1440dpi | Working Type: | Roll To Roll |
Color Mode: | Dual CMYK | Ink Supply Model: | Continuous Ink Supply |
Max Printing Width: | 2300mm | Rip Software: | Maintop 5.3 Rip Software Or Onyx Optinoal |
Ink: | Dye Sublimation Ink / Dispersive Ink | Material: | Polyester,Cotton,Wool And Silk Textile Material |
Automatic Grade: | Automatic | ||
Highlight: | dye sublimation equipment,sublimation heater |
Directly Roll To Roll Textile Material Printer With Waterbased / Dispersive Ink
Quick Details:
2.2m All-in-one Directly Roll To Roll Fabric / Textile Printer With Filter Fan,Print and heat together at the same time,directly print on fabric material and then use high temperature to dry the printed ink.
characteristics:
1. Low cost:About 2 degree electricity cost per hour with non-stop running.
2. High productivity:40m2 / hour of the speed.
3. Dye Sublimation system:print onto fabric with sublimation ink.
4. Directly print on textile:no need any transfer paper.
5. Good after sales service:1 year maintenance period.
Specifications:
Model |
CSR 2200 |
Brand | SAER |
Print head |
Piezo technology, Epson DX7 print head |
Ink |
Dye sublimation ink / dispersive ink |
Color model |
Double 4 Color(CMYK) |
Print Head |
(180 nozzles x 8 lines ) x2 pieces of head |
Printer head higher |
15mm / 6mm ( Adjustable ) |
Ink supply model |
Continuous ink supply |
Max materials width |
2300mm |
Max printing width |
2200mm |
Maximum weight for roll material |
100kg |
Interface |
USB 2.0 |
RAM |
1.2M |
Printer power |
AC220-240V./AC220-240Adaptive 50/60Hz |
Sublimation machine |
AC220-240V. 16A. 50/60Hz |
Power consumption |
Direct dye sublimation heater 3500W |
Printer 5500w |
|
Temperature |
20-32°C |
Humidity |
40-60% Non-condensing |
Weight |
Net Weight : 764kg Gross Weight : 886kg |
Print Speed:
|
Resolution speed |
720x360dpi (2pass) 40m²/h | |
360x1080dpi(3pass) 32m²/h | |
720x720dpi(4pass) 22m²/h | |
720x1080dpi(6pass) 18 m²/h | |
720x1440dpi(8pass) 12 m²/h |
Features:

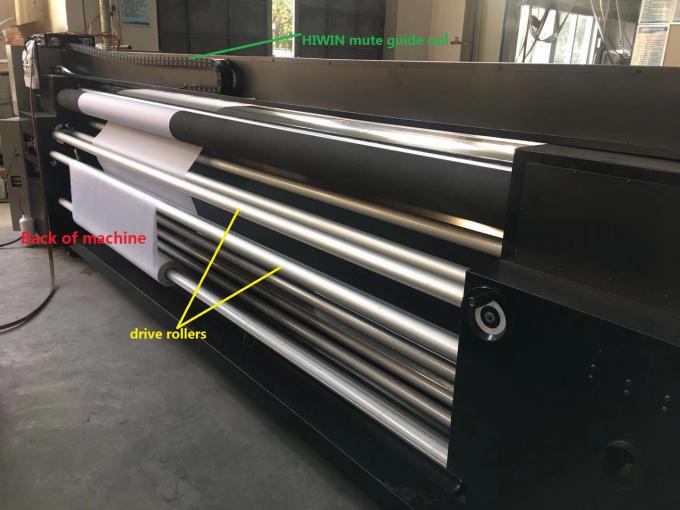

1. Guide Rail
Adopt HIWIN mute guide rail with two slide blocks,effenciently increase rigidity and torsion resistance,higher precision and mute silence on printing.
2. AC Servo motors
X axis and Y axis are using AC servo motors,for precision and stable motion control.
3. Integrated Anti-collision sensor
In each side of printhead carriage to prevent the printhead from unexpected damage,the sensors automatically detect the printing plate or any force on the way going.it prevents any possible strike to the print heads.
4. Standard duel print heads
Maximize the performance of the productivity and high print quallity.

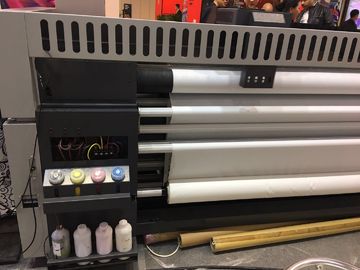

5. Bulk ink supply system
Just case your mind from worrying about filling ink again and again.
6. Print and heat together.
Equipped with air filter for direct print to fabric and color fixation,convenient and easy operating.
7. Compatible ink.
Compatible with reactive ink,sublimation ink and pigment ink,suitable for broad fabric printing.
8. Feeding & Take-up system
Specifically made tensioning media feeding & take-up system for broad fabrics and accurate feeding.
Application:
Products Printer Can Make:
Rip Software:
1. Easy to complete the Photos / vector data,replacement of RGB / CMYK,and can easily to achieve color change.
2.Colorful color replacement function can easily reproduce the required color.
(1) One year of warranty time.
(2) About the after-sales service:
A. If the printer has problem, the client can take a picture or video to the technician.
B. The technician will teach the client to fix and operate the printer through the internet.
C.We will ask the client to send back the board which is wrong to check it.
D.The technician is full of experience, and the sales also keep in touch with the client.

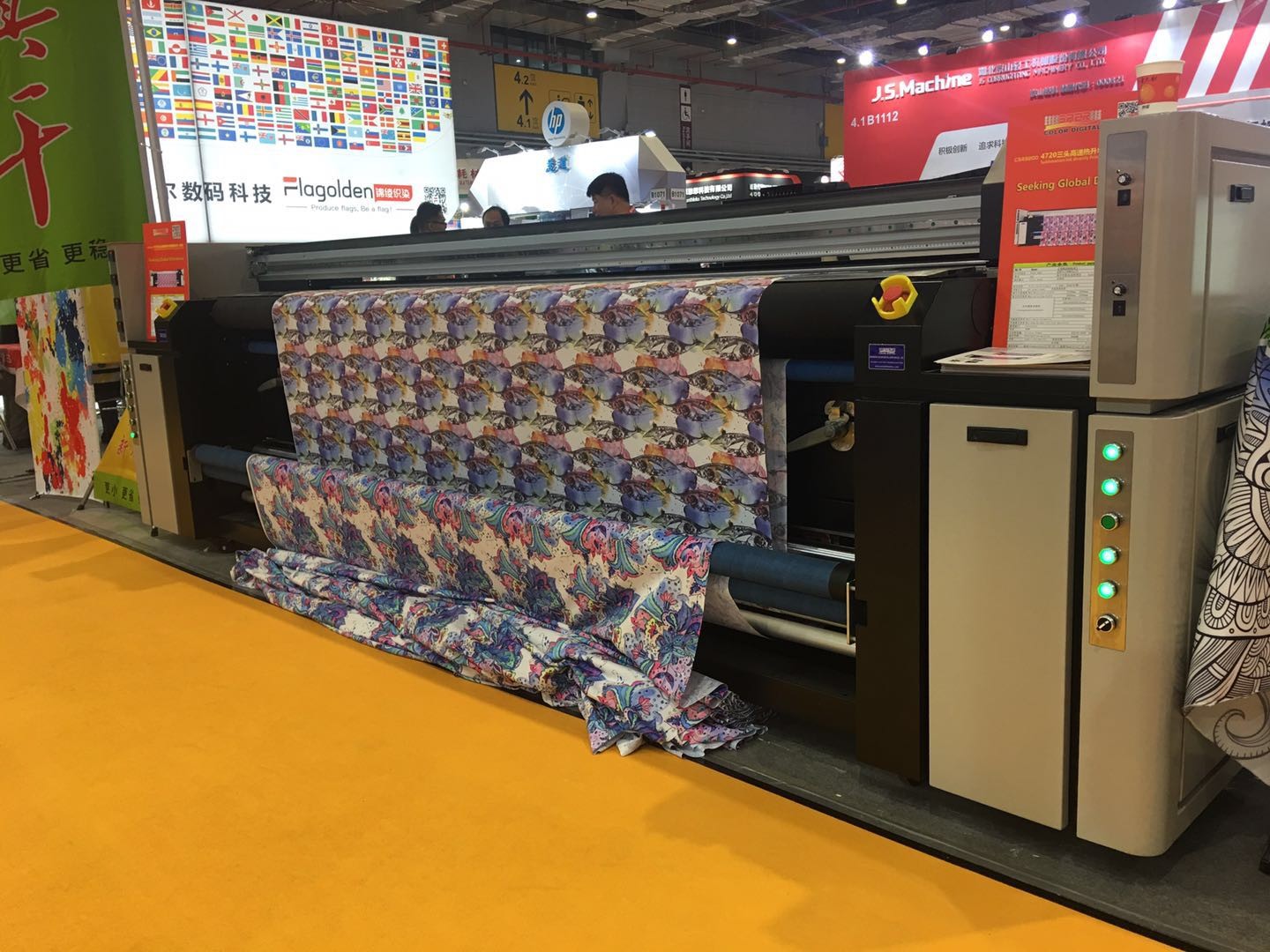

Machine Details:
