USB Data Interface Fabric Printing Equipment Low Consumption For Led Box Fabric

USB Data Interface Fabric Printing Equipment Low Consumption For Led Box Fabric

Large Image :  USB Data Interface Fabric Printing Equipment Low Consumption For Led Box Fabric

Verified Supplier

Shanghai of China(Mainland)

Verified Supplier

Shanghai of China(Mainland)

Detailed Product Description
Usage: Advertising Flag Making,Indoor & Outdoor Working Method: Computer Input Print Data
Print Media Type: All Kinds Of Natural Fiber,synthetic Fiber,mainly Polyester,cotton Data Interface: USB
Heating System: Front Heater,print Platform Heat,back Heat Print Head: Epson DX5 * 2 Pieces
Print Mode: Continous Bulk Ink System Color & Page: Multicolor(C,M,Y,K)
Type: Inkjet Printer Ink Type: Water Based Ink(sublimation / Pigment)
Compatible OS: Win XP & Win 7 / 8 / 10 Rip Software: Onyx
High Light:

mimaki digital printing machine

,

digital fabric printer

,

continuous inkjet printer

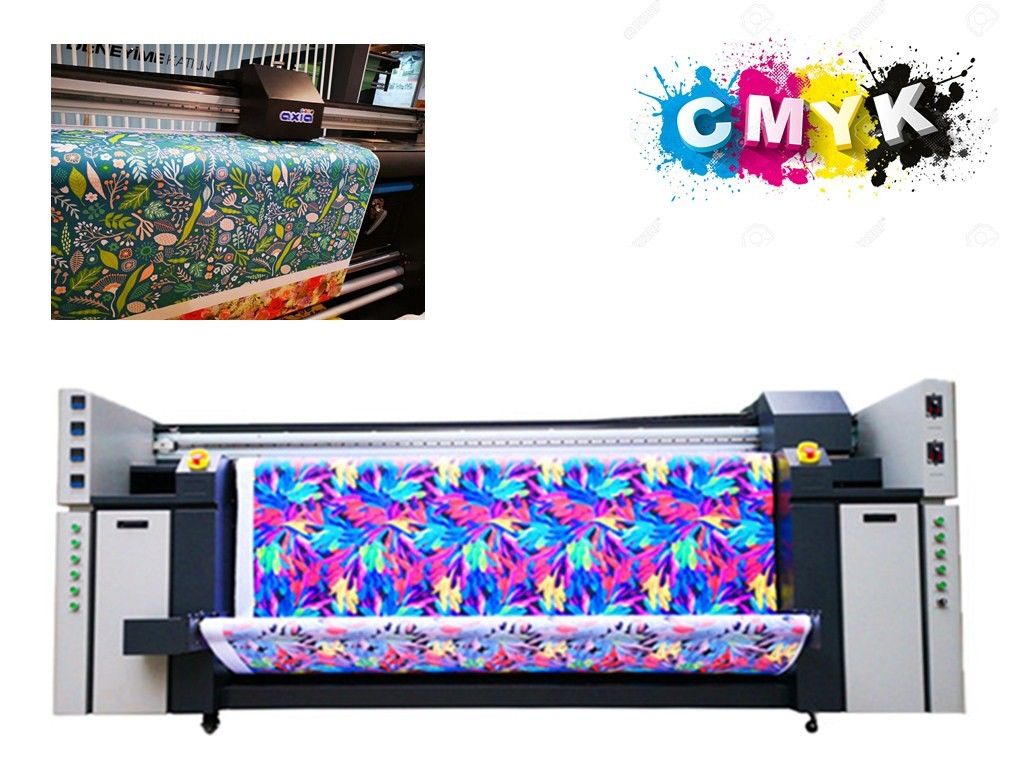

CMYK Colour Digital Fabric Printing Plotter For LED-box Fabric




Contents



One 3.2m integrated printer system(with the function of print and dry)

One filter fan to absorb waste air,protect the environment.



Technical Detais



Model CSR 3200 Fabric plotter
Printhead  2pcs micro Piezo Epson DX5 Printheads
Color Mode 4 colors(Cyan,Magenta,Yellow,Black)
Nozzles (180 nozzles * 8 lines)*2 heads
Height of Print Head 1.5mm - 6mm(adjustable)
Ink Supply Mode Continuous Ink Supply
Medium Textile Fabric
Media Adsorption system Intelligent multi-function,multi stage adjustable intensity
Media feeder Yes
Media take-up Yes
Ink Type Dye sublimation ink,water-based ink,pigment ink
Auto cleaning system automatic cleaning and moisturizing spray has blockades flash function
Heating system Intelligent embedded segment heating system
Three Heating Sections Pre-heater,printing bed heater,rear heater
Control software print Console



Rip Software Onyx
Picture Type .JPG .TIFF
Max Printing Width 3200mm(126”)
Roll Owter Diameter 3 Inch
Max Weight For Roll Material 100KG
Interface USB 2.0
RAM 128M
Printer Power 380V
Power

Direct Dye Sublimation Heater 3500W

Printer 2000W

Environment temperature 20-32 degree
Weight Gross weight:1439kg   Net weight:1130kg
Packge Dimension W4560*D1180*H1560mm + W550*D600*1080


Printing Resolution And Speed

Resolution(DPI)          Print Mode                         Speed
720*360dpi(2 pass)    Sketch Mode               40 sqm per hour
360*1080dpi(3 pass)  Standard Mode            32
sqm per hour
720*720dpi(4 pass)    High quality Mode        22sqm per hour
720*1080dpi(6 pass)  Precision Mode             18sqm per hour
720*1440dpi(8 pass)  High-precision Mode     12sqm per hour

Advantages


 Print and Heat integrated,can be finished by a device directly, eliminating the need for printed material or the installation do extra work



1. Constant temperature control:temperature adjustable

2. Low Consumption,high efficiency.

3. Print and heat together,make the picture drying fast and more gorgeous,save the labor cost effectively,reduce the print rejection rate.

4. The finished product can be directly obtained by one set of equipment.



Onyx Rip Software

1. Easy to complete the Photos / vector data,replacement of RGB / CMYK,and can easily to achieve color change.
2.Colorful color replacement function can easily reproduce the required color.



Main Features



1. Simple but strong structure, easy to make installation and maintenance.

2. Adopts two pcs of Epson DX5 printhead, decreased investment amount but get a significant higher speed.

3. High-precision media feeding gear disc molded ensures concentricity and media feeding uniformly



characteristics

1. Low cost:About 2 degree electricity cost per hour with non-stop running.
2. High productivity:40m2 / hour of the speed.
3. Dye Sublimation system:print onto fabric with sublimation ink.
4. Directly print on textile:no need any transfer paper.
5. Ink Cost:10 - 15 ml / sqm.



Specifications



1. CMYK four Colors.

2. 3.2m Print Width.

3. Suitable for Water Based Ink, Sublimation Ink, Pigment Ink.

4. Indoor Signs, Textile Printing, Decoration and so on.

5. Automatic Feeding, Taking Up, Cleaning, Heating.

This type of high-tech inkjet printer is mainly used for advertising industry. It can present pictures vividly.



Available Ink and Material



1) Sublimation Ink (water based): mainly used in polyester fabric.

Completed fabric can use to make all kinds of flags,banner shows and for home decoration

2) Reactive Ink:For cotton,linen and silk etc.

After printing and heating,the materials can use to make clothes and scarf.

3) Pigment Ink:For all kinds of textile fabrics.



USB Data Interface Fabric Printing Equipment Low Consumption For Led Box Fabric 0


Description

1. Double Epson DX5 Print heads,faster speed,longer head life time.Feather printing funcation available,print heads correction and counterpoint are more easy.
2. Using HIWIN mute guide rail.Germany IGUS silent drag chain make your printing environment more quiter
3. X axis and Y axis are using AC servo motors.
4. Intelligent print head cleaning service,supplys safe and convenient print head cleaning and protection function.
5. Equipped with the feeding motor Positive and Negative transfer function,taking and feeding constant tension transmission syst.
6. The unique print platform design to make the cloth always smooth in the process of printing.
7. Unique filtering lampblack system,make the picture very clean.
8. Taking up and feeding roller are inflatable roller.
9. Taking up and feeding fabric are smoothly
10.Low cost and no need any transfer paper.



Applications


Clothing

SportsWear, T-Shirts, Accessories

HomeTextiles

BedLinen, Upholstery, Table Cloths

Soft-Signage

Mirror Flag / Fabric Banner / Ice Silk Mat Making



Digital textile sublimation printer is applied in digital textile printing industry to replace traditional printing techniques,which is the solution of both large batch & small batch,low cost,fast printing requirements.the production printing speed and printing width achieves the possibility of textile fabrics printing turning into digital printing method,which is adequately according with customer requirements of sample printing,home textile printing,sign advertisement printing,digital textile printing,building decoration textile printing,flag textile printing,cloth printing,soft-signage,flagbanner printing,wall decoration printing and so on.


USB Data Interface Fabric Printing Equipment Low Consumption For Led Box Fabric 1





What Service Can We Supply


1) Before place order:

We provide a suitable project according to your environment and production capacity.

2) Installation training service:

We dispatch technician to your factory for installation ,testing and training.

3) Quality Guarantee:

The whole set of machine guarantee is 1 year.



USB Data Interface Fabric Printing Equipment Low Consumption For Led Box Fabric 2
