Water Based Ink Directly Fabric Printer For Sublimation Printing CE Approval

Water Based Ink Directly Fabric Printer For Sublimation Printing CE Approval

Large Image :  Water Based Ink Directly Fabric Printer For Sublimation Printing CE Approval

Verified Supplier

Shanghai Of China

Verified Supplier

Shanghai Of China

Detailed Product Description
Product Name: Directly Fabric Sublimation Machine Max Media Width: 3300mm
Color & Page: Multicolor Color Mode: 4 Color(Cyan,Magenta,Yellow,Black)
Voltage: 380V Gross Power: 5.5KW
Print Head: Epson DX7 * 2 Pcs Plate Type: Sublimation Printer
Rip Software: Onyx Compatible OS: Windows XP & Windows 7
Combine With: One 3.2m All-in-one Printing System And One Filter Ink: Sublimation,Reactive,Pigment Ink
Material: Polyester,Cotton,Silk,linen And Wool Fabric Weight: 1120kg
High Light:

continuous inkjet printer

,

digital fabric printer

Directly Fabric Printer For Sublimation Printing With Water Based Ink





Product Description:

Combined with 3.2m all-in-one printing system and filter fan,sublimation printing type,printed material can use indoor and outdoor,can stand sunshine and no fade,also can be washed.



Specifications



Model

CSR3200

Printhead Technology

Piezo Inkjet

Print Head Epson DX7

Ink Type

Diperse Dye Ink(Sublimation ink)

Color Mode

4 color(Cyan,Magenta,Yellow,Black)

Nozzles

(180 nozzles*8 lines)*2 heads

Print Head Height

1.5mm / 6mm(adjustable)

Ink Supply Mode

Continuous Ink Supply

Max Media Width

3300mm



Max Printing Width

3200mm

Printing Resolution And Speed

Resolution(DPI)          Speed

720*360dpi(2 pass)      40m2/h

360*1080dpi(3 pass)     32m2/h

720*720dpi(4 pass)      22m2/h

720*1080dpi(6 pass)     18m2/h

720*1440dpi(8 pass)     12m2/h

Roll Owter Diameter

3 Inch

Max Weight For Roll Material

100KG

Interface

USB 2.0

RAM

128M

Printer Power

380V

Power

Direct Dye Sublimation Heater 3500W

Printer                       2000W

Environment

temperature    20-32 degree

Weight

1120KG

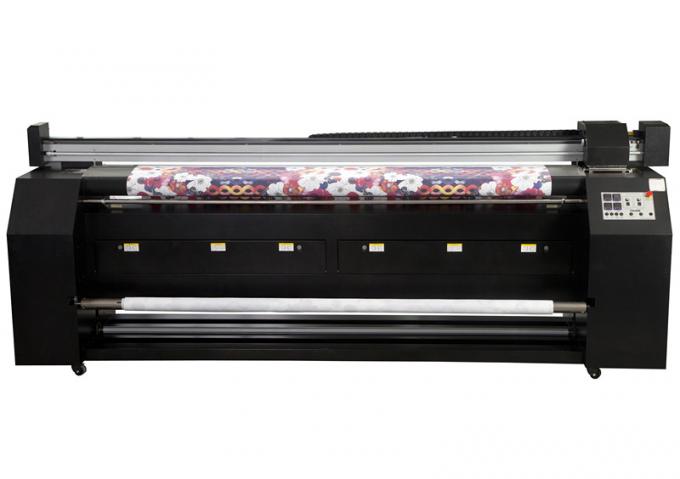

 Water Based Ink Directly Fabric Printer For Sublimation Printing CE Approval 0

                                                                         CSR 3200

Features:



1.Double Epson DX7 Print heads, faster speed, longer head life time. Feather printing funcation available, print heads correction and counterpoint are more easy.

2.Using HIWIN mute guide rail. Germany IGUS silent drag chain make your printing environment more quit

3.X axis and Y axis are using AC servo motors.

4.Intelligent print head cleaning service, supplys safe and convenient print head cleaning and protection function.

5.Equipped with the feeding motor Positive and Negative transfer function, taking and feeding constant tension transmission syst.

6. The unique print platform design to make the cloth always smooth in the process of printing.

7. Unique filtering lampblack system, make the picture very clean.

8. Taking up and feeding roller are inflatable roller.

9. Taking up and feeding fabric are smoothly

10. Low cost and no need any transfer paper.



Rip Software:

1. Easy to complete the Photos / vector data,replacement of RGB / CMYK,and can easily to achieve color change.
2.Colorful color replacement function can easily reproduce the required color.

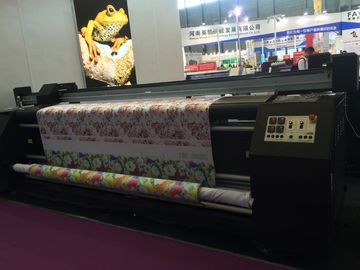

Water Based Ink Directly Fabric Printer For Sublimation Printing CE Approval 1

Advantages:

  • Suitable for small lot, Personality, Diversity Printing, Without Limit Of Quantity.
  • The printed image color is bright and vivid with nice color gamut.
  • Rapid speed and various printer to choose
  • It is simple and leave out heat transfer process, one person can operates with high efficency and short time.
  • Low cost and no need of any kind transfer paper, liner breaking the highest costs performance
  • Printed image color is bright and vivid to meet high quality printing equipment

Applications:



Interior Home Decoration: Print on polyester fabric to make windows curtain and Tablecloth, sheets and so on.

Outside: Advertising materials to make flag, banner, act fast show and so on.



Available Ink and Material:



1) Sublimation Ink (water based): mainly used in polyester fabric.

Completed fabric can use to make all kinds of flags,banner shows and for home decoration

2) Reactive Ink:For cotton,linen and silk etc.

After printing and heating,the materials can use to make clothes and scarf.

3) Pigment Ink:For all kinds of textile fabrics.



How To Order:



Inquriy-------Quotation-------Order-------Production-------Quality Control-------Packing-------Shipping-------Delivery



Water Based Ink Directly Fabric Printer For Sublimation Printing CE Approval 2



After Sales Service:





1. With one year warranty and lifelong technical support.

2. Offer Video and operation manual, and the professional technical staff online guidance.

3.  Guarantee prompt warranty service for main parts repairment and replacement by international courier
