Automatic Large Size Heat Print Machine With High Temperature

Automatic Large Size Heat Print Machine With High Temperature

Large Image :  Automatic Large Size Heat Print Machine With High Temperature

Verified Supplier

Shanghai of China

Verified Supplier

Shanghai of China

Detailed Product Description
Product Name: Heat Sublimation Machine Color & Page: Multicolor
Dimensions(L*W*H): 4350mm*1310mm*1230mm Usage: Textile Fixation
Working Width: 3200mm Color Mode: Dual CMYK
Take Up Working Method: Directly Out Or Roll To Roll Gross Weight: 680kg

Automatic Large Size Heat Sublimation Machine With High Temperature





Consist of



3.2M Sublimation machine and one filter



Products Features



1. Far infrared blackbody tube radiation electro thermal heating,our tube can work at least 10000 hours.

2. Our machine have excellent heat insulation,can save more power for you.

3. Easy to load the media in and out oven during your machine working

4. Blackbody tube have more thermal efficiency

5. Intelligent PID Temperature Control

6. Feeding and Taking up Are synchronous
7. Perfect oil & water collect solution in oven..

8. Quick Tail Gas Treatment
9. Convenient to Maintain
10. Easy to Set up and Operate

11. Easy to open the caver to clean inside of oven
12. Easy to change the active carbon from the filter

13. Perfect heat insulation,can touch our machine without danger of scald



Adopting the most advanced thermal energy technology low power consumption,saves electricity and conserve energy costs.



Specifications



Product Name

Direct Heat Sublimation machine

Model

SR 3200

Blackbody Tube Working Model

Far Infrared

Mainly Use

Appear and fix the printed ink color

Power

6.5kw(include filter fan)

Maximum Width

3200mm

Heat Tube Dimension

3400mm

Working Temperature Control

Room temperature ~250°C

Temperature Control Method

PID

Tension Control

3kg(optional counterweight to control tension)

Maximum Speed

0~2800mm/min

Filter Fan Speed

0~300m³/h

Filter Fan Power

400W

Working Voltage

220v 50hz

Machine size

4350mm*1310mm*1230mm(not include filter

Net Weight

625kg(not include filter)

Gross Weight

1025kg(Include filter and package)

Operating mode

Instrument control, manual, automatic opera

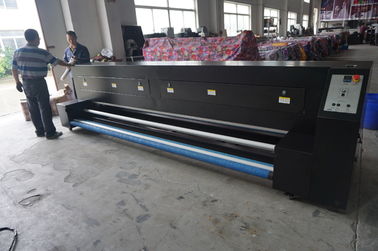

Machine Detail Picture:



Automatic Large Size Heat Print Machine With High Temperature



Automatic Large Size Heat Print Machine With High Temperature



Advantage



1. Sublimation machine includes a  heater and a  filter.
2. It can be joint with any piezo printer such as Mutoh,Mimaki, Roland etc. printer for sublimation printing.
3. Sulimation machine can fix the color of the printed fabric and make color brighter by high temperature.

4. the printed fabric by sublimation machine has good effect , it can wash and  does not fade.



Applications



Interior Home Decoration:Print on polyster fabric to make windows curtain and Tablecloth,sheets and so on.

Outside:Advertising materials to make flag,banner,act fast show and so on.



After Sales Service



1. With one year warranty and lifelong technical support.

2. Offer Video and operation manul,and the professional technical staff online guidance.

3. Guarantee prompt warranty service for main parts repairment and replacement by international courier



Heated Samples



Automatic Large Size Heat Print Machine With High Temperature
