Automatic Heat Sublimation Machine Fabric Heating Unit With CE Certificated

Verified Supplier


Detailed Product Description
Available Ink: Sublimation,Reactive,Pigment Ink Contents: One 1.8 M Sublimation Dryer Machine With Filter Fan
Voltage: AC 220-240V,50HZ United Printer: Mutoh,Mimaki,Roland And Any Piezo Printers
Heat Media: Polyester,Cotton,Linen And Silk,Wool Etc Machine Type: Stand Alone Or Unit With Any Piezo Printer
Print Speed: 20-100m / Hour Application: Fabric Material
Mainly Use For: Heat Ink To Appear Real Color On Fabric Heat Tube Length: 2.2m
Machine Location: Under Or In Front Of Printer
High Light:

heat print machine


dye sublimation equipment


dye sublimation machines

Automatic Fabric Heating Unit To Appeal The Real Color Of Fabric Material​

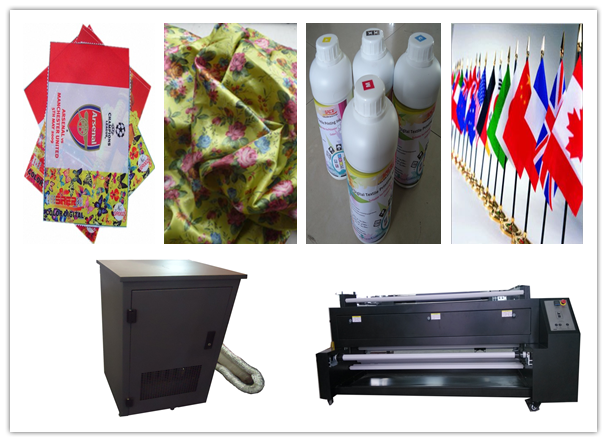

Contain Two Parts:

  1. One 1.8m Sublimation Dryer,high temperature of heat tube to fix the color of printed fabric to show the picture photo quality.
  2. The other is Activated Carbon Filter Fan to collect wasted gas.

This machine mainly aimed at the post processing program for printing cloth,dry the wet ink,then appear the real painting you want.



Product Description:


Product Name Sublimation Fabric Heating Unit
Brand SAER
Product Model SR 1800
Power 3.8KW
Working Width 1800MM
Heat Tuble Dimension 2200MM
Working Temperture 100 to 250 °C
Tension 0 to 1.2Kg
Working Voltage AC 220~240V 50HZ
Take Up working Method Stand out or united with printers
Available Printer Mimaki, Roland , Mutoh and any Piazo Printer
Speed 20-100m / hour

 Automatic Heat Sublimation Machine Fabric Heating Unit With CE Certificated 0
Automatic Heat Sublimation Machine Fabric Heating Unit With CE Certificated 1


Filter fan specification


Power 360W
Working Voltage 220~240V 50HZ
Package Size 620X565X1100mm
Weight 60 Kg
Input Air temperature >200 °C
Out put Air temperature <25 °C
Filter Medium Active Carbon
Certification CE Certificated

1>. Together with printer,save space and time,easy to operate.,stable and low repair cost.
2>. Can seperately operate,improve the working speed.
3>. Can Unit any piezo printers,like Mutoh Mimaki and Roland.
4>. Far infrared blacktube heating,can work at least 10000 hours.
5>.Can work 24 hours without interception.
6>. Broad market space,wide range of project service,high rate of return on investment.
7>. Equipped with filter fan,can achieve the effect of environmental and no smoke out.
8>. Can united many printers at one time,reduce the cost


Features :

  • Easy to load the media in and out oven during your machine working
  • Easy to open the caver to clean inside of oven
  • Special clutch to control the feeding up system working or stop , it’s easy for you loading the roll materials.
  • Easy to change the active carbon from the filter
  • Adopting the most advanced thermal energy technology low power consumption, saves electricity and conserve energy costs.
  • No smell ,No Pollution.
  • Passed CE certification.
  • The printed fabic after sublimation heater process can directly make clothes,no fade,and can be washed.
  • The machine has an easy learing curre,you will be able to use it perfectly within 3 days.


Product Advantages:


1. Many size to choose,from 1.4m to 5m

2. High Speed,can reach 100m per hour

3. water based ink,no pollution

4. Uniform Speed,make the fabric picture consonant


Application :
Color appear and fixation of Textile, flag, poster, banner, tablecloth, wall pictures, interior decoration, curtain,indoor and outdoor printing etc
After Sales Service:
1. One year warranty
2. Provide 24 hours online service.
when you first time operate the machine,our engineer will be online to guide you how to operate machine.
When your machine gets any problem, our engineer will help you to solve it through remote control.
3. If necessary,we can send you new spare part.


Automatic Heat Sublimation Machine Fabric Heating Unit With CE Certificated 2

Automatic Heat Sublimation Machine Fabric Heating Unit With CE Certificated 3
