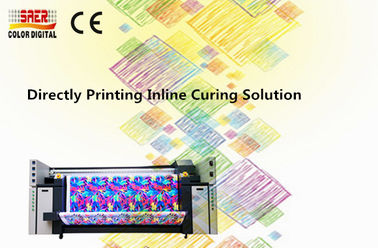

High Resolution Directly Fabric Printing Machine With 3 Pieces Epson 4720

High Resolution Directly Fabric Printing Machine With 3 Pieces Epson 4720

Large Image :  High Resolution Directly Fabric Printing Machine With 3 Pieces Epson 4720

Verified Supplier

Shanghai , China

Verified Supplier

Shanghai , China

Detailed Product Description
Condition: New Automatic Grade: Automatic
Voltage: 110V/220V Print Head: 3 Piecese Epson 4720
Maximum Print Width:: 2m Material Withd: 2.1m
Ink Type: Pigment Ink, Sublimation Ink
High Light:

3 Heads Banner Printing Machine


High Resolution Fabric Printing Machine


2.1m Fabric Printing Machine

Product name:  High Resolution Directly Flag Printing Machine with 3 pieces Epson 4720 head







1. Constant temperature heating box

rapidly heating, good leakproofness ensure the temperature constant

2. Green smoke extraction filtration system

filter and sublimation smoke efficiently, keep the environment clean

3. open ink-supply system

Compatible with many brands of sublimation ink, easily to control the printing cost.



Product Parameter
Model type CSR2200
Print head 3 pieces Epson 4720
Ink Sublimation ink, pigment ink
Number of nozzles (400 nozzles*8lines)*3head
Color Dual CMYK
Print head high 1.5mm/6mm (adjustable)
Ink supply mode Continuous ink supply
Max materials width 2200mm
Max printing width 2000mm
Roll outer diameter 3 inch
Maximum weight for roll material 100kg
Interface USB2.0
RAM 128M
Printer Power AC100-120V/AC220-240V(adjustive) 50/60HZ
Power Heater 3.5kw
Printer 100w
Temperature 30-32℃
Humidity 40-60%(Non-condensing)








1.Three Epson 4720 Print heads, faster speed, longer head life time. Feather printing function available, print heads correction and counterpoint are more easy.

2. Using HIWIN mute guide rail. Germany IGUS silent drag chain make your printing environment more quit

3.X axis and Y axis are using AC servo motors.

4.Intelligent print head cleaning service, supply safe and convenient print head cleaning and protection function.

5.Equipped with the feeding motor Positive and Negative transfer function, taking and feeding constant tension transmission system.

6. The unique print platform design to make the cloth always smooth in the process of printing.

7. Unique filtering lampblack system, make the picture very clean.

8. Taking up and feeding roller are inflatable roller.

9. Taking up and feeding fabric are smoothly




Machine working Speed:



Printing resolution and speed


Resolution(dpi) speed
360*1800dpi(3 pass) 65m2/h
720*1220dpi(4 pass) 45m2/h
720*1800dpi(6 pass) 35m2/h





Competitive Advantage:



-Low cost and no need any transfer paper.

- Vibrant and bright colors
- Very good shelf-life
- Optimal ink fluidity and printability through piezo-heads
- Excellent image definition in direct printing
- Very good fastness properties

- Competitive price

- Good reducibility

- Appropriate for different ICC








Interior Home Decoration: Print on polyester fabric to make windows curtain and Tablecloth, sheets and so on.

Outside: Advertising materials to make flag, banner, act fast show and so on.


High Resolution Directly Fabric Printing Machine With 3 Pieces Epson 4720 0
