Product Details:
|
| Product Name: | Direct Textile Printing Machine | Application: | Indoor & Outdoor |
|---|---|---|---|
| Max Resolution: | 1440 DPI | Color Mode: | Dual CMYK |
| Voltage: | 380V | Gross Power: | 5500W |
| Print Head Type: | Two Epson DX7 Print Head | Plate Type: | Roll To Roll Printing Machine |
| Rip Software: | Maintop 5.3 Rip Software Or Neostampa 8 Optional | Compatible OS: | Win XP & Win 7 |
| Printing Width: | 3.2m | Print Ink: | Sublimation,Reative And Pigment |
| Print Media: | Coated Polyster,Wool,Silk And Cotton | ||
| Highlight: | sublimation printing machine,cmyk printing machine |
||
Epson Print Head Digital Textile Printing Machine
Specifications:
Model | CSR3200 |
Print head | Piezo technology,Epson DX7 printer head*2 |
Ink | Sublimation Ink |
Color Mode | Dual CMYK |
Nozzles | (180 nozzles*8 lines)*2 head |
Print Head Height | 1.5mm/6mm(adjustable) |
Ink Supply Mode | Continuous Ink Supply |
Max Material Width | 3300mm |
Max Printing Width | 3200mm |
Printing Media | Coated polyster fabric |
Roll Owter Diameter | 3 Inch |
| Printing Resolution And Speed | Resolution(DPI) Speed |
Max Weight For Roll Material | 100KG |
Interface | USB 2.0 |
RAM | 128M |
Printer Power | 380V |
Power | Direct Dye Sublimation Heater 3500W |
Environment | temperature 20-32 degree |
Weight | 1120KG |
Advantages:
1. Direct textile sublimation printer can directly print on polyster fabric,no need any transfer paper.
2. The printed fabic after sublimation heater process can directly make banner flag etc,no fade.
3. The machine has an easy learing curre,you will be able to use iy perfectly within 3 days.
Description:
1. Double Epson DX7 Print heads,faster speed,longer head life time.Feather printing funcation available,print heads correction and counterpoint are more easy.
2. Using HIWIN mute guide rail.Germany IGUS silent drag chain make your printing environment more quiter
3. X axis and Y axis are using AC servo motors.
4. Intelligent print head cleaning service,supplys safe and convenient print head cleaning and protection function.
5. Equipped with the feeding motor Positive and Negative transfer function,taking and feeding constant tension transmission syst.
6. The unique print platform design to make the cloth always smooth in the process of printing.
7. Unique filtering lampblack system,make the picture very clean.
8. Taking up and feeding roller are inflatable roller.
9. Taking up and feeding fabric are smoothly
10.Low cost and no need any transfer paper.

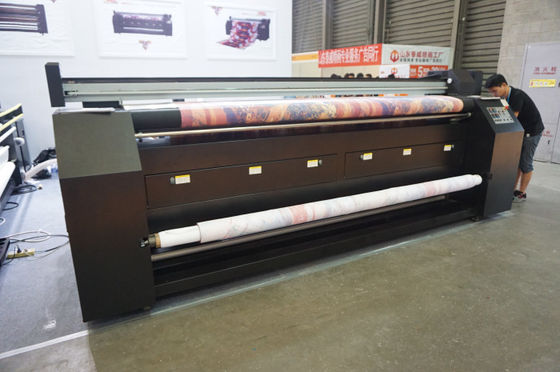

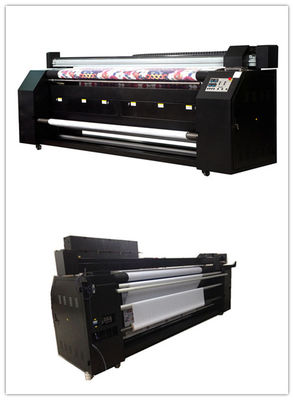

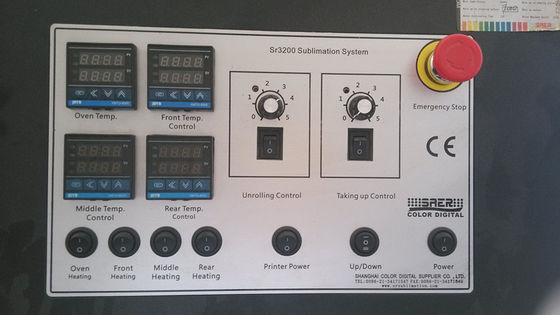

Detail Picture Of Machine:
Applications:
Our sublimation machine is CE certificated. And our sublimation printer has been used most field such as flag printing, banner poster printing, textile digital printing, carpet digital printing, windows curtain digital printing and interior decoration printing ,indoor and outdoor printing etc.
Printing Samples:
After Sales Service:
1. With one year warranty and lifelong technical support.
2. Offer Video and operation manul,and the professional technical staff online guidance.
3. Guarantee prompt warranty service for main parts repairment and replacement by international courier
