Shanghai Color Digital Supplier Co., Ltd.
Professional Digital Textile Printing Equipment & Relevant Materials General Supplier
 |
| Place of Origin: | Shanghai Of China |
| Brand Name: | SAER |
| Certification: | CE |
| Model Number: | CSR 2200 |
| Minimum Order Quantity: | 1 Set |
|---|---|
| Packaging Details: | None fumigation wooden package(Package size: 3350*1070*1550mm) |
| Delivery Time: | 10 working days after receive your payment |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 30 Sets Per Month |
| Ink Supply Model: | Continuous Ink Supply | Max Resolution: | 1400DPI |
|---|---|---|---|
| Rip Software: | ONYX | Type: | Inkjet Printer |
| Print Head: | Epson *4 Pcs | Color Model: | Dual CMYK |
| Max Materials Width: | 2000mm | Compatible OS: | Win XP&Win 7 |
| Ink: | Sublimation And Pigment Ink | Material: | Polyster,Cotton |
| Highlight: | 1400DPI Inkjet Textile Printing Machine,2000mm Width Textile Printing Machine,Dual CMYK Inkjet Printing Machine |
||

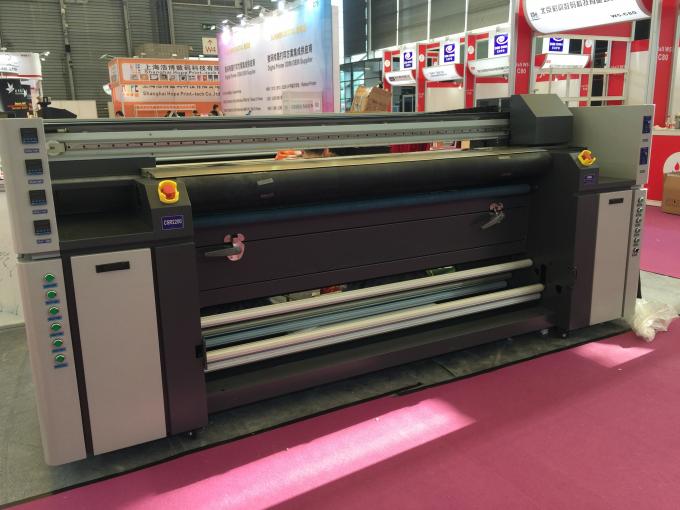

Product name: High Speed Inkjet Fabric Printing Machine With Epson Print Head
4 Print Head Working Speed:
360*1800dpi(3 pass) 80m²/h
720*1200dpi(4 pass) 65m²/h
720*1800dpi(6 pass) 45m²/h
Machine Specification:
| Product Parameter | |
| Model type | CSR3200 |
| Print head | 4 pieces Epson hign resolution |
| Ink | Sublimation ink, pigment ink |
| Number of nozzles | (400 nozzles*8lines)*4head |
| Color | Dual CMYK |
| Print head high | 1.5mm/6mm (adjustable) |
| Ink supply mode | Continuous ink supply |
| Max materials width | 3300mm |
| Max printing width | 320000mm |
| Roll outer diameter | 3 inch |
| Maximum weight for roll material | 100kg |
| Interface | USB2.0 |
| RAM | 128M |
| Printer Power | AC100-120V/AC220-240V(adjustive) 50/60HZ |
| Power | Heater 3.5kw |
| Printer 100w | |
| Temperature | 30-32℃ |
| Humidity | 40-60%(Non-condensing) |
Description:
1· Electro thermal Heating
2· Intelligent PID Temperature Control
3· Digital Tension Control
4· Feeding and Taking up Are synchronous
5· Vacuum Fan Delivery Is Controllable
6· Quick Tail Gas Treatment
7· Convenient to Maintain
7· Easy to Set up and Operate
9. Easy to load the media in and out oven during your machine working
10. Easy to open the caver to clean inside of oven
11. Special clutch to control the feeding up system working or stop , it’s easy for you loading the roll materials.
12. Easy to change the active carbon from the filter
13. Adopting the most advanced thermal energy technology low power consumption, saves electricity and conserve energy costs.
Advantages:
Application:
Interior Home Decoration:Print on polyster fabric to make windows curtain and Tablecloth,sheets and so on.

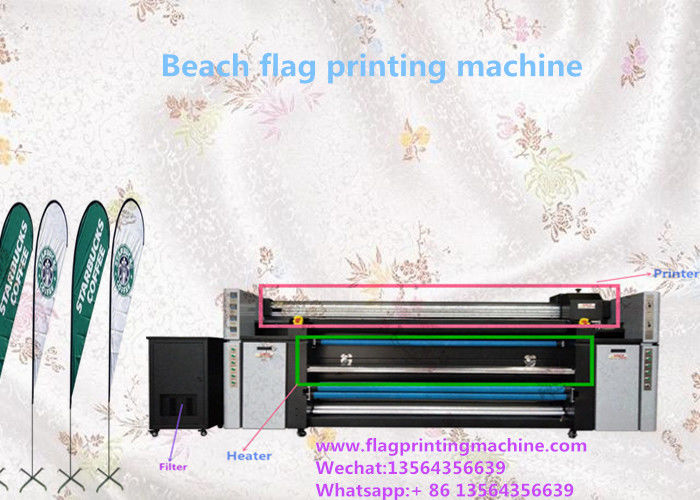

Outside:Advertising materials to make flag,banner,act fast show and so on.
Printed Samples:

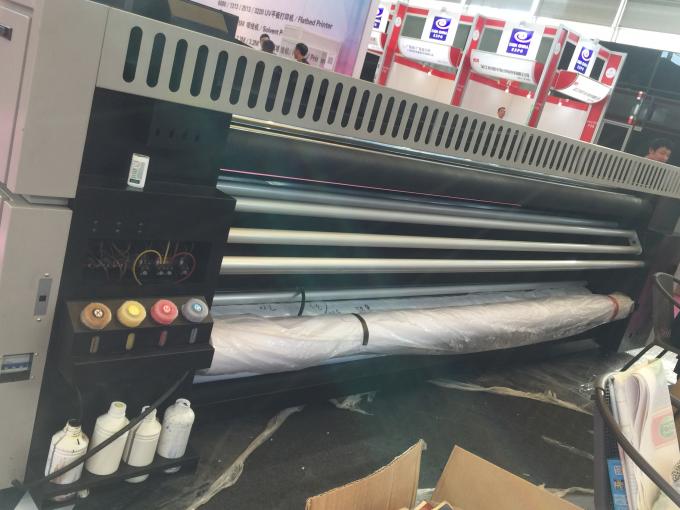

Machine Back Details:
After Sales Service:
1. With one year warranty and lifelong technical support.
2. Offer Video and operation manul,and the professional technical staff online guidance.
3. Guarantee prompt warranty service for main parts repairment and replacement by international courier
Package and delivery:
