2.2m Flag Sublimation Printing Machine / Sign Printing Machine Continuous Ink Supply

2.2m Flag Sublimation Printing Machine / Sign Printing Machine Continuous Ink Supply

    • 2.2m Flag Sublimation Printing Machine / Sign Printing Machine Continuous Ink Supply
    • 2.2m Flag Sublimation Printing Machine / Sign Printing Machine Continuous Ink Supply
  • 2.2m Flag Sublimation Printing Machine / Sign Printing Machine Continuous Ink Supply

    Product Details:

    Place of Origin: Shanghai Of China
    Brand Name: SAER
    Certification: CE
    Model Number: CSR 2200

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 Set
    Price: Negotiation
    Packaging Details: None fumigation wooden package(Package size: 3350*1070*1550mm)
    Delivery Time: 10 working days after receive your payment
    Payment Terms: T/T, Western Union
    Supply Ability: 50 Sets Per Month
    Contact Now
    Detailed Product Description
    Product Name: 2.2m Directly Fabric Printer Max Resolution: 1440DPI
    Print Head: Epson DX5*2 Color Model: Dual CMYK
    Ink Supply Model: Continuous Ink Supply Max Materials Width: 2300mm
    Rip Software: Maintop 5.3 Rip Software Compatible OS: Win XP&Win 7
    Ink: Sublimation,Reactive And Pigment Ink Material: Polyster,Cotton,Wool And Silk
    High Light:

    large format printers

    ,

    fabric printer machine

    ,

    large format plotter

    Product name: Flag sublimation printer / Pop up printer





    Printiing speed :







    Printing resolution and speed

    Resolution speed
    720x360dpi (2pass) 40m²/h
    360x1080dpi(3pass) 32m²/h
    720x720dpi(4pass) 22m²/h
    720x1080dpi(6pass) 18 m²/h
    720x1440dpi(8pass) 12 m²/h



    Description:



    1· Electro thermal Heating
    2· Intelligent PID Temperature Control
    3· Digital Tension Control
    4· Feeding and Taking up Are synchronous
    5· Vacuum Fan Delivery Is Controllable
    6· Quick Tail Gas Treatment
    7· Convenient to Maintain
    7· Easy to Set up and Operate

    9. Easy to load the media in and out oven during your machine working
    10. Easy to open the caver to clean inside of oven
    11. Special clutch to control the feeding up system working or stop , it’s easy for you loading the roll materials.
    12. Easy to change the active carbon from the filter
    13. Adopting the most advanced thermal energy technology low power consumption, saves electricity and conserve energy costs.







    Specifications:



    Product parameter
    Model CSR2200
    Print head Piezo technology, Epson DX5 printer head
    Ink Sublimation ink,pigment ink and reactive ink
    Color model Dual KCMY
    Nozzles (180 nozzles x 8 lines ) x2 heads
    Printer head higher 15mm / 6mm ( Adjustable )
    Ink supply model Continuous ink supply
    Max materials width 2300mm
    Max printing width 2200mm
    Roll diameter 3 Inch
    Maximum weight for roll material 100kg
    Interface USB 2.0
    RAM 1.2M
    Printer power AC220-240V./AC220-240Adaptive 50/60Hz
    Sublimation machine AC220-240V. 16A. 50/60Hz
    Power consumption Direct dye sublimation heater 3500W
    Printer 5500w
    Temperature 20-32°C
    Humidity 40-60% Non-condensing
    Weight Net Weight : 7646kg Gross Weight : 886kg







    Advantages:

    • Directly print designs on fabric material,no need any transfer paper
    • After the high temperature to the fabric color fixation,the printed image color is bright and vivid with nice color gamut
    •  Rapid speed can reach 22 sqm / hour in 4 pass 1440 Dpi resolution
    •  Working process is simple, one person can operates with high efficency and short time.
    •  Low cost, liner breaking the highest costs performance

    Application:



    Interior Home Decoration:Print on polyster fabric to make windows curtain and Tablecloth,sheets and so on.

    Outside:Advertising materials to make flag,banner,act fast show and so on.



    2.2m Flag Sublimation Printing Machine / Sign Printing Machine Continuous Ink Supply 0

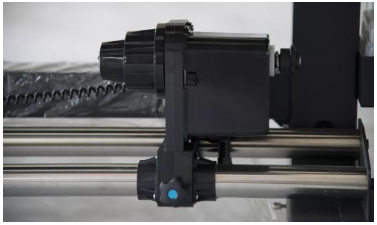

    Machine Details:



    2.2m Flag Sublimation Printing Machine / Sign Printing Machine Continuous Ink Supply 1







    After Sales Service:



    1. With one year warranty and lifelong technical support.

    2. Offer Video and operation manul,and the professional technical staff online guidance.

    3. Guarantee prompt warranty service for main parts repairment and replacement by international courier
