8-Head Epson Digital Fabric Printer 3.2m Width Sublimation Textile Machine

8-Head Epson Digital Fabric Printer 3.2m Width Sublimation Textile Machine
8-Head Epson Digital Fabric Printer 3.2m Width Sublimation Textile Machine 8-Head Epson Digital Fabric Printer 3.2m Width Sublimation Textile Machine

Large Image :  8-Head Epson Digital Fabric Printer 3.2m Width Sublimation Textile Machine

Product Details:
Place of Origin: Shanghai Of China
Brand Name: SAER
Certification: CE
Model Number: CSR 3200
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiation
Packaging Details: Non Fumigation Wooden Package(5000*1200*1950mm)
Delivery Time: 15 working days after receive your payment
Payment Terms: T/T or Western Union
Supply Ability: 20 sets / month

8-Head Epson Digital Fabric Printer 3.2m Width Sublimation Textile Machine

Description
Voltage: 380V Print Head: Epson High DIP Head *8
Usage: Indoor & Outdoor Advertising Field Compatible OS: Windows 7& Windows 10
Include: One 3.2m All-in-one Printing System And One Filter Ink: Sublimation Ink ,Pigment Ink
Material: Polyster,Cotton,Silk And Wool Fabric Gross Power: 12000W
Interface: USB3.0 Product Name: Multicolor Digital Fabric Printing Machine
Color Mode: CMYK Software: ONYX Software
Highlight:

Epson digital fabric printer

,

8-head sublimation textile machine

,

3.2m wide fabric plotter

Good Quality Textile Printer 8 Printheads Large Format Sublimation Printing Machine Clothes Printer
Product Specifications
Voltage 380V
Print head Epson high DIP head *8
Usage Indoor & Outdoor Advertising Field
Compatible OS Windows 7 & Windows 10
Include One 3.2m All-in-one Printing System And One Filter
Ink Sublimation ink, Pigment Ink
Material Polyester, Cotton, Silk and Wool Fabric
Gross Power 12000W
Interface USB3.0
Product Name Multicolor Digital Fabric Printing Machine
Color Mode CMYK
Software ONYX software
Printing Speed and Resolution
Resolution (4colors) Speed
720*1200dpi 4pass 116㎡/h
720*2400dpi 8pass 52㎡/h
360*1200dpi 2pass 240㎡/h
Technical Specifications
Parameter Value
Model CSR3200
Print head Piezo technology, Epson i3200 printer head*8 heads
Ink Sublimation ink, Pigment ink optional
Color mode 4 colors (CMYK)
Print head height Adjustable (material most thick is 3mm)
Number of nozzles 400 nozzles*8lines
Ink supply mode Continuous ink supply
Max materials width 3300mm
Max printing width 3200mm
Roll diameter 3 Inch
Max weight for roll materials 100kg
Interface USB 3.0
RAM 128M
Printer with heater power AC210-230V 50/60Hz 16A
Power consumption Sublimation Heater 3500w, Printer 1200W
Environment Temperature:25-35℃, Humidity:35-65℃(Non-condensing)
Rip Software Onyx
Net Weight 1500kg
Key Features
  • Direct Print image into fabric
  • Print and heat in one machine - saves cost and space
  • Adopts EPSON printhead with high precision
  • Maximum print width of 3.2m
Automatic Feeding and Collecting Structure
  • Intelligent infrared heater and fan drying system
  • Stable and competent for mass production requirements
  • No Pinch roller - prevents fabric wrinkles for smooth printing
  • Maintains fabric air permeability after sublimation
  • Special printing groove design collects waste ink and keeps fabric clean
  • Patented ink tanks ensure constant ink supply
Competitive Advantages
Lower investment cost with 3.2 meters width machine for more usability
One time molding mechanism design ensures stability and reliability
High speed operation
Automatic high precision feeding system ensures exact stationary positioning
Uses sublimation ink compatible with advertising industry in backlit mode - more environmentally friendly with beautiful effects
RIP Software

Onyx RIP software easily completes Photos/vector data, replacement of RGB/CMYK, and achieves color change. Colorful color replacement function easily reproduces required colors.

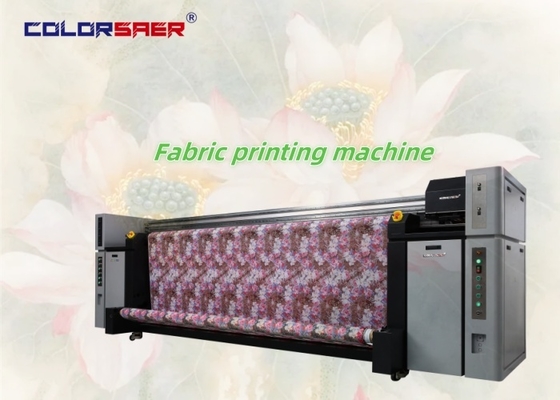

8-Head Epson Digital Fabric Printer 3.2m Width Sublimation Textile Machine 0
After-Sales Service
  • One year warranty with lifelong technical support
  • Includes video tutorials, operation manual, and professional online guidance
  • Prompt warranty service for main parts repair and replacement via international courier
Our Support
  • 12-month warranty
  • Free technical training
  • On-site service
  • Free samples
  • Lifetime maintenance
Applications

Interior Home Decoration: Print on polyester fabric for window curtains, tablecloths, sheets, etc.

Outdoor Advertising: Create flags, roll-up banners, fast show materials, etc.

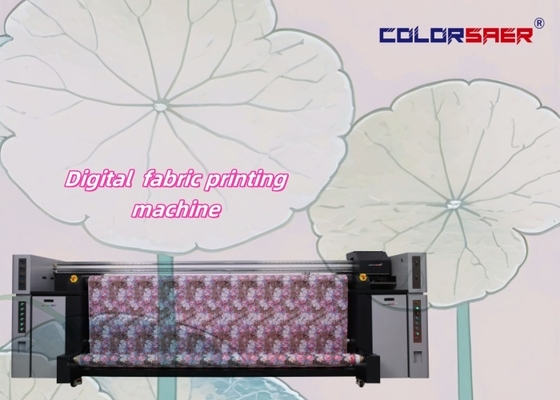

8-Head Epson Digital Fabric Printer 3.2m Width Sublimation Textile Machine 1
