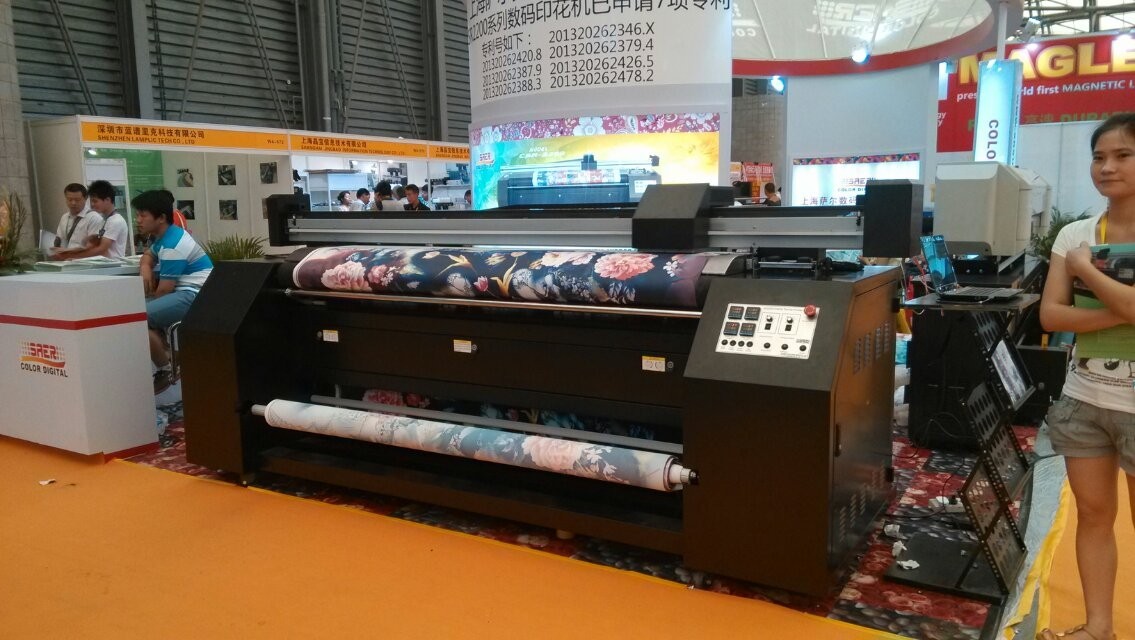

2.2m Sublimation Epson DX7 Digital Textile Printing Machine / cmyk printing machine

2.2m Sublimation Epson DX7 Digital Textile Printing Machine / cmyk printing machine

    • 2.2m Sublimation Epson DX7 Digital Textile Printing Machine / cmyk printing machine
    • 2.2m Sublimation Epson DX7 Digital Textile Printing Machine / cmyk printing machine
    • 2.2m Sublimation Epson DX7 Digital Textile Printing Machine / cmyk printing machine
    • 2.2m Sublimation Epson DX7 Digital Textile Printing Machine / cmyk printing machine
  • 2.2m Sublimation Epson DX7 Digital Textile Printing Machine / cmyk printing machine

    Product Details:

    Place of Origin: China
    Brand Name: SAER
    Certification: CE
    Model Number: CSR2200

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 set
    Price: Negotiation
    Packaging Details: None fumigation wooden package
    Delivery Time: 10 working days after received your payment
    Payment Terms: T/T or western Union
    Supply Ability: 20 set/month
    Contact Now
    Detailed Product Description
    Product Name: 2.2m Flag Printing Machine Application: Indoor & Outdoor
    Size Of Panel: 2.2m Max Resolution: 1400dpi
    Type: Inkjet Printer Condition: New
    Print Head: Epson DX5 Color Model: CMYK
    Ink Supply Model: Continuous Ink Supply Max Materials Width: 2.3m
    Highlight:

    sublimation printing machine

    ,

    digital textile printing equipment

    Product name: 2.2m Sublimation Epson DX5 Digital Textile Printing Machine / cmyk printing machine​







    Description:





    · Far Infrared Blackbody Tube Radiation



    1· Electro thermal Heating
    2· Intelligent PID Temperature Control
    3· Digital Tension Control
    4· Feeding and Taking up Are synchronous
    5· Vacuum Fan Delivery Is Controllable
    6· Quick Tail Gas Treatment
    7· Convenient to Maintain
    7· Easy to Set up and Operate

    9. Easy to load the media in and out oven during your machine working
    10. Easy to open the caver to clean inside of oven
    11. Special clutch to control the feeding up system working or stop , it’s easy for you loading the roll materials.
    12. Easy to change the active carbon from the filter
    13. Adopting the most advanced thermal energy technology low power consumption, saves electricity and conserve energy costs.




    Specifications:





    Product parameter

    Model

    CSR2200

    Print head

    Piezo technology, Epson DX5 printer head

    Ink

    Sublimation ink

    Color model

    Dual  KCMY

    Nozzles

    ( 180 nozzles x 8lines ) x2 head

    Printer head higher

    15mm/6mm ( adjustable )

    Ink supply model

    Continuous ink supply

    Max materials width

    2300mm

    Max printing width

    2200mm







    Printing resolution and speed

    Resolution                       speed

    720x360dpi (2pass)               40m2/h

    360x1080dpi(3pass)               32m2/h

    720x720dpi(4pass)                22m2/h

    720x1080dpi(6pass)               18 m2/h

    720x1440dpi(8pass)               12 m2/h

    Roll diameter

    3 Inch

    Maximum weight for roll material

    100kg

    Interface

    USB 2.0

    RAM

    1.2M

    Printer power

    AC220-240V./AC220-240Adaptive   50/60Hz

    Sublimation machine

    AC220-240V. 16A. 50/60Hz

    Power consumption

    Direct dye sublimation heater 3200W

    Control Panel 1500W

    Printer 1200W

    Filter 600W

    Printer                               100w

    Temperature

    20-32°C

    Humidity

    40-60% Non-condensing

    Weight

    Net 780kg                  Gross 890kg





    Advantages:

    1. Suitable for small lot, Personality, Diversity Printing, Without Limit Of Quantity.
    2. The printed image color is bright and vivid with nice color gamut.
    3.  Rapid speed and various printer to choose
    4.  It  is simple and leave out heat transfer process, one person can operates with high efficency and short time.
    5 . Low cost and no need of any kind transfer paper, liner breaking the highest costs performance.





    Application  :

    Textile, flag, poster, banner, tablecloth, wall pictures, interior decoration, indoor and outdoor printing etc
