Product Details:
|
| Product Name: | 2.2m Flag Printing Machine | Application: | Indoor & Outdoor |
|---|---|---|---|
| Size Of Panel: | 2.2m | Max Resolution: | 1400dpi |
| Type: | Inkjet Printer | Condition: | New |
| Print Head: | Epson DX5 | Color Model: | CMYK |
| Ink Supply Model: | Continuous Ink Supply | Max Materials Width: | 2.3m |
| Highlight: | sublimation printing machine,digital textile printing equipment |
||

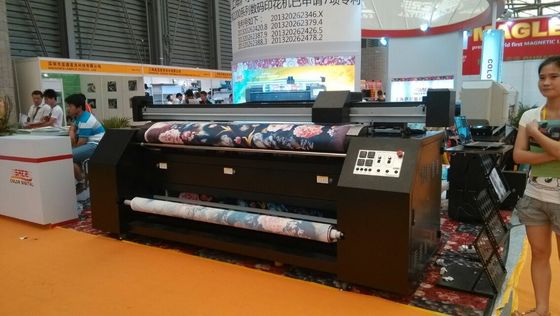

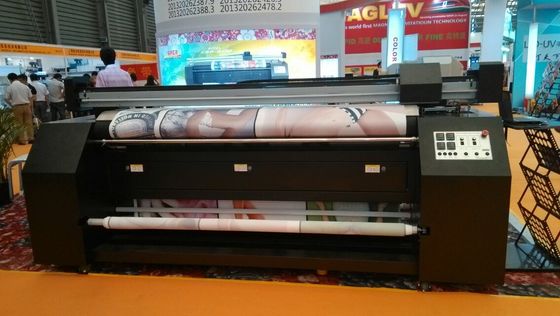

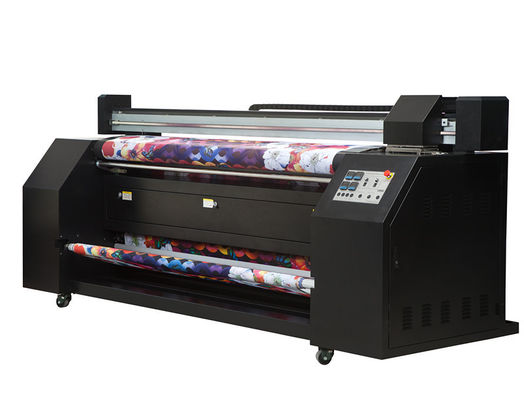

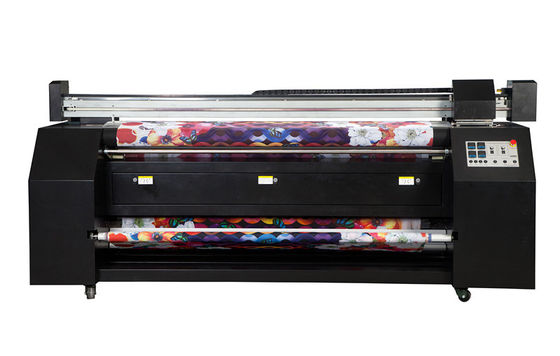

Product name: 2.2m Sublimation Epson DX5 Digital Textile Printing Machine / cmyk printing machine
Description:
· Far Infrared Blackbody Tube Radiation
1· Electro thermal Heating
2· Intelligent PID Temperature Control
3· Digital Tension Control
4· Feeding and Taking up Are synchronous
5· Vacuum Fan Delivery Is Controllable
6· Quick Tail Gas Treatment
7· Convenient to Maintain
7· Easy to Set up and Operate
9. Easy to load the media in and out oven during your machine working
10. Easy to open the caver to clean inside of oven
11. Special clutch to control the feeding up system working or stop , it’s easy for you loading the roll materials.
12. Easy to change the active carbon from the filter
13. Adopting the most advanced thermal energy technology low power consumption, saves electricity and conserve energy costs.
Specifications:
|
Product parameter |
|
|
Model |
CSR2200 |
|
Print head |
Piezo technology, Epson DX5 printer head |
|
Ink |
Sublimation ink |
|
Color model |
Dual KCMY |
|
Nozzles |
( 180 nozzles x 8lines ) x2 head |
|
Printer head higher |
15mm/6mm ( adjustable ) |
|
Ink supply model |
Continuous ink supply |
|
Max materials width |
2300mm |
|
Max printing width |
2200mm |
|
Printing resolution and speed |
Resolution speed |
|
720x360dpi (2pass) 40m2/h |
|
|
360x1080dpi(3pass) 32m2/h |
|
|
720x720dpi(4pass) 22m2/h |
|
|
720x1080dpi(6pass) 18 m2/h |
|
|
720x1440dpi(8pass) 12 m2/h |
|
|
Roll diameter |
3 Inch |
|
Maximum weight for roll material |
100kg |
|
Interface |
USB 2.0 |
|
RAM |
1.2M |
|
Printer power |
AC220-240V./AC220-240Adaptive 50/60Hz |
|
Sublimation machine |
AC220-240V. 16A. 50/60Hz |
|
Power consumption |
Direct dye sublimation heater 3200W Control Panel 1500W Printer 1200W Filter 600W |
|
Printer 100w |
|
|
Temperature |
20-32°C |
|
Humidity |
40-60% Non-condensing |
|
Weight |
Net 780kg Gross 890kg |
Advantages:
1. Suitable for small lot, Personality, Diversity Printing, Without Limit Of Quantity.
2. The printed image color is bright and vivid with nice color gamut.
3. Rapid speed and various printer to choose
4. It is simple and leave out heat transfer process, one person can operates with high efficency and short time.
5 . Low cost and no need of any kind transfer paper, liner breaking the highest costs performance.
Application :
Textile, flag, poster, banner, tablecloth, wall pictures, interior decoration, indoor and outdoor printing etc
