Automatic 1.9m Textile Fabric Calender Machine Heat Pressed Fabric Finishing Machine

Automatic 1.9m Textile Fabric Calender Machine Heat Pressed Fabric Finishing Machine

    • Automatic 1.9m Textile Fabric Calender Machine Heat Pressed Fabric Finishing Machine
    • Automatic 1.9m Textile Fabric Calender Machine Heat Pressed Fabric Finishing Machine
  • Automatic 1.9m Textile Fabric Calender Machine Heat Pressed Fabric Finishing Machine

    Product Details:

    Place of Origin: Shanghai ,China(Mainland)
    Brand Name: SAER
    Certification: CE
    Model Number: SRT600-1900

    Payment & Shipping Terms:

    Minimum Order Quantity: 1set
    Price: negotiable
    Packaging Details: Packed in wooden case
    Delivery Time: 10 working days after get your payment
    Payment Terms: T/T, Western Union
    Supply Ability: 50 sets/month
    Contact Now
    Detailed Product Description
    Product Name: SRT600-1900calander Printer Usage: Roll Heat Press Transfer Machine
    Suitable For: Cloths Printer Color: Varies For Choose
    Type: Flatbed Printer Temperature Range: 0-399 Degrees
    Function: Multiple-surface Sublimation Voltage: 380
    Roll Diameter: 600mm Heating Type: Oil Heating
    High Light:

    fabric calender machine

    ,

    roll to roll heat transfer machine

    Automatic 1.9m Textile Fabric Calender Machine , Heat Pressed Fabric Finishing Machine




    Machine specification

    Power supply:50~60Hz,380v.electricity60A

    Rated Power:40kw

    Temperature:0~399

    Speed:150m/hour

    Weight: 2000 kg
    Heating time:about one hour. heat up tube:24 piece
    Transfer width:1900mm
    Roll diameter :600mm
    Export wooden case size:2800mm*1300mm*1500mm





    Brand Name

    SRT600-1900 calander printer

    Model Number

    SRT600-1900

    Voltage(V)

    380

    Power(KW)

    36

    Temperature Range(℃)

    0—399

    Weight(KGS)

    2000

    Working Table

    Including

    Blanket Material

    Nomex(High Temperature Resistance) Aramid

    Drum Surface

    Chrome
    High Hardness & Abrasion Performance

    MOQ(Set)

    1

    Note

    Support custom design for color&size&function and others





    Machine Details :


    1. The most advanced technology and imported units arew adopted by machine controlling system with automatic positioning , accuracy together with security ,electronic constant temperature controlling wtih high accuracy, long service life and other features
    2. Heating wheel is controlled by sealed and heat-oil heating to efficiently ensure the even and stable temperature
    3. Printing speed is equipped with continuous speed adjustment system ,feeding equipment is convenient for operation ith swiftness and high reliablity.
    4 Equipped with continuous speed adjustment system,you can adjust printing speed as you need ,The roller was heating up with oil and temperature heating system.
    5. Roller heat transfer Digital t shirt printing machine, one year warranty




    Other Functionalities



    • Eco-friendly process (no solvents whatever, and no use of water )
    • Ease and versatility of use
    • Quick and simple change of pattern/image
    • Broad range of use

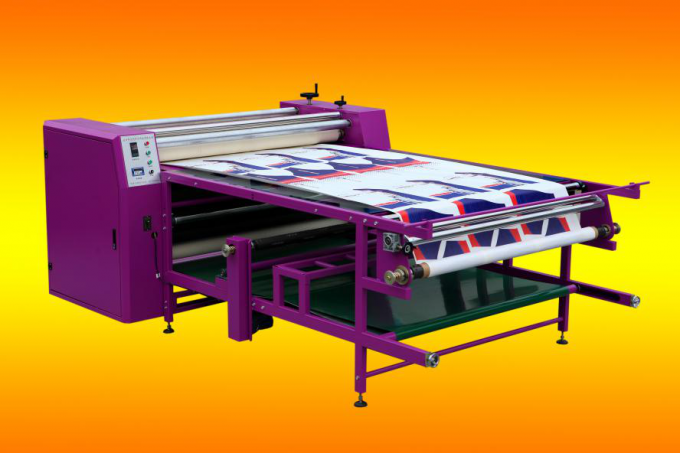

    Automatic 1.9m Textile Fabric Calender Machine Heat Pressed Fabric Finishing Machine 0






    Appliciton:

    Calenders can also be applied to materials other than paper when a smooth, flat surface is desirable, such as cotton, linens, silks, and various man-made fabrics and polymers such as vinyl and ABS polymer sheets, and to a lesser extent HDPE, polypropylene and polystyrene.

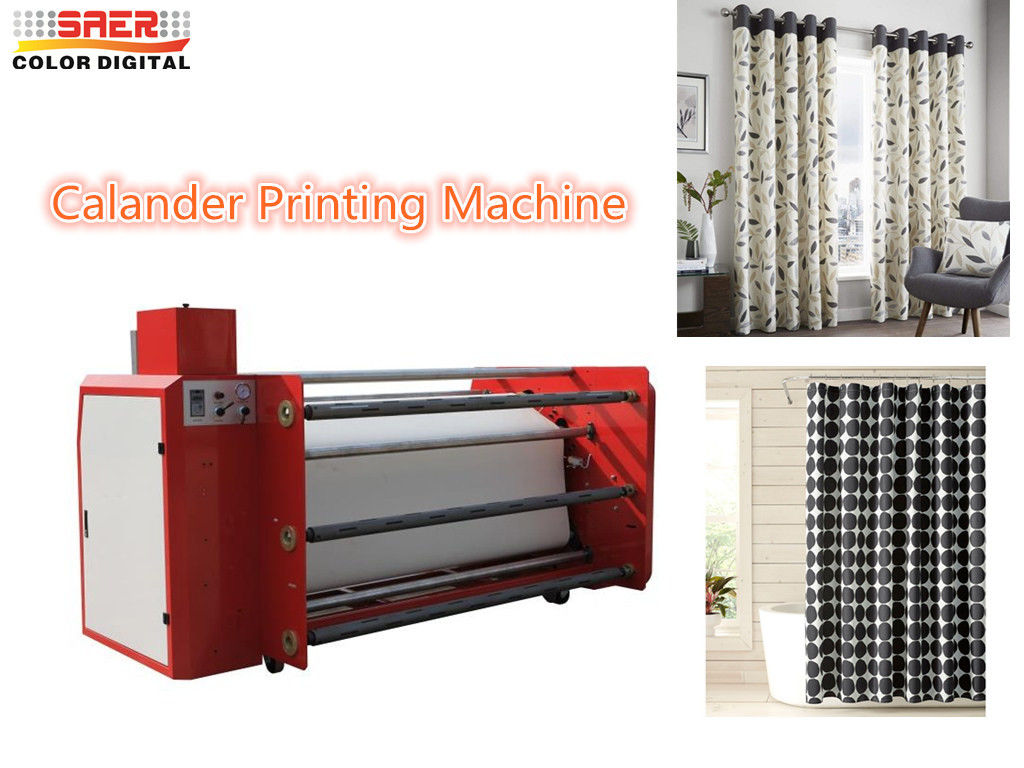

    Automatic 1.9m Textile Fabric Calender Machine Heat Pressed Fabric Finishing Machine 1

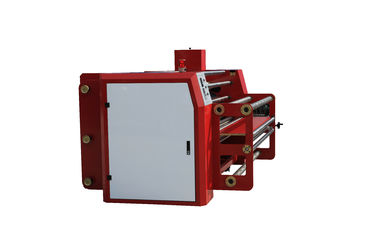

    Automatic 1.9m Textile Fabric Calender Machine Heat Pressed Fabric Finishing Machine 2




    After Sales Service:



    1. With one year warranty and lifelong technical support.

    2. Offer Video and operation manul,and the professional technical staff online guidance.

    3. Guarantee prompt warranty service for main parts repairment and replacement by international courier
