Product Details:
|
| Product Name: | SRT600-1900calander Printer | Usage: | Roll Heat Press Transfer Machine |
|---|---|---|---|
| Suitable For: | Cloths Printer | Color: | Varies For Choose |
| Type: | Flatbed Printer | Temperature Range: | 0-399 Degrees |
| Function: | Multiple-surface Sublimation | Voltage: | 380 |
| Roll Diameter: | 600mm | Heating Type: | Oil Heating |
| Highlight: | fabric calender machine,roll to roll heat transfer machine |
||

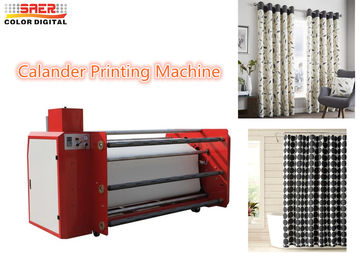

Automatic 1.9m Textile Fabric Calender Machine , Heat Pressed Fabric Finishing Machine
Machine specification
Power supply:50~60Hz,380v.electricity60A
Rated Power:40kw
Temperature:0~399
Speed:150m/hour
Weight: 2000 kg
Heating time:about one hour. heat up tube:24 piece
Transfer width:1900mm
Roll diameter :600mm
Export wooden case size:2800mm*1300mm*1500mm
|
Brand Name |
SRT600-1900 calander printer |
|
|
Model Number |
SRT600-1900 |
|
|
Voltage(V) |
380 |
|
|
Power(KW) |
36 |
|
|
Temperature Range(℃) |
0—399 |
|
|
Weight(KGS) |
2000 |
|
|
Working Table |
Including |
|
|
Blanket Material |
Nomex(High Temperature Resistance) Aramid |
|
|
Drum Surface |
Chrome |
|
|
MOQ(Set) |
1 |
|
|
Note |
Support custom design for color&size&function and others |
|
Machine Details :
1. The most advanced technology and imported units arew adopted by machine controlling system with automatic positioning , accuracy together with security ,electronic constant temperature controlling wtih high accuracy, long service life and other features
2. Heating wheel is controlled by sealed and heat-oil heating to efficiently ensure the even and stable temperature
3. Printing speed is equipped with continuous speed adjustment system ,feeding equipment is convenient for operation ith swiftness and high reliablity.
4 Equipped with continuous speed adjustment system,you can adjust printing speed as you need ,The roller was heating up with oil and temperature heating system.
5. Roller heat transfer Digital t shirt printing machine, one year warranty
Other Functionalities
Appliciton:
Calenders can also be applied to materials other than paper when a smooth, flat surface is desirable, such as cotton, linens, silks, and various man-made fabrics and polymers such as vinyl and ABS polymer sheets, and to a lesser extent HDPE, polypropylene and polystyrene.
After Sales Service:
1. With one year warranty and lifelong technical support.
2. Offer Video and operation manul,and the professional technical staff online guidance.
3. Guarantee prompt warranty service for main parts repairment and replacement by international courier
