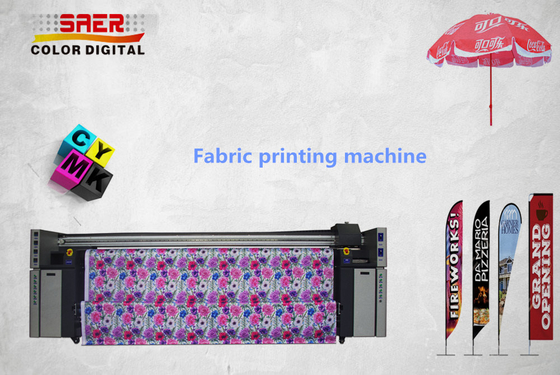

Inline Curing Fabric Printer Machine 6 Pass For Polyster

Inline Curing Fabric Printer Machine 6 Pass For Polyster

    • Inline Curing Fabric Printer Machine 6 Pass For Polyster
    • Inline Curing Fabric Printer Machine 6 Pass For Polyster
  • Inline Curing Fabric Printer Machine 6 Pass For Polyster

    Product Details:

    Place of Origin: Shanghai Of China
    Brand Name: SAER
    Certification: CE
    Model Number: CSR 2200

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 Set
    Price: Negotiation
    Packaging Details: None fumigation wooden package
    Delivery Time: 10 working days after get the payment
    Payment Terms: T/T, Western Union
    Supply Ability: 30 Sets Per Month
    Contact Now
    Detailed Product Description
    Max Resolution: 720x1800DPI (6 Pass) Type: Inkjet Printer
    Condition: New Color Model: Dual CMYK
    Rip Software: Onyx Net Weight: 833KG
    Wet Weight: 1019KG Ink: Sublimation, Pigment Ink
    Material: Polyster,Cotton,Wool And Silk Size Of Printing Panel: 2.1m (can Custom)
    High Light:

    Inline Curing Fabric Printer Machine

    ,

    Dual CMYK Fabric Printer Machine

    ,

    6 Pass Fabric Printer Machine

     Product name: SAER directly printing inline curing solution / Textile printing machine







    Machine power consumption





    Power consumption Direct dye sublimation heater 3500W
    Printer 5500w







    Machine working speed:











    Printing resolution and speed

    Resolution(DPI) Speed

    360*1800dpi(3 pass) 80m2/h
    720*1200dpi(4 pass) 65m2/h
    720*1800dpi(6 pass)45m2/h







    Advantages:

    • Directly print designs on fabric material,no need any transfer paper
    • After the high temperature to the fabric color fixation,the printed image color is bright and vivid with nice color gamut
    • Rapid speed can reach 45 sqm / hour in 4 pass 1440 Dpi resolution
    • Working process is simple, one person can operates with high efficency and short time.
    • Low cost, liner breaking the highest costs performance





    Machine Specifications:



    Product parameter

    Model

    CSR2200

    Print head

    Piezo technology, Epson print head

    Ink

    Sublimation ink,pigment ink and reactive ink

    Color model

    Dual  CKMY

    Nozzles

    (400 nozzles x 8 lines ) x4heads

    Printer head higher

    15mm / 6mm ( Adjustable )

    Ink supply model

    Continuous ink supply

    Max materials width

    2000mm

    Max printing width

    2100mm

    Roll diameter

    3 Inch

    Maximum weight for roll material

    100kg

    Interface

    USB 3.0

    RAM128

    128M

    Printer power

    AC220-240V./AC220-240Adaptive   50/60Hz

    Sublimation machine

    AC220-240V. 16A. 50/60Hz

    Temperature

    20-32°C

    Humidity

    40-60% Non-condensing

    Weight

    Net Weight : 800kg                  Gross Weight : 920kg















    Application:



    Inline Curing Fabric Printer Machine 6 Pass For Polyster 0

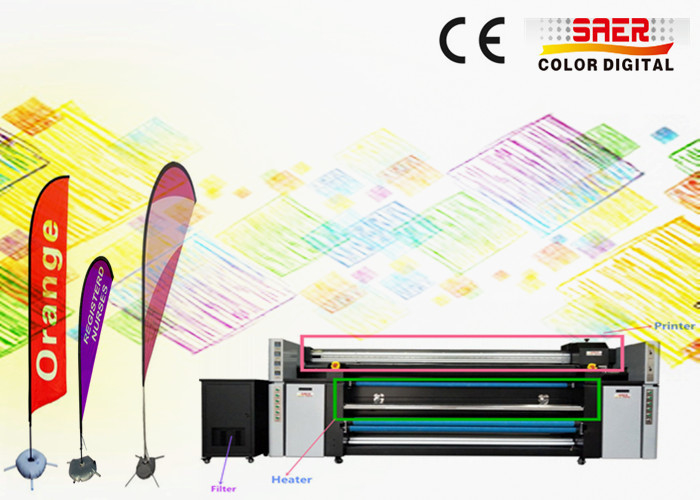

    Machine Details:



    Inline Curing Fabric Printer Machine 6 Pass For Polyster 1











    After Sales Service:





    1. With one year warranty and lifelong technical support.

    2. Offer Video and operation manul,and the professional technical engineer online guidance.

    3. Guarantee prompt warranty service for main parts repairment and replacement by international courier
