Product Details:
|
| Max Resolution: | 720x1800DPI (6 Pass) | Type: | Inkjet Printer |
|---|---|---|---|
| Condition: | New | Color Model: | Dual CMYK |
| Rip Software: | Onyx | Net Weight: | 833KG |
| Wet Weight: | 1019KG | Ink: | Sublimation, Pigment Ink |
| Material: | Polyster,Cotton,Wool And Silk | Size Of Printing Panel: | 2.1m (can Custom) |
| Highlight: | Inline Curing Fabric Printer Machine,Dual CMYK Fabric Printer Machine,6 Pass Fabric Printer Machine |
||

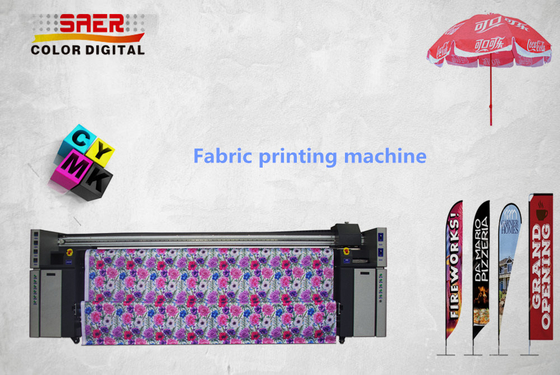

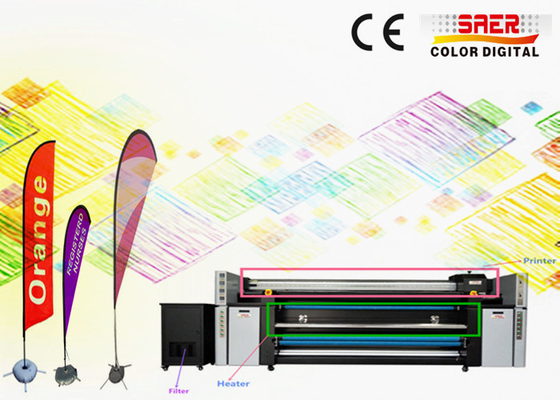

Product name: SAER directly printing inline curing solution / Textile printing machine
Machine power consumption
| Power consumption | Direct dye sublimation heater 3500W |
| Printer 5500w |
Machine working speed:
|
Printing resolution and speed |
Resolution(DPI) Speed |
| 360*1800dpi(3 pass) 80m2/h | |
| 720*1200dpi(4 pass) 65m2/h | |
| 720*1800dpi(6 pass)45m2/h |
Advantages:
Machine Specifications:
|
Product parameter |
|
|
Model |
CSR2200 |
|
Print head |
Piezo technology, Epson print head |
|
Ink |
Sublimation ink,pigment ink and reactive ink |
|
Color model |
Dual CKMY |
|
Nozzles |
(400 nozzles x 8 lines ) x4heads |
|
Printer head higher |
15mm / 6mm ( Adjustable ) |
|
Ink supply model |
Continuous ink supply |
|
Max materials width |
2000mm |
|
Max printing width |
2100mm |
|
Roll diameter |
3 Inch |
|
Maximum weight for roll material |
100kg |
|
Interface |
USB 3.0 |
|
RAM128 |
128M |
|
Printer power |
AC220-240V./AC220-240Adaptive 50/60Hz |
|
Sublimation machine |
AC220-240V. 16A. 50/60Hz |
|
Temperature |
20-32°C |
|
Humidity |
40-60% Non-condensing |
|
Weight |
Net Weight : 800kg Gross Weight : 920kg |
Application:
Machine Details:
After Sales Service:
1. With one year warranty and lifelong technical support.
2. Offer Video and operation manul,and the professional technical engineer online guidance.
3. Guarantee prompt warranty service for main parts repairment and replacement by international courier
