No Pinch Roller Digital Fabric Plotter Cotton Printing 720x1800DPI

No Pinch Roller Digital Fabric Plotter Cotton Printing 720x1800DPI

    • No Pinch Roller Digital Fabric Plotter Cotton Printing 720x1800DPI
    • No Pinch Roller Digital Fabric Plotter Cotton Printing 720x1800DPI
  • No Pinch Roller Digital Fabric Plotter Cotton Printing 720x1800DPI

    Product Details:

    Place of Origin: Shanghai Of China
    Brand Name: SAER
    Certification: CE
    Model Number: CSR 2200

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 Set
    Price: Negotiation
    Packaging Details: None fumigation wooden package(Package size: 3350*1070*1550mm)
    Delivery Time: 10 working days after receive your payment
    Payment Terms: T/T, Western Union
    Supply Ability: 20 Sets Per Month
    Contact Now
    Detailed Product Description
    Size Of Panel: 2.1m Max Resolution: 720x1800DPI (6 Pass)
    Type: Inkjet Printer Condition: New
    Color Model: Dual CMYK Ink Supply Model: Continuous Ink Supply
    Max Materials Width: 2000mm (can Custom Bigger Size ) Rip Software: Onyx
    Net Weight: 833KG Wet Weight: 1019KG
    Ink: Sublimation,Reactive And Pigment Ink Material: Polyster,Cotton,Wool And Silk
    High Light:

    No Pinch Roller Digital Fabric Plotter

    ,

    Cotton Printing Digital Fabric Plotter

    ,

    720x1800DPI Digital Fabric Plotter

     Product name: No pinch roller digital fabric plotter / Cotton printing system







    Specifications:



    Product parameter

    Model

    CSR2200

    Print head

    Piezo technology, Epson print head

    Ink

    Sublimation ink,pigment ink and reactive ink

    Color model

    Dual  CKMY

    Nozzles

    (400 nozzles x 8 lines ) x3heads

    Printer head higher

    15mm / 6mm ( Adjustable )

    Ink supply model

    Continuous ink supply

    Max materials width

    2000mm

    Max printing width

    2100mm

    Roll diameter

    3 Inch

    Maximum weight for roll material

    100kg

    Interface

    USB 3.0

    RAM128

    128M

    Printer power

    AC220-240V./AC220-240Adaptive   50/60Hz

    Sublimation machine

    AC220-240V. 16A. 50/60Hz

    Power consumption

    Direct dye sublimation heater 3500W

    Printer                               5500w

    Temperature

    20-32°C

    Humidity

    40-60% Non-condensing

    Weight

    Net Weight : 800kg                  Gross Weight : 920kg





    Advantages:

    • Directly print designs on fabric material,no need any transfer paper
    • After the high temperature to the fabric color fixation,the printed image color is bright and vivid with nice color gamut
    •  Rapid speed can reach 45 sqm / hour in 4 pass 1440 Dpi resolution
    •  Working process is simple, one person can operates with high efficency and short time.
    •  Low cost, liner breaking the highest costs performance



    Machine working speed:









    Printing resolution and speed

    Resolution(DPI) Speed

    360*1800dpi(3 pass) 65m2/h
    720*1200dpi(4 pass) 45m2/h
    720*1800dpi(6 pass) 35m2/h







    Application:

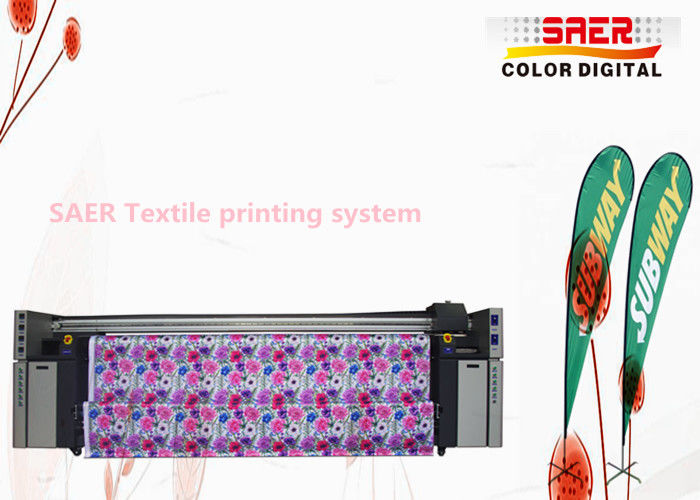

    No Pinch Roller Digital Fabric Plotter Cotton Printing 720x1800DPI 0

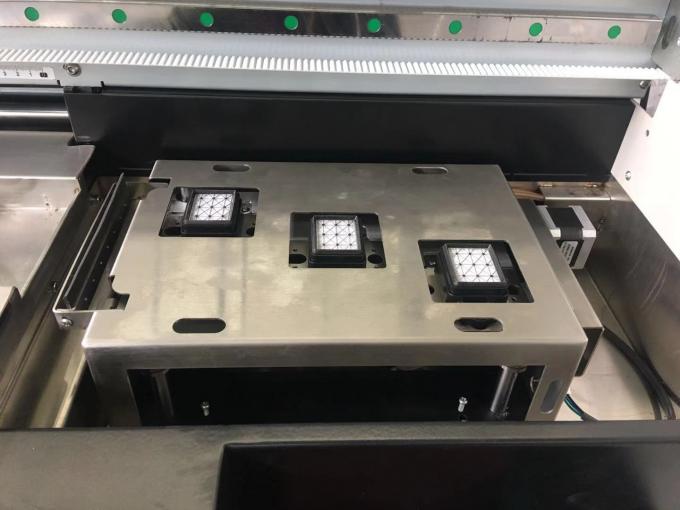

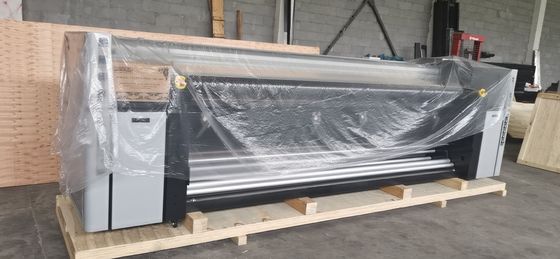

    Machine Details:





    No Pinch Roller Digital Fabric Plotter Cotton Printing 720x1800DPI 1No Pinch Roller Digital Fabric Plotter Cotton Printing 720x1800DPI 2

    No Pinch Roller Digital Fabric Plotter Cotton Printing 720x1800DPI 3







    After Sales Service:





    1. With one year warranty and lifelong technical support.

    2. Offer Video and operation manul,and the professional technical engineer online guidance.

    3. Guarantee prompt warranty service for main parts repairment and replacement by international courier
