Product Details:
|
| Size Of Panel: | 2.1m | Max Resolution: | 720x1800DPI (6 Pass) |
|---|---|---|---|
| Type: | Inkjet Printer | Condition: | New |
| Color Model: | Dual CMYK | Ink Supply Model: | Continuous Ink Supply |
| Max Materials Width: | 2000mm (can Custom Bigger Size ) | Rip Software: | Onyx |
| Net Weight: | 833KG | Wet Weight: | 1019KG |
| Ink: | Sublimation,Reactive And Pigment Ink | Material: | Polyster,Cotton,Wool And Silk |
| Highlight: | No Pinch Roller Digital Fabric Plotter,Cotton Printing Digital Fabric Plotter,720x1800DPI Digital Fabric Plotter |
||

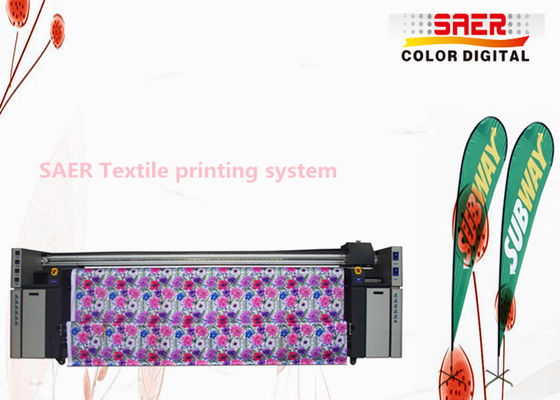

Product name: No pinch roller digital fabric plotter / Cotton printing system
Specifications:
|
Product parameter |
|
|
Model |
CSR2200 |
|
Print head |
Piezo technology, Epson print head |
|
Ink |
Sublimation ink,pigment ink and reactive ink |
|
Color model |
Dual CKMY |
|
Nozzles |
(400 nozzles x 8 lines ) x3heads |
|
Printer head higher |
15mm / 6mm ( Adjustable ) |
|
Ink supply model |
Continuous ink supply |
|
Max materials width |
2000mm |
|
Max printing width |
2100mm |
|
Roll diameter |
3 Inch |
|
Maximum weight for roll material |
100kg |
|
Interface |
USB 3.0 |
|
RAM128 |
128M |
|
Printer power |
AC220-240V./AC220-240Adaptive 50/60Hz |
|
Sublimation machine |
AC220-240V. 16A. 50/60Hz |
|
Power consumption |
Direct dye sublimation heater 3500W |
|
Printer 5500w |
|
|
Temperature |
20-32°C |
|
Humidity |
40-60% Non-condensing |
|
Weight |
Net Weight : 800kg Gross Weight : 920kg |
Advantages:
Machine working speed:
|
Printing resolution and speed |
Resolution(DPI) Speed |
| 360*1800dpi(3 pass) 65m2/h | |
| 720*1200dpi(4 pass) 45m2/h | |
| 720*1800dpi(6 pass) 35m2/h |
Application:
Machine Details:
After Sales Service:
1. With one year warranty and lifelong technical support.
2. Offer Video and operation manul,and the professional technical engineer online guidance.
3. Guarantee prompt warranty service for main parts repairment and replacement by international courier
