Oil Heating Roll To Roll Sublimation Machine Rotary Calender

Oil Heating Roll To Roll Sublimation Machine Rotary Calender

    • Oil Heating Roll To Roll Sublimation Machine Rotary Calender
    • Oil Heating Roll To Roll Sublimation Machine Rotary Calender
  • Oil Heating Roll To Roll Sublimation Machine Rotary Calender

    Product Details:

    Place of Origin: Shanghai,China
    Brand Name: SARE
    Certification: CE certification
    Model Number: SRT600-1800

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 set
    Price: Negotiation
    Packaging Details: Non Fumigation Wooden Box
    Delivery Time: 7-12 working days
    Payment Terms: T/T, MoneyGram
    Supply Ability: 50 sets /Month
    Contact Now
    Detailed Product Description
    Plate Type: Sublimation Heat Transfer Machine Warranty: 1 Year
    Applicable Industrial: Garment Shops,Printing Shops Power Supply: VAC 50~60 Hz ,380V
    Speed: 200M/H (Manual Adjust ) Drum Diameter: 600mm
    Temperature Control: 0-399 Heating Type: Oil Heating
    Weight: 1000kg Number Of Heating Tube: 24 Pcs
    High Light:

    Roll To Roll Sublimation Machine

    ,

    Oil Heating Rotary Calender

    ,

    200M/H Textile Calender Machine

    Product name : 1Convenient operation Roll to roll heat press rotary heat press sublimation calander





    Machine Details :


    1. The most advanced technology and imported units arew adopted by machine controlling system with automatic positioning , accuracy together with security ,electronic constant temperature controlling wtih high accuracy, long service life and other features
    2. Heating wheel is controlled by sealed and heat-oil heating to efficiently ensure the even and stable temperature
    3. Printing speed is equipped with continuous speed adjustment system ,feeding equipment is convenient for operation ith swiftness and high reliablity.
    4 Equipped with continuous speed adjustment system,you can adjust printing speed as you need ,The roller was heating up with oil and temperature heating system.
    5. Roller heat transfer Digital t shirt printing machine, one year warranty






    Machine Parameters:



    Model SRT600-1800
    Working Vatage(V) Ac 50~60Hz, three-phase four-wire, 380V
    Current 60A
    Power 40kw
    Temperature Range(℃) 0—399
    Speed range 150meters per hour
    Heating Time around one hour
    Transfer width 1800mm
    Number of heating tubes 24 pieces
    Package Size 2800mm*1300mm*1500mm
    Weight 2000kg





    Main features of roller heat press transfer machine:




    1) Auto blanket alignment
    2) Auto blanket separation from drum completely
    3) Auto pneumatic pressure
    4) Explosion-proof system
    5) Double-layer drum with full fill oil





    Applications:



    1) This machine can be sublimation transfer paper by thermal transfer on cotton, hemp, chemical fiber fabrics, economical and practical.


    2) For large banners, flags, non-woven fabrics, apparel fabrics, towels, blankets, mouse pads and other products for sublimation transfer, especially the piece continuous transfer fabric.

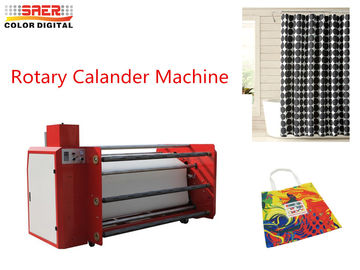

    Oil Heating Roll To Roll Sublimation Machine Rotary Calender 0







    Warranty & Services:



    (1) One year of warranty time.
    (2) About the after-sales service:
    A. If the printer has problem, the client can take a picture or video to the technician.
    B. The technician will teach the client to fix and operate the printer through the internet.
    C.We will ask the client to send back the board which is wrong to check it.
    D.The technician is full of experience, and the sales also keep in touch with the client.





    Informations of company

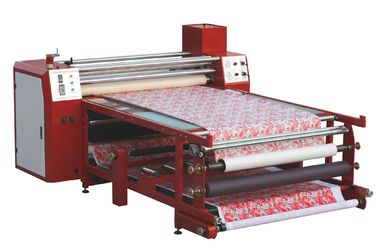

    Oil Heating Roll To Roll Sublimation Machine Rotary Calender 1
