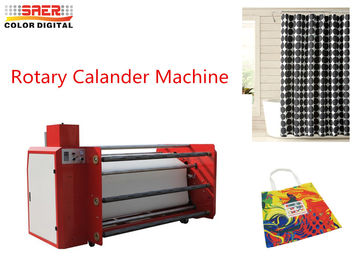

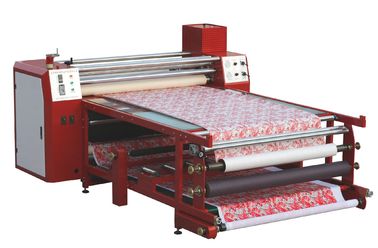

Oil Heating Roll To Roll Sublimation Machine Rotary Calender

Oil Heating Roll To Roll Sublimation Machine Rotary Calender
Oil Heating Roll To Roll Sublimation Machine Rotary Calender Oil Heating Roll To Roll Sublimation Machine Rotary Calender

Large Image :  Oil Heating Roll To Roll Sublimation Machine Rotary Calender

Product Details:
Place of Origin: Shanghai,China
Brand Name: SARE
Certification: CE certification
Model Number: SRT600-1800
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiation
Packaging Details: Non Fumigation Wooden Box
Delivery Time: 7-12 working days
Payment Terms: T/T, MoneyGram
Supply Ability: 50 sets /Month

Oil Heating Roll To Roll Sublimation Machine Rotary Calender

Description
Plate Type: Sublimation Heat Transfer Machine Warranty: 1 Year
Applicable Industrial: Garment Shops,Printing Shops Power Supply: VAC 50~60 Hz ,380V
Speed: 200M/H (Manual Adjust ) Drum Diameter: 600mm
Temperature Control: 0-399 Heating Type: Oil Heating
Weight: 1000kg Number Of Heating Tube: 24 Pcs
Highlight:

Roll To Roll Sublimation Machine

,

Oil Heating Rotary Calender

,

200M/H Textile Calender Machine

Product name : 1Convenient operation Roll to roll heat press rotary heat press sublimation calander





Machine Details :


1. The most advanced technology and imported units arew adopted by machine controlling system with automatic positioning , accuracy together with security ,electronic constant temperature controlling wtih high accuracy, long service life and other features
2. Heating wheel is controlled by sealed and heat-oil heating to efficiently ensure the even and stable temperature
3. Printing speed is equipped with continuous speed adjustment system ,feeding equipment is convenient for operation ith swiftness and high reliablity.
4 Equipped with continuous speed adjustment system,you can adjust printing speed as you need ,The roller was heating up with oil and temperature heating system.
5. Roller heat transfer Digital t shirt printing machine, one year warranty






Machine Parameters:



Model SRT600-1800
Working Vatage(V) Ac 50~60Hz, three-phase four-wire, 380V
Current 60A
Power 40kw
Temperature Range(℃) 0—399
Speed range 150meters per hour
Heating Time around one hour
Transfer width 1800mm
Number of heating tubes 24 pieces
Package Size 2800mm*1300mm*1500mm
Weight 2000kg





Main features of roller heat press transfer machine:




1) Auto blanket alignment
2) Auto blanket separation from drum completely
3) Auto pneumatic pressure
4) Explosion-proof system
5) Double-layer drum with full fill oil





Applications:



1) This machine can be sublimation transfer paper by thermal transfer on cotton, hemp, chemical fiber fabrics, economical and practical.


2) For large banners, flags, non-woven fabrics, apparel fabrics, towels, blankets, mouse pads and other products for sublimation transfer, especially the piece continuous transfer fabric.





Oil Heating Roll To Roll Sublimation Machine Rotary Calender 0







Warranty & Services:



(1) One year of warranty time.
(2) About the after-sales service:
A. If the printer has problem, the client can take a picture or video to the technician.
B. The technician will teach the client to fix and operate the printer through the internet.
C.We will ask the client to send back the board which is wrong to check it.
D.The technician is full of experience, and the sales also keep in touch with the client.
