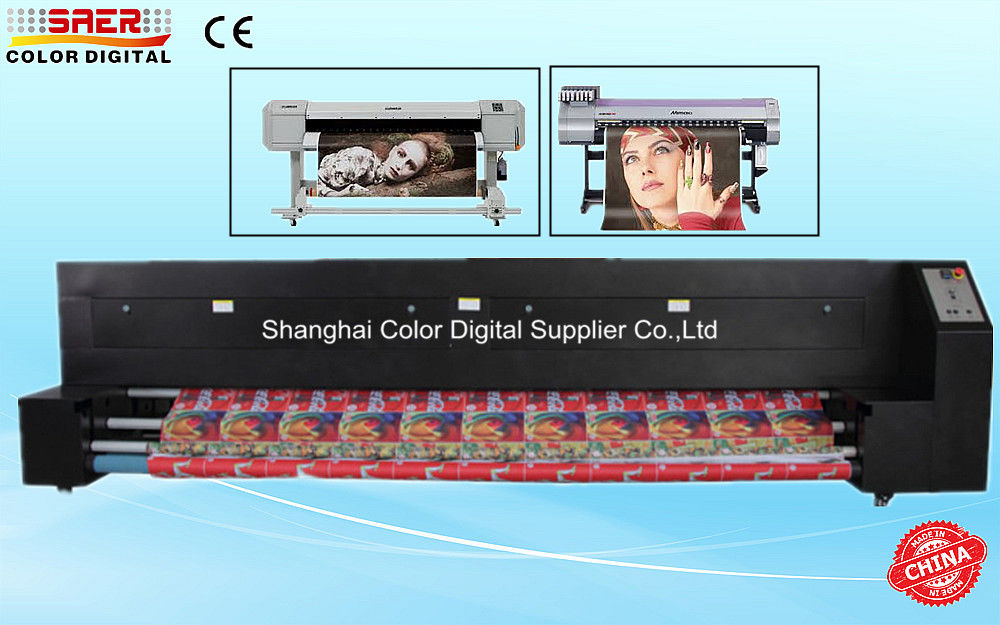

Roll To Roll Dye Sublimation Heater / Heat Sublimation Machine With Piezo Printers

Roll To Roll Dye Sublimation Heater / Heat Sublimation Machine With Piezo Printers

    • Roll To Roll Dye Sublimation Heater / Heat Sublimation Machine With Piezo Printers
    • Roll To Roll Dye Sublimation Heater / Heat Sublimation Machine With Piezo Printers
  • Roll To Roll Dye Sublimation Heater / Heat Sublimation Machine With Piezo Printers

    Product Details:

    Place of Origin: Shanghai City Of China
    Brand Name: SAER
    Certification: CE Approval
    Model Number: SR 3200

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 Set
    Price: 8500 - 9600 USD/Set
    Packaging Details: Non fumigation wooden pakage
    Delivery Time: Whithin 5 working days after receive the payment
    Payment Terms: T/T, Western Union
    Supply Ability: 100 sets per month
    Contact Now
    Detailed Product Description
    Product Name: Dye Sublimation Machine / Heater Automatic Grade: Automatic
    Color & Page: Multicolor Usage: Textile Color Fixation Machine With High Temperature
    Working Width: 320cm Color Mode: Dual CMYK
    Take Up Working Method: Directly Out Or Roll To Roll Available Printer: Mutoh,Mimaki And Any Piezo Printers
    Available Material: Polyester,cotton,silk,Linen And So On

    Roll To Roll Dye Sublimation Heater / Heat Sublimation Machine With Piezo Printers





    Include:



    3.2m Dye Sublimation Heater include one 3.2m heater and filter fan



    Specifications



    Product Name

    Direct Dye Sublimation heater

    Model

    SR 3200

    Blackbody Tube Working Model

    Far Infrared

    Available Ink Sublimation,Reactive and Pigment ink

    Mainly Use

    Dry ink,appear and fix the image color

    Power

    6.5kw(include filter fan)

    Maximum Width

    3300mm

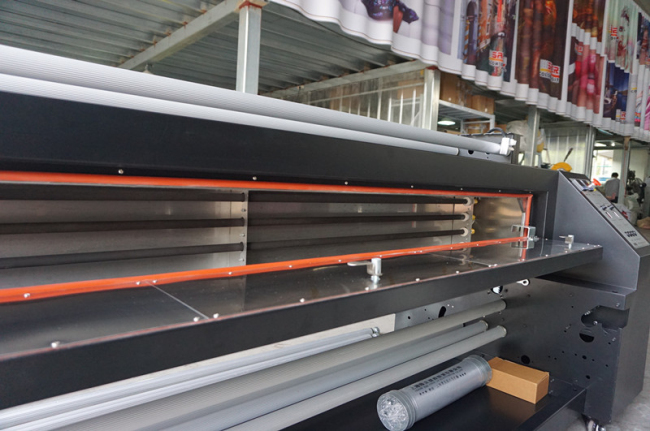

    Heat Tube Dimension

    3400mm

    Working Temperature Control

    Room temperature ~250°C

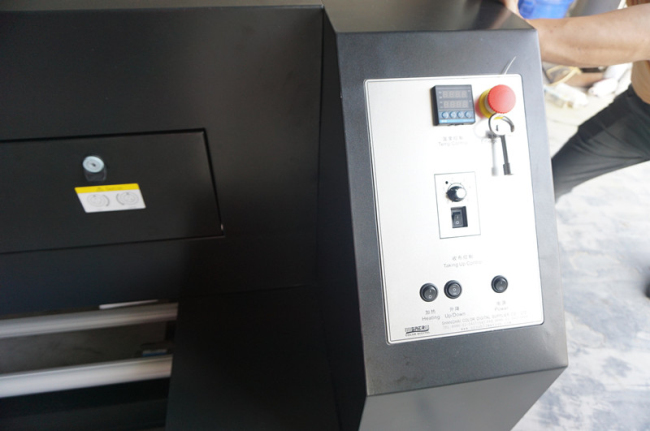

    Temperature Control Method

    PID

    Tension Control

    3kg(optional counterweight to control tension)

    Maximum Speed

    0~2800mm/min

    Filter Fan Speed

    0~300m³/h

    Filter Fan Power

    400W

    Working Voltage

    220v 50hz

    Machine size

    4350mm*1310mm*1230mm(not include filter)

    Net Weight

    625kg(not include filter)

    Gross Weight

    1025kg(Include filter and package)

    Operating mode

    Instrument control, manual, automatic opera



    Features



    a.Work together with Textile Printer,print and heat synchronized.

    b.Working temperature can reach 280°C,can quickly dry the ink.

    c.Print speed can reach 100m/h.



    Advantage



    1. Exhaust without any smell, good environment needed.
    2. Normal temperture for exhaust , no dangerous for hot air out.
    3. High Efficiency cold system to make sure the exhaust temperture less then 25 Degree.
    4. Drawer-type device in a timely manner to facilitate the replacement of activated carbon to ensure that the emission of harmful gases.

    5. Can united any piezo printers



    Applications



    Working together with piezo printers like Mutoh,Mimaki and Roland,to print and heat printed fabric,the completed fabric has been used most field such as flag printing, banner poster printing, textile digital printing, carpet digital printing, windows curtain digital printing and interior decoration printing ,indoor and outdoor printing etc.



    1) 100% Cotton Fabrics ( Such as cotton canvas , cotton bags, cotton bed sheets etc. )
    2) Fashion apparel,clothing accessories( such as scarves,ties etc)
    3) Sportswear and swimwear fabrics ,Home Textile Fabrics(eg. curtains,bed sheets,towels,table cloths and furniture cloth)
    4) Car decorations ,Flags and banners
    5) T-shirts and specialty textiles; wall decoration; umbrellas, bags, shoes, hats, toys, ribbon, etc.;



    After Sales Service



    1. One year warranty

    You can discuss opration and maintenance with our technician online support by skpe,whatsapp etc,

    2. Free exchange of new components

    Our quality is guarranteed 100%,the spare parts can be replaced within one year free of charge,except for the print head and some damageable parts.

    3. Free online consultation

    The technician will keep online,no matter whatever technical questions that you may have,you would get a satisfactory answer.
