Product Details:
|
| Product Name: | Dye Sublimation Machine / Heater | Automatic Grade: | Automatic |
|---|---|---|---|
| Color & Page: | Multicolor | Usage: | Textile Color Fixation Machine With High Temperature |
| Working Width: | 320cm | Color Mode: | Dual CMYK |
| Take Up Working Method: | Directly Out Or Roll To Roll | Available Printer: | Mutoh,Mimaki And Any Piezo Printers |
| Available Material: | Polyester,cotton,silk,Linen And So On | ||
| Highlight: | dye sublimation equipment,dye sublimation machines |
||

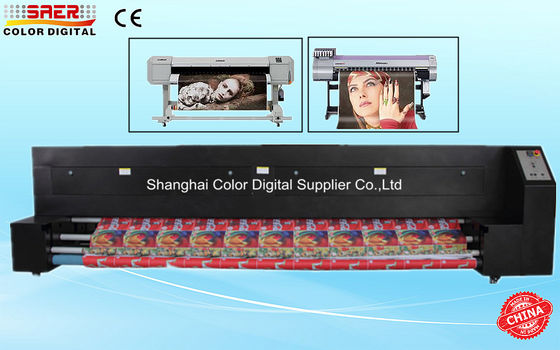

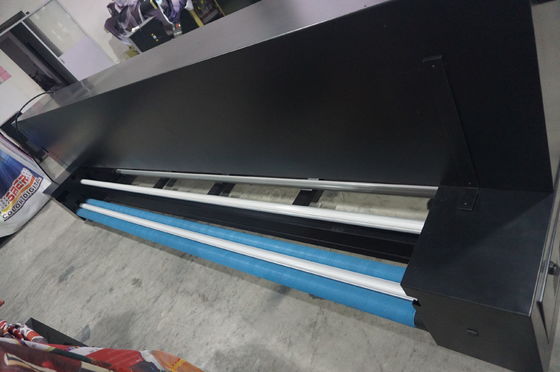

Roll To Roll Dye Sublimation Heater / Heat Sublimation Machine With Piezo Printers
Include:
3.2m Dye Sublimation Heater include one 3.2m heater and filter fan
Specifications
|
Product Name |
Direct Dye Sublimation heater |
|
Model |
SR 3200 |
|
Blackbody Tube Working Model |
Far Infrared |
| Available Ink | Sublimation,Reactive and Pigment ink |
|
Mainly Use |
Dry ink,appear and fix the image color |
|
Power |
6.5kw(include filter fan) |
|
Maximum Width |
3300mm |
|
Heat Tube Dimension |
3400mm |
|
Working Temperature Control |
Room temperature ~250°C |
|
Temperature Control Method |
PID |
|
Tension Control |
3kg(optional counterweight to control tension) |
|
Maximum Speed |
0~2800mm/min |
|
Filter Fan Speed |
0~300m³/h |
|
Filter Fan Power |
400W |
|
Working Voltage |
220v 50hz |
|
Machine size |
4350mm*1310mm*1230mm(not include filter) |
|
Net Weight |
625kg(not include filter) |
|
Gross Weight |
1025kg(Include filter and package) |
|
Operating mode |
Instrument control, manual, automatic opera |
Features
a.Work together with Textile Printer,print and heat synchronized.
b.Working temperature can reach 280°C,can quickly dry the ink.
c.Print speed can reach 100m/h.
Advantage
1. Exhaust without any smell, good environment needed.
2. Normal temperture for exhaust , no dangerous for hot air out.
3. High Efficiency cold system to make sure the exhaust temperture less then 25 Degree.
4. Drawer-type device in a timely manner to facilitate the replacement of activated carbon to ensure that the emission of harmful gases.
5. Can united any piezo printers
Applications
Working together with piezo printers like Mutoh,Mimaki and Roland,to print and heat printed fabric,the completed fabric has been used most field such as flag printing, banner poster printing, textile digital printing, carpet digital printing, windows curtain digital printing and interior decoration printing ,indoor and outdoor printing etc.
1) 100% Cotton Fabrics ( Such as cotton canvas , cotton bags, cotton bed sheets etc. )
2) Fashion apparel,clothing accessories( such as scarves,ties etc)
3) Sportswear and swimwear fabrics ,Home Textile Fabrics(eg. curtains,bed sheets,towels,table cloths and furniture cloth)
4) Car decorations ,Flags and banners
5) T-shirts and specialty textiles; wall decoration; umbrellas, bags, shoes, hats, toys, ribbon, etc.;
After Sales Service
1. One year warranty
You can discuss opration and maintenance with our technician online support by skpe,whatsapp etc,
2. Free exchange of new components
Our quality is guarranteed 100%,the spare parts can be replaced within one year free of charge,except for the print head and some damageable parts.
3. Free online consultation
The technician will keep online,no matter whatever technical questions that you may have,you would get a satisfactory answer.
