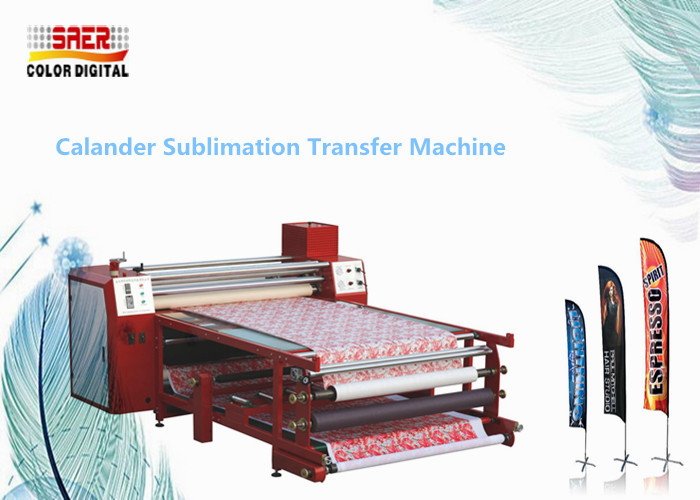

Sublimation Rotary Textile Calender Machine 600mm Drum Diameter For Garment Shops

Sublimation Rotary Textile Calender Machine 600mm Drum Diameter For Garment Shops

    • Sublimation Rotary Textile Calender Machine 600mm Drum Diameter For Garment Shops
    • Sublimation Rotary Textile Calender Machine 600mm Drum Diameter For Garment Shops
  • Sublimation Rotary Textile Calender Machine 600mm Drum Diameter For Garment Shops

    Product Details:

    Place of Origin: Shanghai, China
    Brand Name: SAER
    Certification: CE Certification
    Model Number: SRT600-1800

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 set
    Price: Negotiable
    Packaging Details: Non fumigation wooden box
    Delivery Time: 15 workdays
    Payment Terms: T/T
    Supply Ability: 50 sets per month
    Contact Now
    Detailed Product Description
    Type: Heat Press Machine Color & Page: Multicolor
    Applicable Industries: Garment Shops, Manufacturing Plant, Printing Shops, Textile Industry Voltage: 110v / 220v / 380v
    After-sales Service Provided: Online Support, Video Technical Support Warranty:: One Year
    Package: Non Fumigation Wooden Box Drum Diameter: 600mm

    Product Name:  Factory Directly Sale Calander Sublimation Rotary Machine with Low price high speed







    Machine Details :


    1. The most advanced technology and imported units arew adopted by machine controlling system with automatic positioning , accuracy together with security ,electronic constant temperature controlling wtih high accuracy, long service life and other features
    2. Heating wheel is controlled by sealed and heat-oil heating to efficiently ensure the even and stable temperature
    3. Printing speed is equipped with continuous speed adjustment system ,feeding equipment is convenient for operation ith swiftness and high reliablity.
    4  Equipped with continuous speed adjustment system,you can adjust printing speed as you need ,The roller was heating up with oil and temperature heating system.
    5. Roller heat transfer Digital t shirt printing machine, one year warranty







    Machine Specification:





    Model SRT600-1800
    Working Vatage(V) Ac 50~60Hz, three-phase four-wire, 380V
    Current 60A
    Power  40kw
    Temperature Range(℃) 0—399
    Speed range  150meters per hour
    Heating Time  around one hour
    Transfer width 1800mm
    Number of heating tubes  24 pieces
    Package Size 2800mm*1300mm*1500mm
    Weight 2000kg





    Why use oil conduction heating technology?



        Roller sublimation printing machine commonly adopt the design of heating tube inside the tube, heating tube power generation after heat, heat will be around the radiation, the use of heat transfer oil as a medium, high heat transfer efficiency and uniformity. The machine is running, the heat transfer oil is always located in the lower part of the roller and a steady stream of heat transfer to the roller surface.





       The heat-conducting oil has the property of resisting thermal cracking and chemical oxidation, has good heat-transfer efficiency, fast heat-dissipation and good thermal stability. A very high operating temperature is obtained at almost atmospheric pressure. Which can greatly reduce the high-temperature heating system operating pressure and safety requirements and improve the system and equipment reliability.





     Application:



     Sublimation Rotary Textile Calender Machine 600mm Drum Diameter For Garment Shops
