Product Details:
|
| Type: | Heat Press Machine | Color & Page: | Multicolor |
|---|---|---|---|
| Applicable Industries: | Garment Shops, Manufacturing Plant, Printing Shops, Textile Industry | Voltage: | 110v / 220v / 380v |
| After-sales Service Provided: | Online Support, Video Technical Support | Warranty:: | One Year |
| Package: | Non Fumigation Wooden Box | Drum Diameter: | 600mm |
| Highlight: | fabric calender machine,roll to roll heat transfer machine |
||

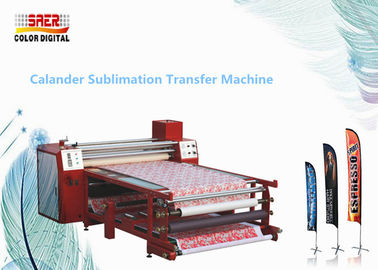

Product Name: Factory Directly Sale Calander Sublimation Rotary Machine with Low price high speed
Machine Details :
1. The most advanced technology and imported units arew adopted by machine controlling system with automatic positioning , accuracy together with security ,electronic constant temperature controlling wtih high accuracy, long service life and other features
2. Heating wheel is controlled by sealed and heat-oil heating to efficiently ensure the even and stable temperature
3. Printing speed is equipped with continuous speed adjustment system ,feeding equipment is convenient for operation ith swiftness and high reliablity.
4 Equipped with continuous speed adjustment system,you can adjust printing speed as you need ,The roller was heating up with oil and temperature heating system.
5. Roller heat transfer Digital t shirt printing machine, one year warranty
Machine Specification:
| Model | SRT600-1800 |
| Working Vatage(V) | Ac 50~60Hz, three-phase four-wire, 380V |
| Current | 60A |
| Power | 40kw |
| Temperature Range(℃) | 0—399 |
| Speed range | 150meters per hour |
| Heating Time | around one hour |
| Transfer width | 1800mm |
| Number of heating tubes | 24 pieces |
| Package Size | 2800mm*1300mm*1500mm |
| Weight | 2000kg |
Why use oil conduction heating technology?
Roller sublimation printing machine commonly adopt the design of heating tube inside the tube, heating tube power generation after heat, heat will be around the radiation, the use of heat transfer oil as a medium, high heat transfer efficiency and uniformity. The machine is running, the heat transfer oil is always located in the lower part of the roller and a steady stream of heat transfer to the roller surface.
The heat-conducting oil has the property of resisting thermal cracking and chemical oxidation, has good heat-transfer efficiency, fast heat-dissipation and good thermal stability. A very high operating temperature is obtained at almost atmospheric pressure. Which can greatly reduce the high-temperature heating system operating pressure and safety requirements and improve the system and equipment reliability.
Application:
