Shanghai Color Digital Supplier Co., Ltd.
Professional Digital Textile Printing Equipment & Relevant Materials General Supplier
 |
| Place of Origin: | Shanghai , China |
| Brand Name: | SAER |
| Certification: | CE Certification |
| Model Number: | CSR2500 |
| Minimum Order Quantity: | 1 set |
|---|---|
| Packaging Details: | Non-fumigation wooden box |
| Delivery Time: | 10 work days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 1000 sets per month |
| Condition: | New | Dimensions: | 3900*1150*1750MM |
|---|---|---|---|
| Printer Gross Power: | 100w | Heater Power: | 3.5kw |
| Automatic Grade: | Automatic | Voltage: | 110V/220V |
| Color: | CMYK | Ink: | Sublimation, Pigment |
| High Light: | Wall Paper Inkjet Textile Printing Machine,Umbrella Inkjet Textile Printing Machine,Inkjet Textile Printing Machine 100w |
||

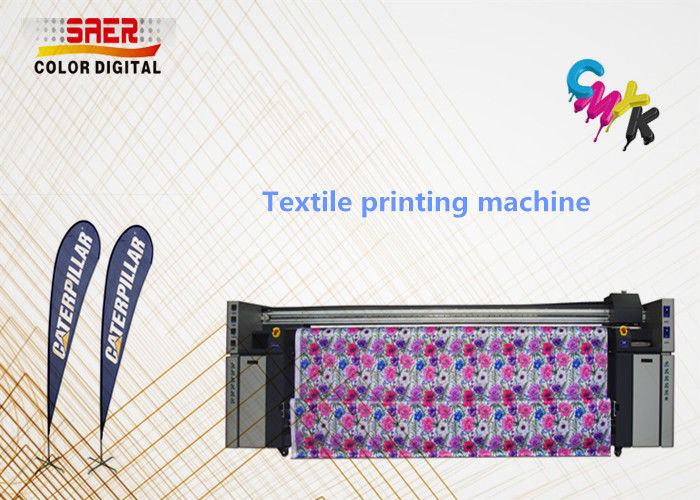

Product name:Tent/Table cover / Umbrella / Wall paper fabric printing machine
Machine working speed:
|
Printing resolution and speed
|
Resolution(dpi) speed |
| 360*1800dpi(3 pass) 65m2/h | |
| 720*1220dpi(4 pass) 45m2/h | |
| 720*1800dpi(6 pass) 35m2/h |
Description:
1．3 pieces Epson Print heads, faster speed, longer head life time. Feather printing function available, print heads correction and counterpoint are more easy.
2． Using HIWIN mute guide rail. Germany IGUS silent drag chain make your printing environment more quit
3．X axis and Y axis are using AC servo motors.
4.Intelligent print head cleaning service, supply safe and convenient print head cleaning and protection function.
5. Equipped with the feeding motor Positive and Negative transfer function, taking and feeding constant tension transmission system.
6. The unique print platform design to make the cloth always smooth in the process of printing.
7. Unique filtering lampblack system, make the picture very clean.
8. Taking up and feeding roller are inflatable roller.
9. Taking up and feeding fabric are smoothly
Specifications:
| Product Parameter | |
| Model type | CSR2500 |
| Print head | 3 pieces Epson print head |
| Ink | Sublimation ink, pigment ink |
| Number of nozzles | (400 nozzles*8lines)*3head |
| Color | Dual CMYK |
| Print head high | 1.5mm/6mm (adjustable) |
| Ink supply mode | Continuous ink supply |
| Max materials width | 2400mm |
| Max printing width | 2340mm |
| Roll outer diameter | 3 inch |
| Maximum weight for roll material | 100kg |
| Interface | USB2.0 |
| RAM | 128M |
| Printer Power | AC100-120V/AC220-240V(adjustive) 50/60HZ |
| Power | Heater 3.5kw |
| Printer 100w | |
| Temperature | 30-32℃ |
| Humidity | 40-60%(Non-condensing) |
Competitive Advantage:
Low cost and no need any transfer paper.
Applications:
Interior Home Decoration: Print on polyester fabric to make windows curtain and Tablecloth, sheets and so on.
Outside: Advertising materials to make flag, banner, act fast show and so on.
Package and delivery:
