Product Details:
|
| Application: | Home Decoration And Outdoor Advertisement | Resolution: | Maximum 1800 Dpi |
|---|---|---|---|
| Color Mode: | Cyan,Magenta,Yellow,Black | Print Head Type: | Industrial Kyocera Print Head(two Or Four Optional) |
| Rip Software: | Onyx 12 | Working Type: | Computer Directly Control Output |
| Max Speed: | 120sqm / Hour | Drop Volume: | 5PL |
| Print Speed: | 120sqm / Hour Maximum | Print Width: | 3.2m Maximum |
| Highlight: | sublimation printing machine,cmyk printing machine |
||

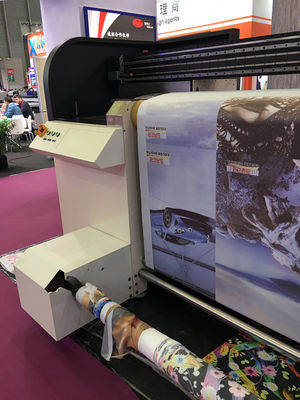

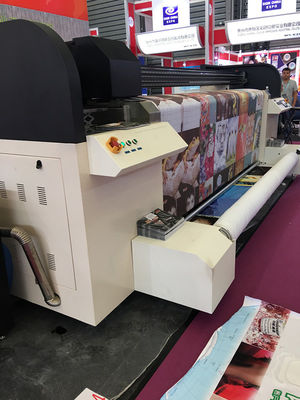

Industrial Kyocera Head Printer Directly For Polyester / Cotton Materials
Usage:
Directly use water based sublimation ink or pigment ink print on roll textile material(polyester,cotton,silk,wool etc),then through high temperature of heating to dry the wet ink,the completed fabric can directly to make every kinds of products,like wall fabric,curtain,table cover and bed sheets.also outdoor products like flag banners,tents etc,the fabric can stand sunshine and can wash,no fade.the durable time is about 2 - 3 years.
Technical Detais:
| Product Name | Digital Textile Printing Machine | |||||||
| Model | CSR3200KJ | |||||||
| Construction | 3.2m All-in-one Printing system with one Filter Fan | |||||||
| Print head Quantity | Piezo technology Industrial KYOCERA print heads,Two / four Pieces | |||||||
| Ink | Sublimation ink / Pigment ink | |||||||
| Media Type | Polyester,Cotton,Linen,Silk,Wool.polycotton etc | |||||||
| Color mode | Cyan,Magenta,Yellow,Black | |||||||
| Nozzles | (180nozzles*8lines)*2 /4 heads | |||||||
| Print head higher | Adjustable | |||||||
| Ink supply mode |
4color mode:400cc cartridge*2/color 800cc/color Continous Bulk Ink System |
|||||||
| Max meterials width | 3300mm | |||||||
| Max printing width | 3200mm | |||||||
| Printing resolution and speed | Resolution | speed | ||||||
| 600*600dpi 2pass | 120㎡/h | |||||||
| 600*600dpi 3pass | 60㎡/h | |||||||
| 600*900DPI(3 pass) | 75㎡/h | |||||||
| 600*1200dpi 4pass | 48㎡/h | |||||||
| 720*1080dpi 6pass | 30㎡/h | |||||||
| Roll owter diameter | 3 Inch | |||||||
| Image Format | JPG Tiff and other common sizes | |||||||
| Max weight for roll materials | 100kg | |||||||
| Printer Power | AC220-240V(Adaptive).50/60Hz±1Hz | |||||||
| Sublimation heater power | AC380V.30A | |||||||
| Printer Power consumtion | 1500W | |||||||
| Heater Power consumtion | 8kw | |||||||
| Environment | Temperature:20-32℃ | |||||||
| Humidity:40-60℃(Non-condensing) | ||||||||
| Weight | 2000kg | |||||||
| Rip Software | Onyx 12 | |||||||
| Compatible OS | Win 7 & Win 8 & Win XP | |||||||
Media Details:
| Breadth | Processing | Heating | Drying | Type |
| 3.2m | Roll to Roll + Auto Feeding + Auto Roll Up | Pre & Post Media Heating | Infrared Drying | Polyester,Cotton etc |
Onyx Rip Software:
1. Easy to complete the Photos / vector data,replacement of RGB / CMYK,and can easily to achieve color change.
2.Colorful color replacement function can easily reproduce the required color.
Available Ink and Material:
1) Sublimation Ink (water based): mainly used in polyester fabric.
Completed fabric can use to make all kinds of flags,banner shows and for home decoration
2) Reactive Ink:For cotton,linen and silk etc.
After printing and heating,the materials can use to make clothes and scarf.
3) Pigment Ink:For all kinds of textile fabrics.
Printed Samples:
 |
|
|
Specifications:
1. Low cost
2. High productivity
3. Dye Sublimation system
4. Directly print on textile material
Description:
Speed and precision perfectly reflected
With 1800 DPI highest precision and 120 sqm/hour fastest speed
Adopt high speed industrial KYOCERA printhead
X-ais use liner motion motor and magnetic grating
Y-axis use Fuji AC servo motor
Applications:
Luxurious fashion design for professional high class customer,specialized in large format soft advertising and home textile of bed sheet,curtain,wall-paper direct printing.
|
|
|
After Sales Service:
1. With one year warranty and lifelong technical support.
2. Offer Video and operation manul,and the professional technical staff online guidance.
3. Guarantee prompt warranty service for main parts repairment and replacement by international courier
How To Order:
Inquriy-------Quotation-------Order-------Production-------Quality Control-------Packing-------Shipping-------Delivery
