Product Details:
|
| Product Name: | Cotton Fabric Printing Machine | Rip Software: | Onyx |
|---|---|---|---|
| Color Management: | Superior ICC Profile | Printing Interface: | Computer Control The Output Directly |
| Media Handle: | Automatic Feeder,automatic Take Up | Media Processing: | Roll To Roll + Auto Feeding + Auto Roll Up |
| Media Heating: | Pre-heating & Post Color Fixation | Ink Clor: | Cyan,Magenta,Yellow,Black |
| Power Supply: | Automatic Lift Cleaningstructure | Max Printing Resolution: | 1440dpi |
| Highlight: | sublimation printing machine,cmyk printing machine |
||

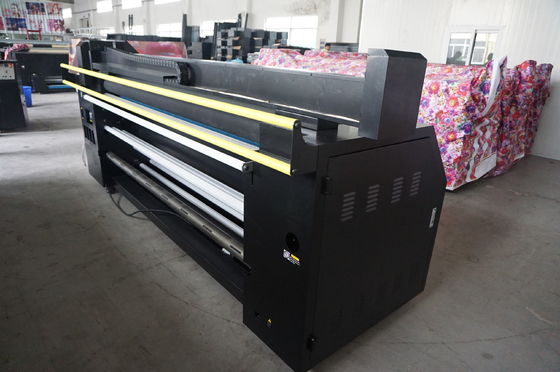

Fabric Machinery Digital High Speed Textile Sublimation Printing Machines
Product Features:
1 Economical textile printer ideal for producing soft signage.
2 Directly print on different type of fabrics.
3 Standard 2.2m wide, print up to 40m2/h for high-volume production.
4 Double 4 colors ink ensure rich, vibrant colors.
5 Rigid construction for durable performance
6 Refillable ink cartridge reducing production cost.
Print on: Flag cloth,polyester,canvas,oxford,the peach skin,satin,pattern-book
Technology advantage:
Can make doubleside flags, high-definition colourful banners cloth printing,personal pattern and so on.
It can make small quantity, personal, many varieties printing,no quantity limit. Spray printing picture gorgeous and realistic, can feel colour levels strongly. Fabric will be colorful, good at penetration, no color difference in both side through our machine.
Technical Details:
| Brand Name | SAER |
|
Model |
CSR 2200 |
|
Printer head technology |
Piezo technology |
| Print Head | Epson DX5 |
|
Color mode |
Double four color(C,M,Y,K) |
|
Nozzles |
(180 nozzles x 8 lines ) x2 heads |
|
Printer head higher |
1.5mm / 6mm ( Adjustable ) |
|
Ink supply model |
Continuous ink supply |
|
Maximum materials width |
2300mm |
|
Maximum printing width |
2200mm |
|
Roll diameter |
3 Inch |
|
Maximum weight for roll material |
100kg |
|
Interface |
USB 2.0 |
|
RAM |
128M |
|
Print Power |
AC100-120V./AC220-240V(Adaptive) 50/60Hz |
|
Power consumption |
Direct dye sublimation heater 3500W |
|
Printer 100w |
|
|
Temperature |
20-32°C |
|
Humidity |
40-60% Non-condensing |
| Available Media | Polyester,cotton,silk,linen,textile material |
| Media Handle | Automatic feeder,automatic take up |
| File Format |
TIFF,JPEG,PDFand other common image formats Control software Chinese version and English Version |
|
Weight |
Net Weight : 764kg Gross Weight : 886kg |
| Rip Software | Onyx |
| Working Process | Windows XP / Windows 7 |
Printing Resolution And Speed:
| Resolution | speed |
| 720 x 360dpi (2pass) | 40m²/h |
| 360 x 1080dpi(3pass) | 32m²/h |
| 720 x 720dpi(4pass) | 22m²/h |
| 720 x 1080dpi(6pass) | 18 m²/h |
| 720 x 1440dpi(8pass) |
12 m²/h |
Available Ink and Material:
1) Sublimation Ink (water based): mainly used in polyester fabric.
Completed fabric can use to make all kinds of flags,banner shows and for home decoration
2) Reactive Ink:For cotton,linen and silk etc.
After printing and heating,the materials can use to make clothes and scarf.
3) Pigment Ink:For all kinds of textile fabrics.
Technical superiority；
1.Width optional: you can choose 2.2 meter or 3.2 meter.
2.Enlarge picture design: can choose enlarge picture funtion, smooth and no wrinkles in continuous printing.
3.High-precision printing: use original EPSON5 / EPSON7 generation print heads, pictures are more exquisite.
4.Thermal energy color: when heavy machine continuously work, mechanical park is still stable, anti-wrinkle, adjustable speed, automatic synchronous Lstacking.
Products can be made:
 |
|
|
After Sales Service:
1. One year warranty
2. Provide 24 hours online service.
when you first time operate the machine,our engineer will be online to guide you how to operate machine.
When your machine gets any problem, our engineer will help you to solve it through remote control.
3. If necessary,we can send you new spare part.
Application:
Home Decoration:Print on polyester fabric to make windows curtain and Table cloth,sheets and so on also can make Wall Stickers.
Outside Using :Advertising materials to make flag,pop up banner,tear drops banners,and so on.
Machine Details:
