Shanghai Color Digital Supplier Co., Ltd.
Professional Digital Textile Printing Equipment & Relevant Materials General Supplier
 |
| Place of Origin: | China |
| Brand Name: | SEAR |
| Certification: | CE |
| Model Number: | CSR 2200 |
| Minimum Order Quantity: | One set |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Wooden Case |
| Delivery Time: | Within 5 Working days after the payment arrived |
| Payment Terms: | T/T |
| Supply Ability: | 1000 sets / month |
| Printhead: | 2PCS Epson DX5 Piezo Head | Print Speed: | 23 Sqm / H In 4 Pass |
|---|---|---|---|
| Print Material: | Sublimation Polyester,cotton,silk Etc | Use Ink: | Dye Sublimation Ink,reactive Ink,pigment Ink |
| Usage: | Indoor And Outdoor Printer | Work Way: | Roll To Roll Directly Print |
| Voltage: | 220V-240V / 50 HZ | Compatible OS: | Win XP & Win 7 |
| Rip Software: | Onyx | Ink Supply Mode: | Continous Ink Supply |
| Highlight: | cmyk printing machine,sublimation printing machine |
||

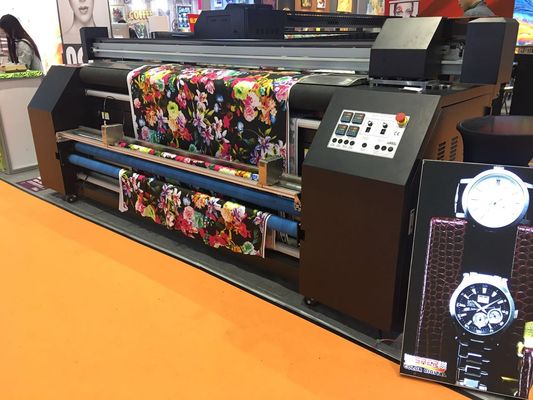

Digital Inkjet Roll To Roll Textile Printing Machine
Contents:
One all-in-one printer (print and heat together,can not seperate & One filter fan for collect waste air
Usage:
Serve solutions for small production, sample making ,designer ideas and training areas .
Can be used indoor and outdoor,friendly to environment.
Product Feature
1. This Dye Sublimation Textile Printer Machine For POLYESTER and Full cotton . It can Direct Printing on Sublimation Polyester. It is also can print full cotton. If you print cotton fabirc . this machine have to use Pigment Ink.
2. It Adopt Newsest Epson DX5 Printhead With High Precison.
3. This Textile Printer Machine For Flag Use Dye Sublimation Ink . No Smell, no pollute.
4. This machine with print and heat function . save cost and place.
5. It is direct print image into Fabric .
Product Technical Data
|
Product Parameter |
||||||||
| Model | CSR 2200 | |||||||
| Print head | Piezo texhnology,Epson 5th printer head | |||||||
| Ink | Sublimation ink,Reactive ink,Reactive ink | |||||||
| Color mode | 4*4 color | |||||||
| Nozzles | (180nozzles*8lines)* 2heads | |||||||
| Print head higher | Adjustable | |||||||
| Ink supply mode | Continuous ink supply | |||||||
| Max meterials width | 2200mm | |||||||
| Max printing width | 2100mm | |||||||
| Printing resolution and speed | Resolution | speed | ||||||
| 720*360dpi 2pass | 40sqm/h | |||||||
| 360*1080dpi 3pass | 32sqm/h | |||||||
| 720*720dpi 4pass | 22sqm/h | |||||||
| 720*1080dpi 6pass | 18sqm/h | |||||||
| 720*1440dpi 8pass | 12sqm/h | |||||||
| Roll owter diameter | 3 Inch | |||||||
| Max weight for roll materials | 100kg | |||||||
| Interface | USB 2.0/HIUSB | |||||||
| RAM | 128M | |||||||
| Printer with heater power | AC220V 50/60Hz | |||||||
| Power consumtion | 6.5KW | |||||||
| Environment | Temperature:20-32℃ | |||||||
| Humidity:40-60℃(Non-condensing) | ||||||||
| weight | 780kg | |||||||
Specifications:
Save Money No need to use transfer paper
Save Time No need to perform heat transfer step
Save Space No need to keep a workplace for a heat transfer
Product Features:
characteristics:
1. Low cost: About 2 degree electricity cost per hour with non-stop running
2. High productivity:40m2 / hour of the speed
3. Dye Sublimation system: print onto fabric with sublimation ink.
4. Directly print on textile: no need any transfer paper.
5. Good after sales service: 1 year maintenance period.
Produtc Service :
1. This machine has One year warranty .
2. We Support Oversea technical service and with all life techincal support.
How To Order:
Inquriy-------Quotation-------Order-------Production-------Quality Control-------Packing-------Shipping-------Delivery
