Product Details:
|
| Product Name: | Digital Textile Printer | Suitable Fabric Type: | Knitted Or Woven Cotton,linen,silk,wool,chemical Fiber,nylon.oxford Etc |
|---|---|---|---|
| Type: | Inkjet Printer | Print Head: | Epson DX5 |
| Ink Supply Mode: | Continuous Ink Supply | Application: | Indoor & Outdoor |
| Max Resolution: | 1400dpi | Condition: | New |
| Color Mode: | CMYK | Max Materials Width: | 2.4m |
| Highlight: | fabric printing equipment,inkjet fabric printing machine |
||
Quick Detail:

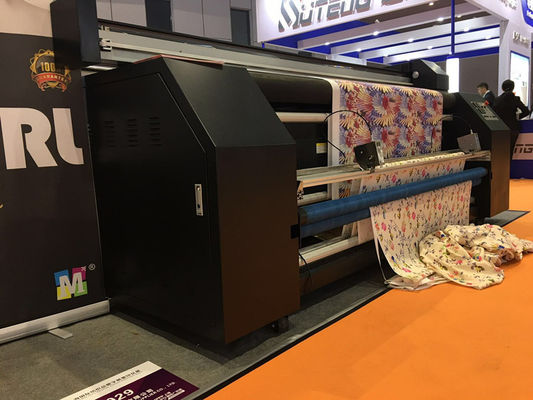

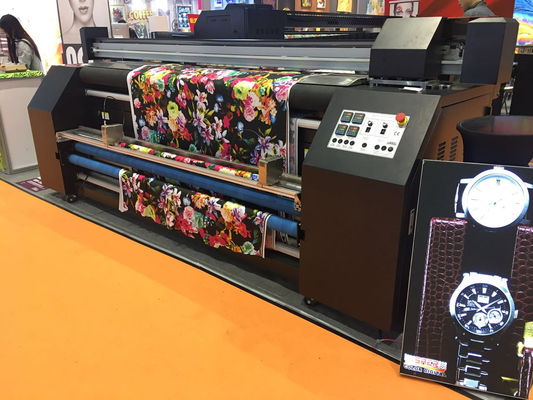

240cm All-in-one Printer system(with the function of print and heat,can not seperate to two individual parts)and one filter fan,one stop solution.
Description:
1· Electro thermal Heating
2· Intelligent PID Temperature Control
3· Digital Tension Control
4· Feeding and Taking up Are synchronous
5· Vacuum Fan Delivery Is Controllable
6· Quick Tail Gas Treatment
7· Convenient to Maintain
8· Easy to Set up and Operate
9. Easy to load the media in and out oven during your machine working
10. Easy to open the caver to clean inside of oven
11. Special clutch to control the feeding up system working or stop , it’s easy for you loading the roll materials.
12. Adopting the most advanced thermal energy technology low power consumption, saves electricity and conserve energy costs.
Applications:
Printed directly on Oxford fabric, printed fabric can be used to make shift tents
Specifications:
| Product Model | CSR 2200 |
| Printhead | Piezo technology, Two Epson DX5 printer heads |
| Ink | Environmental Sublimation ink, Pigment Ink optional |
| Color | Dual KCMY |
| Printing Media | Soft roll to roll |
| Nozzles | (180 nozzles x 8 lines ) x2 heads |
| Printer head higher | 15mm / 6mm ( Adjustable ) |
| Ink supply model | Continuous ink supply |
| Ink Volume | 2000ML Volume ink,automatic ink detector |
| Max materials width | 2400mm |
| printing width | Maximum 220 cm |
|
Print mode and speed |
Mode speed |
| Draft 2pass 40m² / h 720 * 360dpi | |
| 3pass 32m² / h 360 * 1080dpi | |
| Standard 4pass 22m² / h 720 * 720dpi | |
| 6pass 18 m² / h 720 * 1080dpi | |
| High Quality 8pass 12 m² / h 720 * 1440dpi | |
| Image Data Format | TIFF,JPEG |
| Rip Software | ONYX |
| Roll diameter | 3 Inch |
| Maximum weight for roll material | 100kg |
| Interface | USB 2.0 |
| RAM | 128M |
| Printer power | AC220-240V / AC220-240 Adaptive 50/60Hz |
| Sublimation machine | AC220-240V. 16A. 50/60Hz |
| Power consumption | Direct dye sublimation heater 3500w |
| Printer 5500w | |
| Temperature | 20-32°C(68 – 89.6 ℉) |
| Humidity | 40-60% RH |
| Packing Dimension(L * W * H) |
Printer system: 3550*1111*1510(MM) 5.95CBM Filter: 620X550X1050(MM) 0.36CBM |
| Weight |
Net Weight : Printer:788kg Filter:55kg Gross Weight : Printer: 986kg Filter:72kg |
Competitive Advantage:
• Suitable for small lot, Personality, Diversity Printing, Without Limit Of Quantity.
• The printed image color is bright and vivid with nice color gamut.
• High speed
• It is simple and leave out heat transfer process, one person can operates with high efficency and short time.
• Low cost and no need of any kind transfer paper, liner breaking the highest costs performance
Specifications:
Save Money No need to use transfer paper
Save Time No need to perform heat transfer step
Save Space No need to keep a workplace for a heat transfer
Produtc Service :
1. This machine has One year warranty .
2. We Support Oversea technical service and with all life techincal support.
How To Order:
Inquriy-------Quotation-------Order-------Production-------Quality Control-------Packing-------Shipping-------Delivery
|
|
|
