Product Details:
|
| Type: | Inkjet Printer | Usage: | Flag / Textile Printing |
|---|---|---|---|
| Max Materials Width: | 1.8m | Max Resolution: | 1440dpi |
| Print Head: | Dual Epson DX7 | Include: | One Mimaki TS 34-1800A Printer And One 1.8m Heater With Filter |
| Compatible OS: | Win XP&Win 7 | Plate Type: | Roll To Roll Printing Machine |
| Color Mode: | Dual CMYK | Material: | Polyester,Cotton,Silk And Wool Fabric |
| Ink: | Sublimation,Reactive,Pigment Ink | ||
| Highlight: | banner printing machine,textile digital printing machine |
||

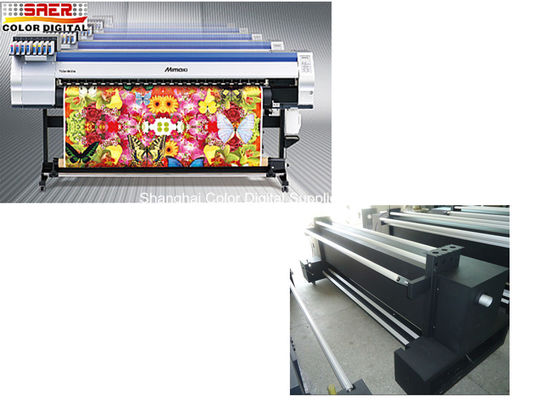

High Speed 1440dpi Epson Head Roll To Roll Flag Printing Machine
Description:
1. Double Epson DX7 Print heads, faster speed, longer head life time. Feather printing funcation available, print heads correction and counterpoint are more easy.
2. Intelligent print head cleaning service, supplys safe and convenient print head cleaning and protection function.
3. Equipped with the feeding motor Positive and Negative transfer function, taking and feeding constant tension transmission system.
4. The unique print platform design to make the cloth always smooth in the process of printing.
5. Unique filtering lampblack system, make the picture very clean.
6. Taking up and feeding roller are inflatable roller.
7. Taking up and feeding fabric are smoothly
Specification:
| Model | CSR 1900(Include Mimaki TS34-1800A Printer and SR1800 Heater) | ||
| Print head | Piezo technology,Epson DX7 printer head | ||
| Ink | Sublimation ink,Reactive ink,pigment ink | ||
| Color mode | Dual KCMY | ||
| Nozzles | 1440nozzles x 2heads | ||
| Print head higher | 2/3mm,3/4mm,4/5mm(Optional) | ||
| Max materials width | 1900mm | ||
| Max printing width | 1800mm | ||
| Printing resolution and speed | Resolution(dpi) | speed | |
| 360x360(1pass) | 91m2/h | ||
| 540x720(4pass) | 32m2/h | ||
| 540x1080(6pass) | 22.2m2/h | ||
| 720x1440(8pass) | 13.5m2/h | ||
| Media | Size | 210mm~1910mm | |
| Thickness | 1.0mm | ||
| Roll inside diameter | 2 Inch/3 Inch | ||
| Roll owter diameter | 180mm | ||
| Maximum weight for roll material | 25Kg | ||
| Rip Software | RasterLinkPro 5 | ||
| Interface | USB2.0 | ||
| Printer power | AC100-120V/AC220-240V(Adaptive).50/60Hz±1Hz | ||
| Sublimation machine | AC220-240V.16A.50/60Hz±1Hz | ||
| Power consumtion | Direct dye sublimation heater 3800W | ||
| Printer 3600W | |||
| Environment | Temperature:20-35°C,Humidity:35-65% | ||
| Weight |
600KG |
||
Advantages:
1. Suitable for small lot, Personality, Diversity Printing, Without Limit Of Quantity.
2. The printed image color is bright and vivid with nice color gamut.
3. Rapid speed and various printer to choose
4. It is simple and leave out heat transfer process, one person can operates with high efficient and short time.
5. Low cost and no need of any kind transfer paper, liner breaking the highest costs performance
Printing Samples:

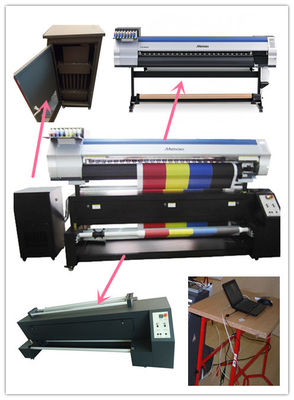

Machine Detail
Applications:
Textile,flag,poster,banner, tablecloth,wall pictures,interior decoration, indoor and outdoor printing etc.
After Sales Service:
1. With one year warranty and lifelong technical support.
2. Offer Video and operation manual, and the professional technical staff online guidance.
3. Guarantee prompt warranty service for main parts repairment and replacement by international courier
