Product Details:
|
| Product Name: | Direct Fabric Plotter | Application: | Indoor & Outdoor Flag Making |
|---|---|---|---|
| Max Resolution: | 1440 DPI | Color Mode: | Dual CMYK |
| Voltage: | 220V | Gross Power: | 5.5KW |
| Print Head Type: | Three Epson 4720 Print Heads | Plate Type: | Roll To Roll Printing Machine |
| Rip Software: | Maintop 5.3 Rip Software Or Neostampa 8 Optional | Compatible OS: | Win XP & Win 7 |
| Printing Width: | 2.2m | Ink: | Sublimation,Reactive And Pigment Ink |
| Printing Interface: | Connect With Computer | ||
| Highlight: | large format printers,fabric printer machine,large format plotter |
||

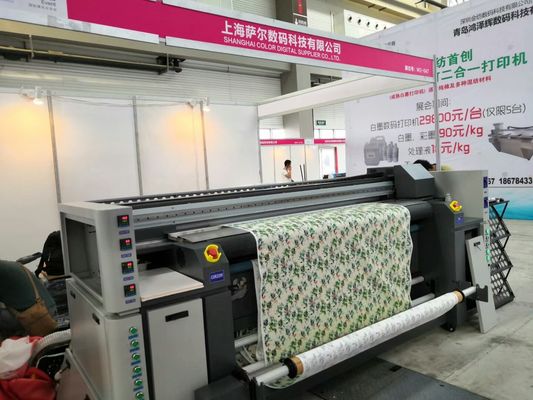

Large Format 2200mm Fabric Plotter With Three Epson 4720 Print Heads
Specifications:
|
Specification |
|
|
Model |
CSR2200 |
|
Print head |
Piezo technology, Epson DX7 printer head |
|
Ink |
Sublimation ink,Reactive Ink,Pigment Ink |
|
Color model |
Dual KCMY |
|
Nozzles |
( 180 nozzles x 8 lines ) x2 heads |
|
Printer head higher |
15mm/6mm ( adjustable ) |
|
Ink supply model |
Continuous ink supply |
|
Max materials width |
2300mm |
|
Max printing width |
2200mm |
|
Roll diameter |
3 Inch |
|
Maximum weight for roll material |
100kg |
|
Interface |
USB 2.0 |
|
RAM |
1.2M |
|
Printer power |
AC220-240V./AC220-240Adaptive 50/60Hz |
|
Sublimation machine power |
AC220-240V. 16A. 50/60Hz |
|
Power consumption |
Direct dye sublimation heater 3200W |
|
Printer 5500w |
|
|
Temperature |
20-32°C |
|
Humidity |
40-60% Non-condensing |
|
Weight |
Net 646kg Gross 886kg |
Printing Resolution And Speed:
Resolution(DPI) Speed
720*360dpi(2 pass) 40m²/h
360*1080dpi(3 pass) 32m²/h
720*720dpi(4 pass) 22m²/h
720*1080dpi(6 pass) 18m²/h
720*1440dpi(8 pass) 12m²/h
Advantages:
1. Direct textile sublimation printer can directly print on polyster fabric,no need any transfer paper.
2.The printed fabic after sublimation heater process can directly make banner flag etc,no fade.
3.The machine has an easy learing curre,you will be able to use iy perfectly within 3 days.
Description:
1. Three Epson 4720 Print heads,faster speed,longer head life time.Feather printing funcation available,print heads correction and counterpoint are more easy.
2. Using HIWIN mute guide rail.Germany IGUS silent drag chain make your printing environment more quiter
3. X axis and Y axis are using AC servo motors.
4. Intelligent print head cleaning service,supplys safe and convenient print head cleaning and protection function.
5. Equipped with the feeding motor Positive and Negative transfer function,taking and feeding constant tension transmission syst.
6. The unique print platform design to make the cloth always smooth in the process of printing.
7. Unique filtering lampblack system,make the picture very clean.
8. Taking up and feeding roller are inflatable roller.
9. Taking up and feeding fabric are smoothly
10.Low cost and no need any transfer paper.
Applications:
Interior Home Decoration:Print on polyster fabric to make windows curtain and Tablecloth,sheets and so on.

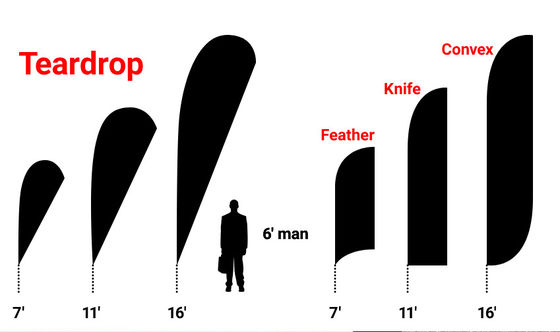

Outside:Advertising materials to make flag,banner,act fast show and so on.
Printing Samples:
After Sales Service:
1. With one year warranty and lifelong technical support.
2. Offer Video and operation manul,and the professional technical staff online guidance.
3. Guarantee prompt warranty service for main parts repairment and replacement by international courier
