Product Details:
|
| Color Mode: | Dual CMYK | Print Head: | Epson4720 *3 |
|---|---|---|---|
| Max Resolution And Speed: | 360x1800dpi （3pass） 65 Sqm /h | Automatic Grade: | Automatic |
| Heater Power: | 6kw | Suitable Fabric Type: | Woven Cotton,linen,silk,nylon And Oxford Etc |
| Dimensions: | 4.56X1.18X1.56m+62*55*105cm | Voltage: | 110V/220V |
| Media Processing: | Roll To Roll + Auto Feeding And Taking Up | ||
| Highlight: | sublimation printing machine,digital textile printing equipment,cmyk printing machine |
||

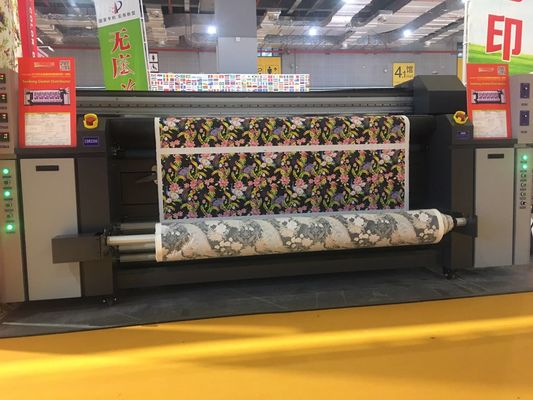

Product name: Digital Inkjet Textile Printing Machine Low cost with High speed for beach flag printing
Specifications:
| Product Parameter | |
| Model type | CSR3200 |
| Print head | 3 pieces Epson 4720 |
| Ink | Sublimation ink, pigment ink |
| Number of nozzles | (400 nozzles*8lines)*3head |
| Color | Dual CMYK |
| Print head high | 1.5mm/6mm (adjustable) |
| Ink supply mode | Continuous ink supply |
| Max materials width | 3300mm |
| Max printing width | 320000mm |
|
Printing resolution and speed
|
Resolution(dpi) speed |
| 360*1800dpi(3 pass) 65m2/h | |
| 720*1220dpi(4 pass) 45m2/h | |
| 720*1800dpi(6 pass) 35m2/h | |
| Roll outer diameter | 3 inch |
| Maximum weight for roll material | 100kg |
| Interface | USB2.0 |
| RAM | 128M |
| Printer Power | AC100-120V/AC220-240V(adjustive) 50/60HZ |
| Power | Heater 3.5kw |
| Printer 100w | |
| Temperature | 30-32℃ |
| Humidity | 40-60%(Non-condensing) |
Technical parametre:
1. Three Epson 4720 Print heads, high speed and longer life time. Feather printing function available. Intelligent print head cleaning service, supply safe and convenient print head cleaning and protection function.
2.Using HIWIN mute guide rail. Germany IGUS silent drag chain make your printing environment more quit ．
3. X axis and Y axis are using AC servo motors.
Product Features:
1.Equipped with the feeding motor Positive and Negative transfer function, taking and feeding constant tension transmission system.
2. The unique print platform design to make the cloth always smooth in the process of printing.
3. Unique filtering lampblack system, make the picture very clean.
4. Taking up and feeding roller are inflatable roller.
5. Taking up and feeding fabric are smoothly
Application :

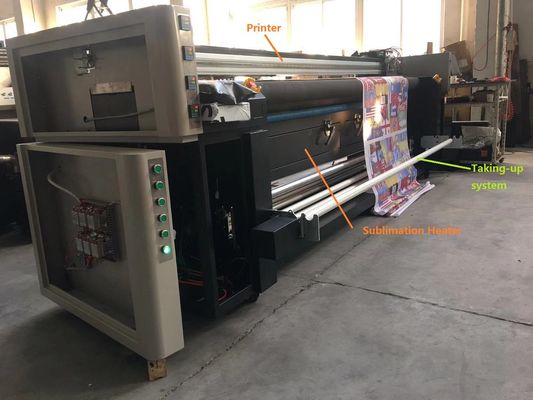

Machine details:
