Product Details:
|
| Usage: | T-shirt Printer | Printhead: | Ricoh GH2220 |
|---|---|---|---|
| Voltage: | 220V/110V | Ink Channel: | 8 Color |
| Ink: | Pigment Ink | Condition: | New |
| Automatic Grade: | Automatic | After -sales Service: | Engineers Available To Service Machinery Overseas |
| Highlight: | t shirt screen printing machine,garment printing machine |
||

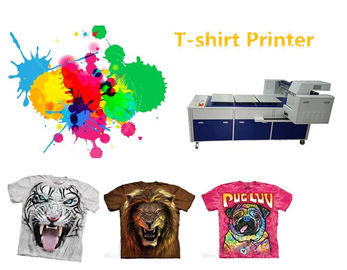

Product name: Multifunctional t shirt printing machine and A3 size t-shirt printing machine
Product Features:
1. printing surface can print 600*1200.
2.head can lift by 6 cm.Can replace by any size table
3.The spacing between printing nozzle and cloth can maintain a height of 10mm.With the addition of a head-mounted collider, the spacing can greatly reduce the risk of rubbing against the head of the nozzle
4.with high viscosity of ink resin, high fastness of printed pattern.The ink is smooth and not easy to plug
5. can be printed in cycles, saving the waiting time of manual laying.
6.Printing speed of output A3 format printing time is 1 minute 50.
7. black cloth background color gradient layer is good, do not show white color.Ensure the breathability of fabric after printing.
8. White ink cycle can reduce white ink precipitation, prevent the bubbles in the ink from affecting the printing line.
9.Double guide rail machine is more stable and firm.art is extremely sharp and clear.
Details of machine
Parameters:
| Items | Technical Parameters | ||
| Model |
CSR2200(R) |
||
| Print head | Print head | Ricoh GH2220 head | |
| QTY | 8 pieces | ||
| Ink | Color | CMYK+WWWW/CMYK+FMFY+WW/CMYK+OR BL+WW | |
| Ink type | Import pigment ink, good fastness,bright color | ||
| Ink supply | Negative pressure supply ink | ||
| Speed | Production models | A3 size 4pass | Dark color fabric 1min.14s |
| Light color fabric 58s | |||
| precision | A3 size 6pass | Dark color fabric 1min.52s | |
| Light color fabric 1min.27s | |||
| Tray | Standard configuration | Optional configuration | |
| Tray size | 380*480mm | 600*1200mm | |
| Tray Numbers | 3 | 1 | |
| Interface | USB | ||
| Computer system | CPU>2GHz, 64 bit CPU, RAM>8G, Windows7,Windows10 | ||
| Working environment | temperature:20℃-30℃, humidity:55％-70％ | ||
| Power supply | 210-230VAC 50/60 HZ 16A | ||
| Software | Rip software | ||
| Machine Dimension | 2065*1705*1240mm | ||
| Machine Weight | 260kg | ||
1.Judge if the printer is of high resolution. Print an image on a pvc sheet with high resolution once. After the image is printed, put the pvc sheet on the flatbed printer and print again. If the image is very clear after
twice printing, then the printer is of high resolution.
2.Get to know if the company has good aftersale service? If you want to use the printer skillfully, you have to choose a company with good aftersale service. If you meet problems, the company must have technicians to give you technical supports.
IF NOT YOUR PRINTER WILL STAY IN YOUR WAREHOUSE SLEEPING THERE.
